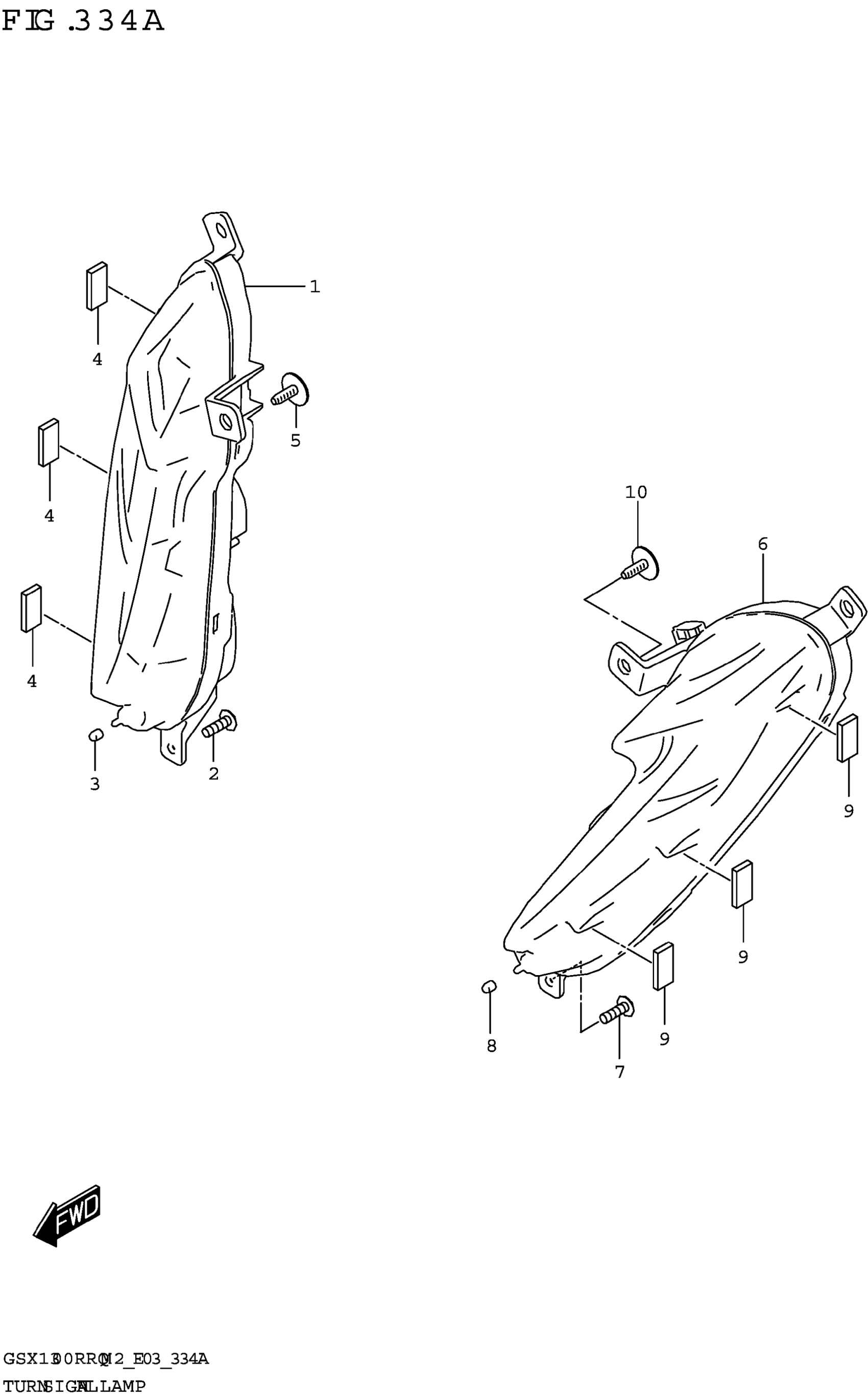

Suzuki GSX1300RRQM2 (2022) TURNSIGNAL LAMP Diagram

#

Description

Price

1

LAMP ASSY,FRONT TURNSIGNAL,R This part replaces 35601-10L00.

35601-10L02

$247.45

2

SCREW

03541-0516A

$1.41

3

CUSHION,FUEL TANK COVER

44294-43H11

$2.39

4

PAD (8X20X2)

73415-70A00

$1.57

5

SCREW (5X15)

09136-05062

$2.25

6

LAMP ASSY,FRONT TURNSIGNAL,L This part replaces 35602-10L00.

35602-10L01

$237.15

7

SCREW

03541-0516A

$1.41

8

CUSHION,FUEL TANK COVER

44294-43H11

$2.39

9

PAD (8X20X2)

73415-70A00

$1.57

10

SCREW (5X15)

09136-05062

$2.25
