2012 Suzuki GSX1300RL2 AIR Intake Pipe Diagram

← All diagrams

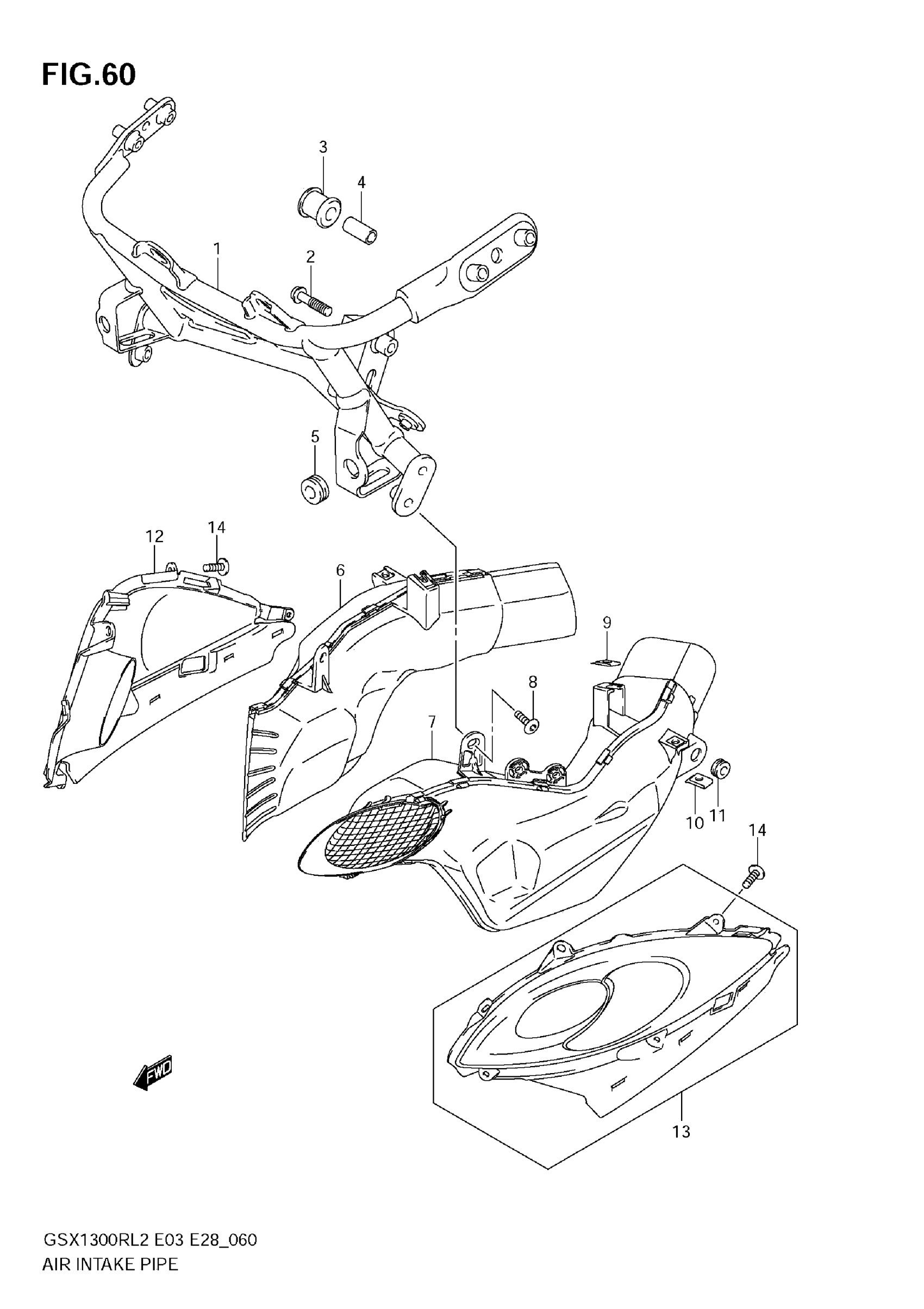

Find the part on the AIR Intake Pipe diagram for your 2012 Suzuki GSX1300RL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki GSX1300RL2 AIR Intake Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACE, COWLING This part replaces 94510-15H00.

94510-15H01

1
Out of stock

2

BOLT (8X40)

09103-08367

2
Out of stock

3

CUSHION, UPPER

94541-41C00

1
Out of stock

4

SPACER (8.6X12.2X26.5)

09180-08215

1
Out of stock

5

CUSHION

09320-08028

2
Out of stock

6

PIPE, INTAKE RH

94420-15H01

1
Out of stock

7

PIPE, INTAKE LH

94430-15H01

1
Out of stock

8

SCREW

94423-15H00

2
Out of stock

9

NUT COWL

94484-24F00

2

$3.95

In stock

10

NUT

09148-05038

2
Out of stock

11

CUSHION

09320-08028

2
Out of stock

12

COVER,INTAKE,R This part replaces 94671-15H00-YVB.

94671-15H01-YVB

1
Out of stock

12

COVER, INTAKE RH (RED)

94671-15H00-YHL

1
Out of stock

12

COVER,INTAKE,R This part replaces 94671-15H00-YWW.

94671-15H01-YWW

1
Out of stock

13

COVER,INTAKE,L This part replaces 94681-15H00-YVB.

94681-15H01-YVB

1
Out of stock

13

COVER, INTAKE LH (RED)

94681-15H00-YHL

1
Out of stock

13

COVER,INTAKE,L This part replaces 94681-15H00-YWW.

94681-15H01-YWW

1
Out of stock

14

SCREW (5X16)

09132-05053

8
Out of stock
