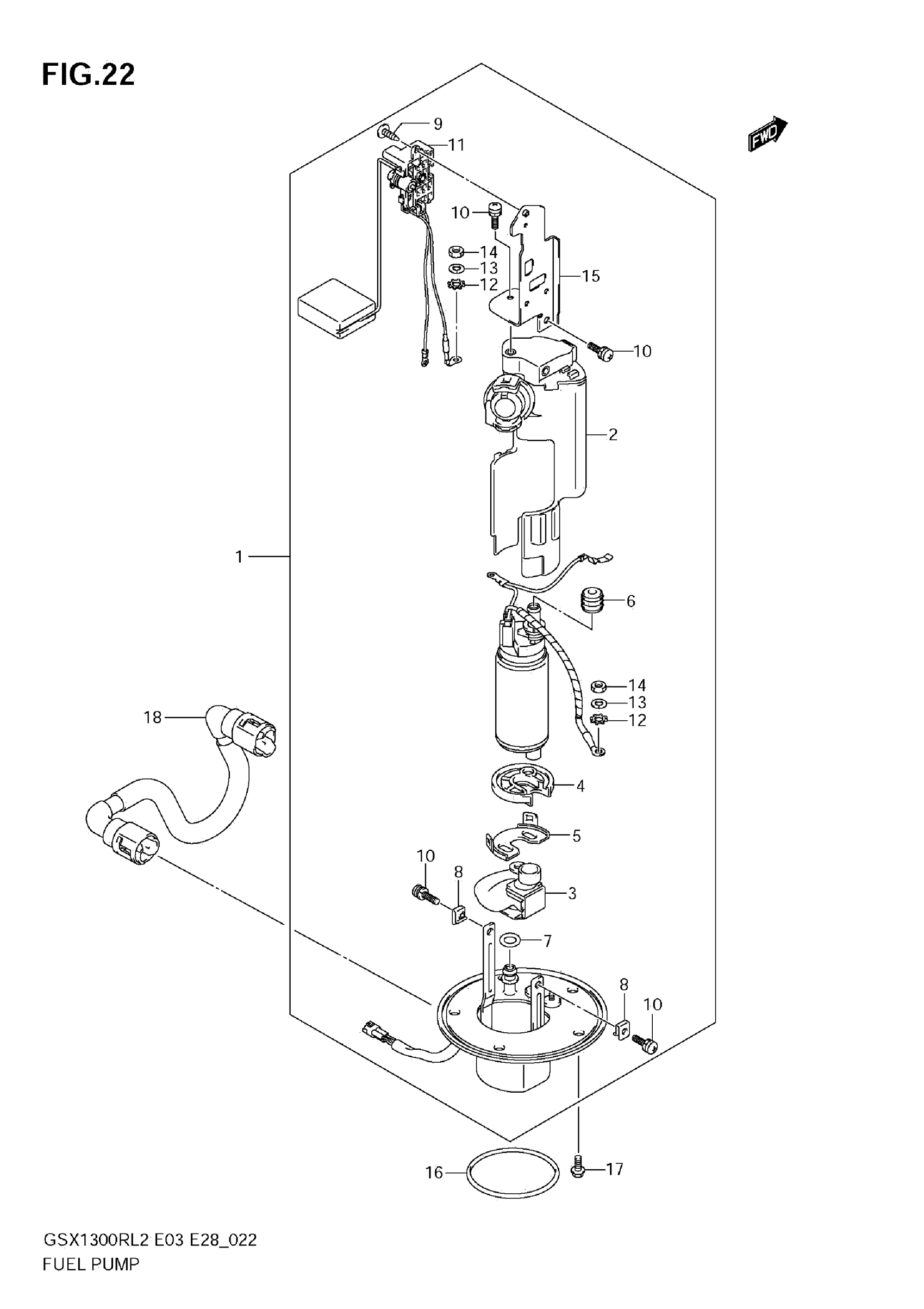

Suzuki GSX1300RL2 (2012) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY, FUEL

15100-15H00

$1,261.95

2

FILTER ASSY, FUEL

15410-41G00

$461.25

3

STRAINER, FUEL PUMP

15420-44G00

$80.78

4

CUSHION, FUEL PUMP

15111-35F00

$8.71

5

HOLDER, FUEL PUMP

15112-42F00

$17.52

6

BUSH, FUEL PUMP

15114-35F00

$14.34

7

O RING

15113-35F00

$8.15

8

NUT

15115-35F00

$9.75

9

SCREW

15116-06G10

$8.13

10

SCREW

15116-35F10

$5.95

11

GAUGE ASSY, FUEL LEVEL

34810-15H00

$240.32

12

WASHER

15171-35F00

$8.13

13

SPRING WASHER

15172-35F00

$8.13

14

NUT

15173-35F00

Unavailable

15

BRACKET, FUEL GAUGE

15181-15H00

Unavailable

16

O-RING

15201-35F00

$25.27

17

BOLT

07120-0612A

$2.50

18

HOSE, FUEL

15810-15H01

$59.75
