2012 Suzuki GSX1300RL2 2ND AIR Diagram

← All diagrams

Find the part on the 2ND AIR diagram for your 2012 Suzuki GSX1300RL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

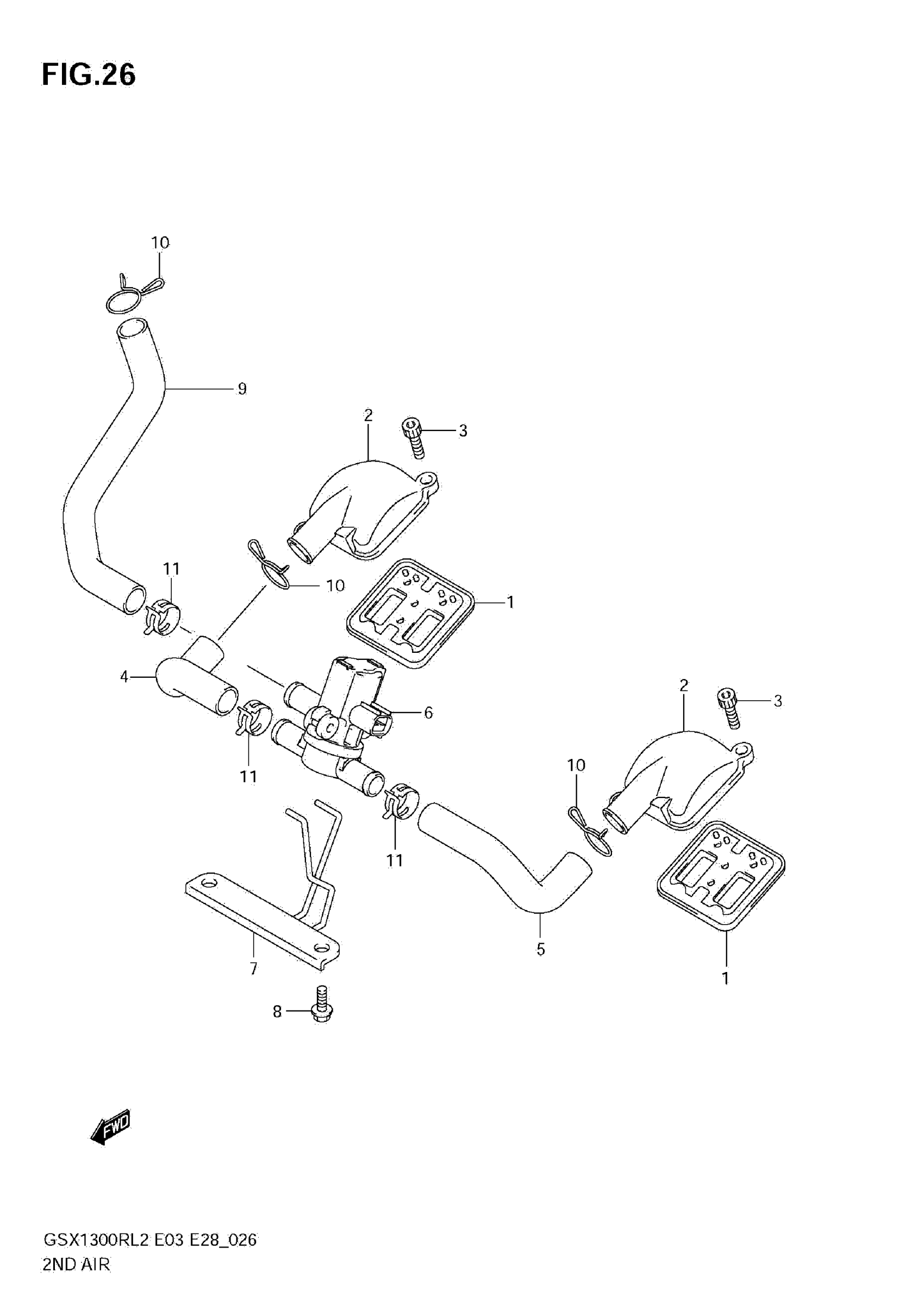

2012 Suzuki GSX1300RL2 2ND AIR Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE ASSY, 2ND AIR REED

18450-35F30

2
Out of stock

2

COVER

18531-15H00

2
Out of stock

3

BOLT (6X16)

09106-06073

4
Out of stock

4

HOSE,2ND AIR VALVE,R

18461-15H00

1
Out of stock

5

HOSE,2ND AIR VALVE,L

18471-15H00

1
Out of stock

6

VALVE ASSY,AIR CUT This part replaces 18510-29G30.

18510-29G31

1
Out of stock

7

BRACKET,2ND AIR VALVE

18610-15H00

1
Out of stock

8

BOLT (6X16)

09103-06283

2
Out of stock

9

HOSE, 2ND AIR CLEANER

18711-15H00

1
Out of stock

10

CLIP

09401-17201

3
Out of stock

11

CLIP

09401-17401

3
Out of stock
