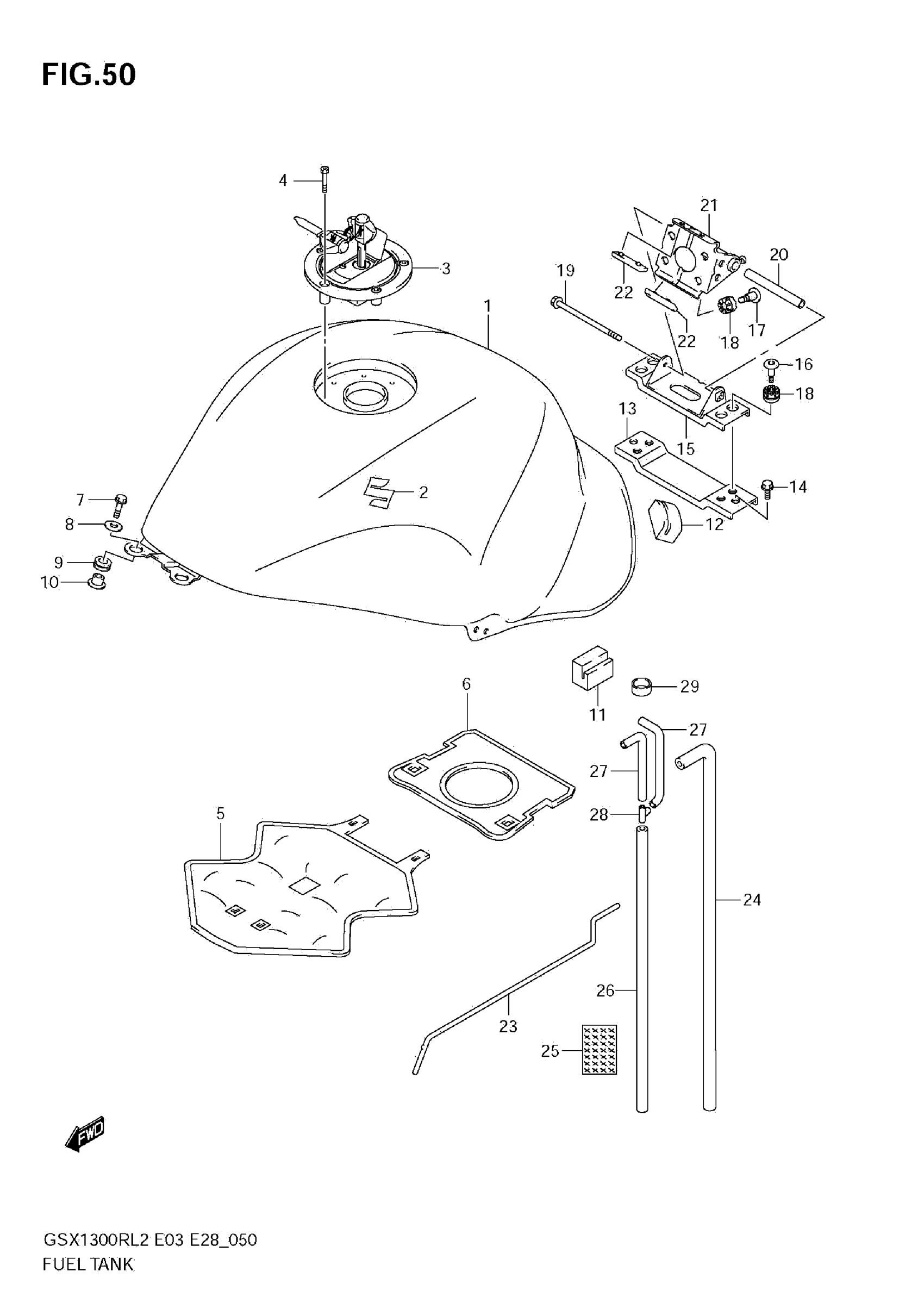

Suzuki GSX1300RL2 (2012) FUEL TANK (GSX1300R L2 E28) Diagram

#

Description
Price

1

TANK ASSY,FUEL( This part replaces 44100-15H60-YVB.

44100-15H62-YVB

$1,559.43

1

TANK ASSY,FUEL This part replaces 44100-15H60-YHL.

44100-15H61-YHL

$2,031.70

1

TANK ASSY,FUEL( This part replaces 44100-15H60-YWW.

44100-15H62-YWW

$1,675.85

2

EMBLEM, "S"

68111-18G20

$29.56

3

CAP SET,FUEL TA This part replaces 44200-16850.

44200-16852

$108.21

4

BOLT (5X20)

09106-05017

$2.80

5

SHIELD, FUEL TANK HEAT NO.1

44191-15H00

$198.55

6

SHIELD, FUEL TANK HEAT NO.2

44191-15H10

$83.62

7

SCREW (6X25)

09139-06029

$4.84

8

WASHER (6.5X22X1.6)

09160-06054

$1.62

9

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$3.77

10

SPACER

44512-16G00

$6.80

11

CUSHION,FUEL TA This part replaces 44541-24F00.

44541-24F01

$5.38

12

CUSHION,FUEL TA This part replaces 44543-15H00.

44543-15H01

$5.78

13

BRACKET, FUEL TANK REAR NO.3

44555-15H00

Unavailable

14

BOLT (8X16)

01550-0816A

$2.31

15

BRACKET, FUEL TANK REAR NO.2 This part replaces 44550-15H00.

44550-15H01

Unavailable

16

SCREW (6X22)

09139-06191

$3.69

17

SCREW (6X22)

09139-06191

$3.69

18

CUSHION

09320-08071

$3.05

19

BOLT

07120-0695B

$3.95

20

SPACER, JOINT

44561-18G00

$15.52

21

BRACKET, FUEL TANK REAR NO.1

44530-15H01

Unavailable

22

CUSHION, BRACKET

45149-44G00

Unavailable

23

STAY

44574-35F00

$13.89

24

HOSE, DRAIN This part replaces 44423-15H00.

44423-15H01

$25.20

25

SHIELD, DRAIN HOSE HEAT

44427-15H00

Unavailable

26

HOSE, BREATHER This part replaces 44424-15H00.

44424-15H01

$22.88

27

HOSE,FUEL TANK BRTHR NO.3 This part replaces 44424-15H10.

44424-15H11

$15.48

28

3 WAY

09367-06007

$3.17

29

HOSE (12X16X600) | L:600->10

09352-12163-600

Unavailable
