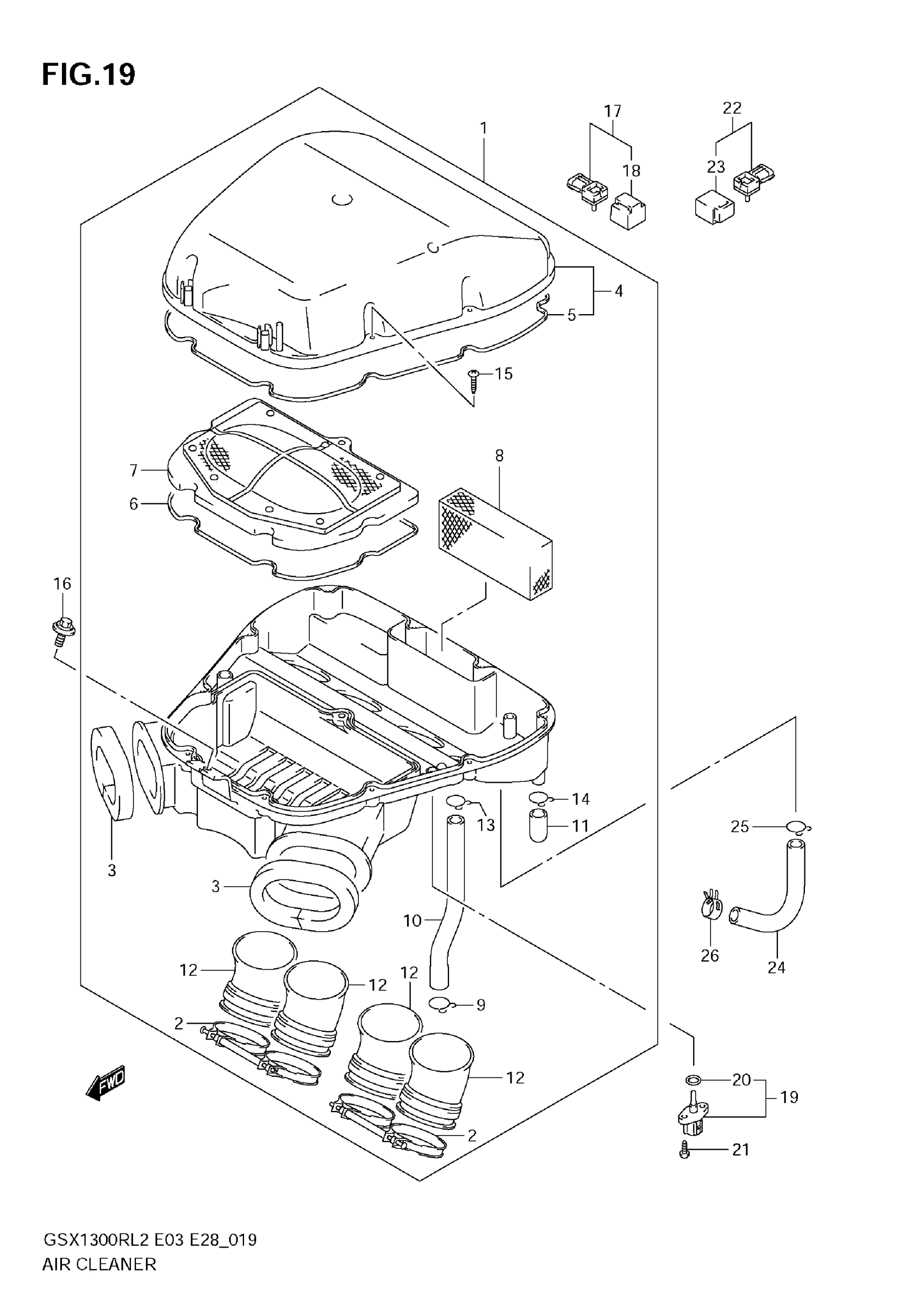

Find the part on the AIR Cleaner diagram for your 2012 Suzuki GSX1300RL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki GSX1300RL2 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR

13700-15H00

1
Out of stock

2

CLAMP

13170-15H10

2
Out of stock

3

.CUSHION, DUCT This part replaces 13736-15H00.

13736-15H01

2
Out of stock

4

CAP, AIR CLEANER

13740-15H00

1
Out of stock

5

GASKET, CAP

13746-15H00

1
Out of stock

6

GASKET, CASE

13756-15H00

1
Out of stock

7

FILTER ASSY

13780-15H00

1
Out of stock

8

FILTER, BREATHER

13788-15H00

1
Out of stock

9

CLIP

09401-16401

1
Out of stock

10

TUBE,BREATHER This part replaces 13853-15H00.

13853-15H01

1
Out of stock

11

.PLUG

13859-41B10

1
Out of stock

12

TUBE,OUTLET B This part replaces 13882-41G00.

13882-41G01

4
Out of stock

13

CLIP

09401-14301

1
Out of stock

14

CLIP

09401-14301

1
Out of stock

15

SCREW

03541-0525B

11
Out of stock

16

BOLT (6X16)

09116-06130

1
Out of stock

17

SENSOR, BOOST

15630-29G20

1
Out of stock

18

COVER

15625-29G10

1
Out of stock

19

SENSOR, AIR TEMP This part replaces 13650-14G11.

13650-14G10

1
Out of stock

20

O RING

13655-14G10

1
Out of stock

21

SCREW

03511-0516A

2
Out of stock

22

SENSOR, AIR PRESSURE

15630-29G10

1
Out of stock

23

COVER

15625-29G00

1
Out of stock

24

HOSE, ISC VALVE

13697-15H00

1
Out of stock

25

CLIP

09401-15101

1
Out of stock

26

CLAMP

09401-16403

1
Out of stock
