2003 Suzuki GSX1300R Muffler Diagram

← All diagrams

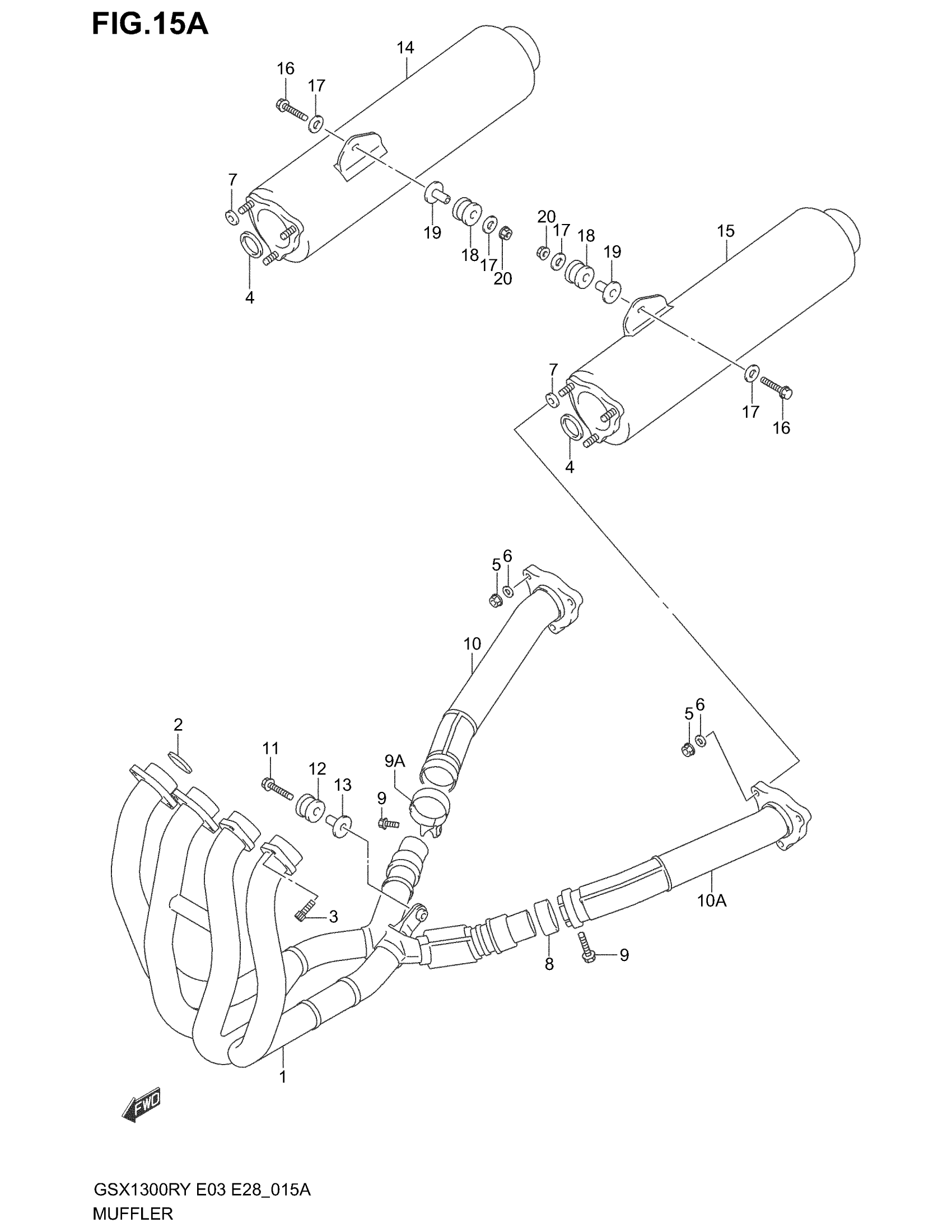

Find the part on the Muffler diagram for your 2003 Suzuki GSX1300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki GSX1300R Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE, EXHAUST

14100-24F40

1
Out of stock

2

.GASKET,EXHAUST PIPE

14181-22D01

4
Out of stock

3

8

$3.26

In stock

4

GASKET

14181-33E00

2

$9.23

In stock

5

NUT

09159-08116

6

$9.78

In stock

6

WASHER (8.5X18X1.6)

09160-08059

6

$1.84

In stock

7

O RING (D:1.9,ID:7.8)

09280-08012

6

$3.56

In stock

8

2

$34.07

In stock

9

2

$2.96

In stock

9A

1

$24.46

In stock

10

PIPE, JOINT RH

14230-24F40

1
Out of stock

10A

PIPE, JOINT LH

14240-24F30

1
Out of stock

11

1

$5.10

In stock

12

CUSHION

09320-12067

1

$17.21

In stock

13

SPACER

09180-08152

1
Out of stock

14

BODY, MUFFLER RH

14310-24F00-H01

1
Out of stock

15

BODY, MUFFLER LH

14340-24F00-H01

1

$1,045.13

In stock

16

BOLT

09103-08358

2

$3.32

In stock

17

WASHER (8.5X28X1.5)

09160-08142

4

$2.92

In stock

18

CUSHION

09320-12049

2
Out of stock

19

SPACER

09180-08156

2
Out of stock

20

NUT

09159-08034

2
Out of stock
