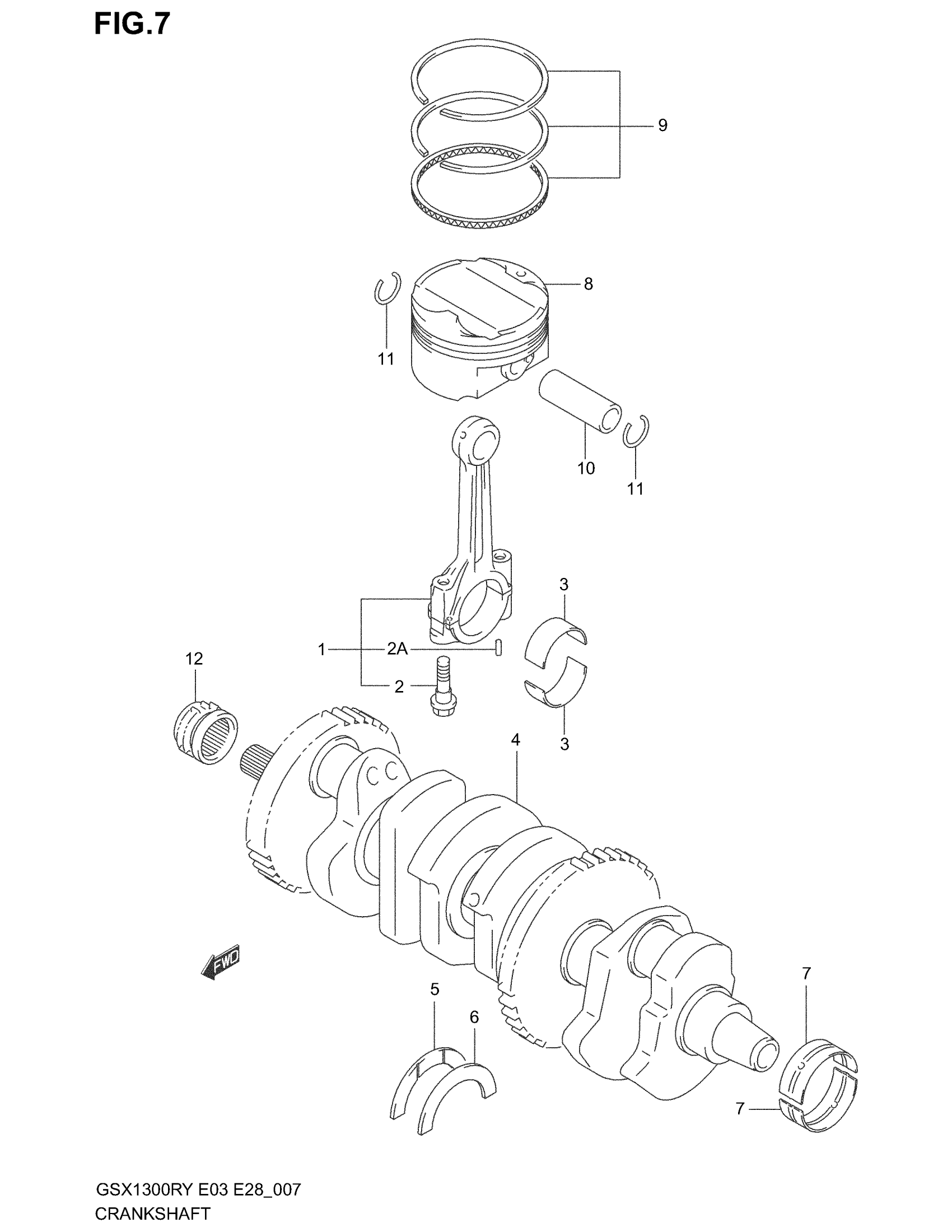

Suzuki GSX1300R (2003) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING | MODEL X This part replaces 12160-24F01.

12160-24F02

$271.58

1

ROD ASSY, CONNECTING | MODEL Y/K1/K2/K3; Includes Item(s) 2 - 2A

12160-24F02

$271.58

2

BOLT

12163-24F00

$16.18

2A

PIN, CONNROD

12165-27A50

$1.08

3

BEARING, CRANK PIN (GREEN) | *SEE NOTE

12164-46E01-0A0

$16.08

3

BEARING, CRANK PIN (BLACK) | *SEE NOTE

12164-46E01-0B0

$16.08

3

BEARING, CRANK PIN (BROWN) | *SEE NOTE

12164-46E01-0C0

$16.55

3

BEARING, CRANK PIN (YELLOW) | *SEE NOTE

12164-46E01-0D0

$16.55

4

CRANKSHAFT SET | Includes Item(s) 5 - 6

12000-24820

Unavailable

5

BEARING, THRUST RH (GREEN)

12228-24F00-0D0

$10.64

6

.BEARING,CRANK THRUST,L (RED)

12228-24F00-0A0

$14.45

6

.BEARING,CRANK THRUST,L (BLAC

12228-24F00-0B0

$10.64

6

.BEARING,CRANK THRUST,L (BLUE

12228-24F00-0C0

$14.35

6

BEARING, THRUST LH (GREEN)

12228-24F00-0D0

$10.64

6

.BEARING,CRANK THRUST,L (YELL

12228-24F00-0E0

$14.98

6

.BEARING,CRANK THRUST,L (WHIT

12228-24F00-0F0

$14.98

7

BEARING, CRANKSHAFT (GREEN) | *SEE NOTE

12229-24F00-0A0

$16.52

7

BEARING, CRANKSHAFT (BLACK) | *SEE NOTE

12229-24F00-0B0

$22.28

7

BEARING, CRANKSHAFT (BROWN) | *SEE NOTE

12229-24F00-0C0

$22.28

7

BEARING, CRANKSHAFT (YELLOW) | *SEE NOTE

12229-24F00-0D0

$17.57

8

PISTON

12111-24F11-0F0

$222.28

9

RING SET, PISTON | MODEL X This part replaces 12140-24F00.

12140-24F10

$56.66

9

RING SET, PISTON | MODEL Y/K1/K2/K3

12140-24F10

$56.66

10

PIN, PISTON

12151-24F10

$19.00

11

CIRCLIP

09381-20004

$1.70

12

SPROCKET, CAM CHAIN

12731-24F00

Unavailable
