2003 Suzuki GSX1300R Crankcase Cover Diagram

← All diagrams

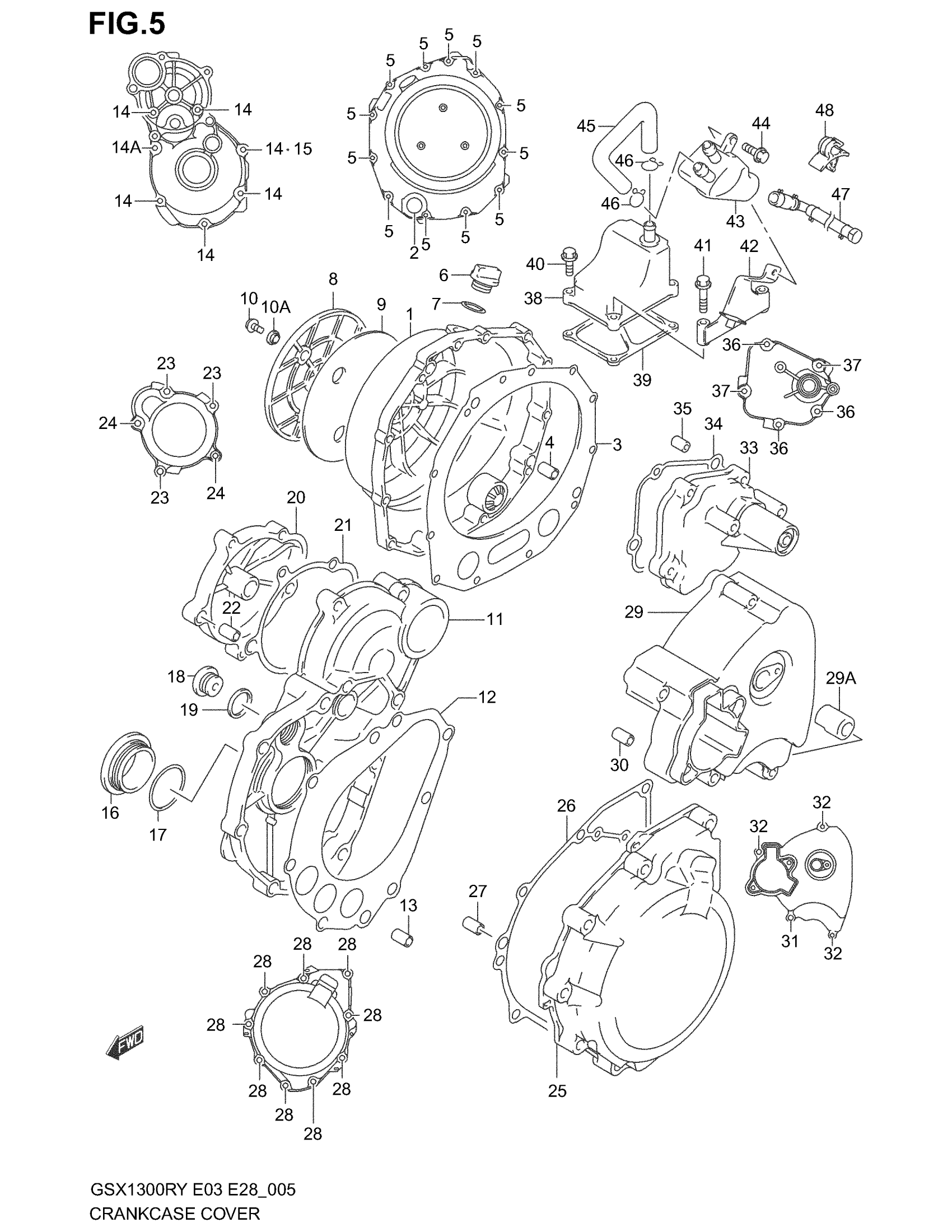

Find the part on the Crankcase Cover diagram for your 2003 Suzuki GSX1300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki GSX1300R Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH | MODEL X This part replaces 11340-24F00.

11340-24F01

1
Out of stock

1

COVER, CLUTCH | MODEL Y/K1/K2/K3; Includes Item(s) 2

11340-24F01

1
Out of stock

2

LENS, OIL LEVEL

11971-33210

1
Out of stock

3

GASKET, CLUTCH COVER

11482-24F00

1
Out of stock

4

PIN

04211-09189

2

$1.77

In stock

5

BOLT | MODEL X

01547-06307

12
Out of stock

5

12

$2.63

In stock

6

.PLUG | MODEL X/Y/K1/K2 This part replaces 09259-20008.

09259-20008-XC0

1
Out of stock

6

PLUG,ENGINE OIL FILLER | MODEL K3

11971-25D00

1
Out of stock

7

O RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

8

COVER, CLUTCH OUTER

11371-24F00

1
Out of stock

9

CUSHION, CLUTCH OUTER COVER

11372-24F00

1
Out of stock

10

SCREW

09139-06107

3
Out of stock

10A

WASHER, CL OUTER COVER SCREW

11373-24F00

3
Out of stock

11

COVER, STARTER CLUTCH | MODEL X/Y/K1/K2

11380-24F01

1
Out of stock

11

COVER,STARTER CLUTCH | MODEL K3

11380-24F20

1
Out of stock

12

GASKET, STARTER CLUTCH COVER | MODEL X This part replaces 11491-24F00.

11491-24F01

1
Out of stock

12

GASKET, STARTER CLUTCH COVER | MODEL Y/K1/K2/K3

11491-24F01

1
Out of stock

13

PIN

04211-09149

2
Out of stock

14

BOLT | MODEL X

01547-06257

6
Out of stock

14

BOLT (6X25) | MODEL Y/K1/K2/K3

09103-06212

6
Out of stock

14A

BOLT | MODEL X

01547-06357

1
Out of stock

14A

BOLT (6X35) | MODEL Y/K1/K2/K3

09103-06214

1
Out of stock

15

GASKET

09168-06023

1
Out of stock

16

PLUG, SHAFT HOLE | MODEL X/Y/K1

09259-36016-20H

1
Out of stock

16

1

$13.37

In stock

17

.O-RING (D:3.1,ID:32.7)

09280-33004

1
Out of stock

18

PLUG, TDC (16X8)

09248-16012

1
Out of stock

19

GASKET

09168-16002

1
Out of stock

20

CAP, STARTER IDLE GEAR | MODEL X/Y/K1/K2

11382-24F00

1
Out of stock

20

CAP,STARTER IDLE GEAR | MODEL K3

11382-24F20

1
Out of stock

21

GASKET, STARTER IDLE GEAR CAP

11492-24F00

1
Out of stock

22

PIN

04211-09149

2
Out of stock

23

BOLT | MODEL X

01547-06257

3
Out of stock

23

BOLT (6X25) | MODEL Y/K1/K2/K3

09103-06212

3
Out of stock

24

BOLT | MODEL X

01547-06357

2
Out of stock

24

BOLT (6X35) | MODEL Y/K1/K2/K3

09103-06214

2
Out of stock

25

COVER, MAGNETO

11351-24F00

1
Out of stock

26

GASKET, MAGNETO COVER

11483-24F00

1
Out of stock

27

PIN

04211-09149

2
Out of stock

28

BOLT | MODEL X

01547-06307

9
Out of stock

28

9

$2.63

In stock

29

COVER, ENGINE SPROCKET | MODEL X

11361-24F00

1
Out of stock

29

COVER, ENGINE SPROCKET | MODEL Y/K1/K2/K3

11361-24F10

1
Out of stock

29A

PROTECTOR,ENGIN This part replaces 11362-24F00.

11362-24F01

1
Out of stock

30

PIN

04211-09149

2
Out of stock

31

BOLT | MODEL X

01547-06407

1
Out of stock

31

BOLT (6X40) | MODEL Y/K1/K2/K3

09103-06215

1
Out of stock

32

BOLT | MODEL X

01547-06557

3
Out of stock

32

BOLT (6X55) | MODEL Y/K1/K2/K3

09103-06216

3
Out of stock

33

COVER, GEAR SHIFT

11383-24F00

1
Out of stock

34

GASKET, GEAR SHIFT COVER

11485-24F00

1
Out of stock

35

PIN

04211-09149

2
Out of stock

36

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

3
Out of stock

37

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

2
Out of stock

38

COVER, BREATHER

11330-24F01

1
Out of stock

38A

UNION, BREATHER

09364-12002

1
Out of stock

39

GASKET, BREATHER COVER | MODEL X This part replaces 11318-24F00.

11318-24F01

1
Out of stock

39

GASKET, BREATHER COVER | MODEL Y/K1/K2/K3

11318-24F01

1
Out of stock

40

BOLT, FINAL GEAR CASE | MODEL X This part replaces 01547-06303.

01547-0630B

2
Out of stock

40

BOLT, FINAL GEAR CASE | MODEL Y/K1/K2/K3 This part replaces 01547-06303.

01547-0630B

4
Out of stock

41

BOLT | MODEL X This part replaces 01547-06503.

01547-0650B

2
Out of stock

42

BRACKET, OIL RETURN TANK | MODEL X

11334-24F00

1
Out of stock

43

TANK, OIL RETURN | MODEL X

11330-02F01

1
Out of stock

44

BOLT, CLAMP | MODEL X This part replaces 01550-06123.

01550-0612A

1
Out of stock

45

HOSE, BREATHER | MODEL X

11332-24F00

1
Out of stock

46

CLIP | MODEL X

09401-15101

2
Out of stock

47

HOSE, OIL DRAIN | MODEL X

11390-24F00

1
Out of stock

48

1

$2.77

In stock
