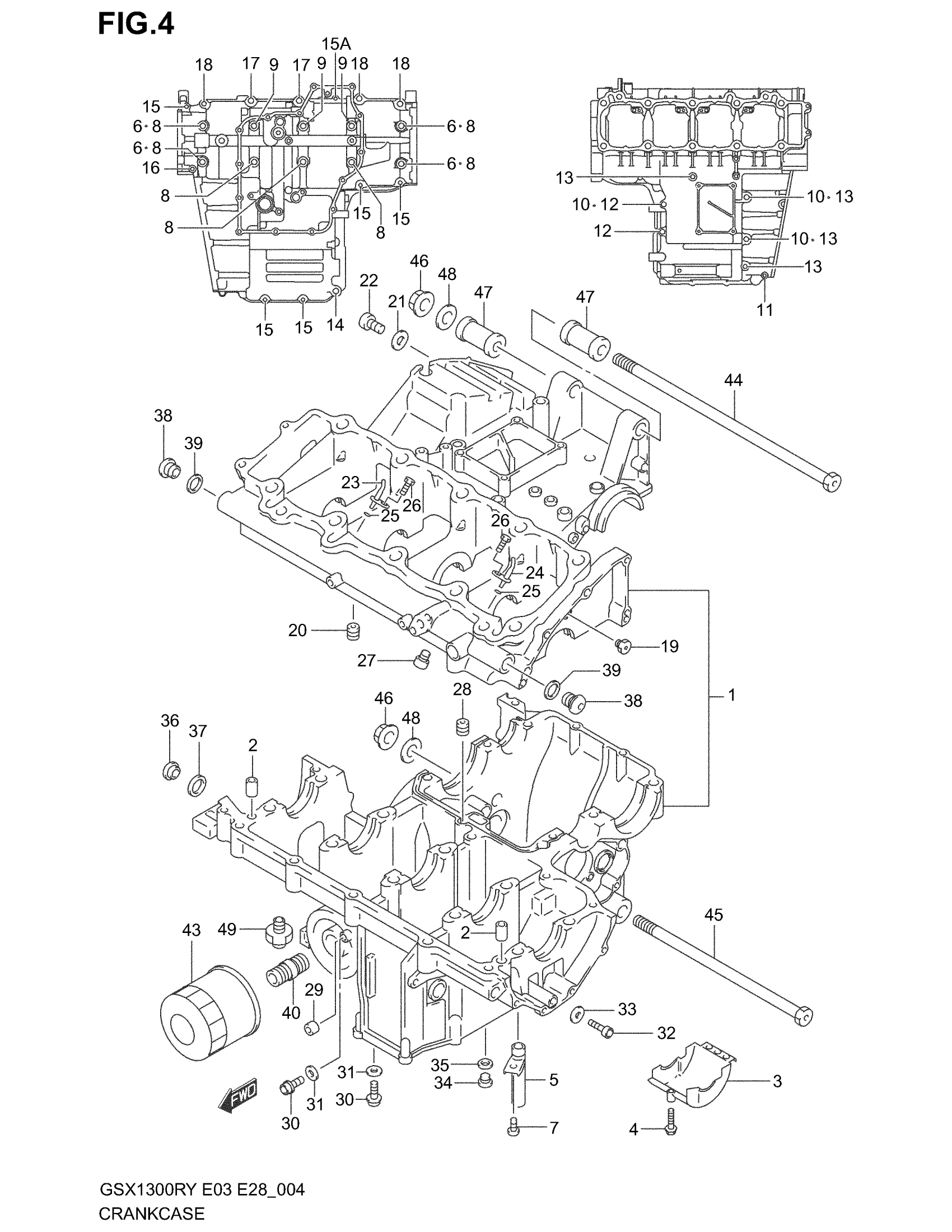

Suzuki GSX1300R (2003) CRANKCASE Diagram

NO DESCRIPTION AVAILABLE | MODEL X %F.NO.X2103635 This part replaces 11301-24841.

11301-24880

Unavailable

NO DESCRIPTION AVAILABLE | MODEL X F.NO.X2103636% This part replaces 11301-24843.

11301-24880

Unavailable

NO DESCRIPTION AVAILABLE | MODEL Y This part replaces 11301-24844.

11301-24880

Unavailable

NO DESCRIPTION AVAILABLE | MODEL K1 This part replaces 11301-24845.

11301-24880

Unavailable

CRANKCASE SET | MODEL K2 This part replaces 11302-24810.

11302-24813

Unavailable

CRANKCASE SET | MODEL K3; Includes Item(s) 2 - 42 This part replaces 11302-24811.

11302-24813

Unavailable

PIN,CRANKCASE

11319-33E50

$5.01

SEPARATOR, OIL

11323-24F00

Unavailable

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.43

UNION, BREATHER OIL

11328-24F00

$21.07

.GASKET (10.2X20X2.3)

09168-10031

$2.01

BOLT This part replaces 01547-06123.

01547-0612B

$1.22

BOLT (9X95)

09103-09008

$6.95

BOLT (9X115)

09103-09010

$10.77

GASKET (8.2X14X1)

09168-08016

$1.64

BOLT This part replaces 01547-06503.

01547-0650B

$2.77

BOLT This part replaces 01550-08653.

01550-0865A

$3.21

BOLT This part replaces 01550-08803.

01550-0880A

$4.62

BOLT This part replaces 01550-10603.

01550-1060A

$3.68

BOLT This part replaces 01547-06403.

01547-0640B

$2.74

BOLT | F.NO.X2103636% This part replaces 01547-06403.

01547-0640B

$2.74

BOLT This part replaces 01547-06603.

01547-0660B

$2.87

BOLT | %F.NO.X2100438 This part replaces 01550-08603.

01550-0860A

$1.37

BOLT (8X50) | F.NO.X2100439%

09103-08155

Unavailable

BOLT | %F.NO.X2100438 This part replaces 01550-08503.

01550-0850B

Unavailable

BOLT (8X60) | F.NO.X2100439%

09103-08355

$4.62

JET, MAGNETO COOLING

11393-33E01

$15.63

JET,AIR (#100)

09493-20012

$21.17

GASKET, T/M COOLING

09168-06023

$2.01

BOLT, OIL GALLERY This part replaces 07120-06123.

07120-0612B

$2.80

JET,PISTON COOLING

11390-34E00

$24.28

JET,PISTON COOLING

11390-34E10

$24.28

O RING

09280-04004

$1.76

BOLT

09106-06075

$2.50

PLUG, PISTON JET OIL GALLERY

09106-06076

$3.01

JET, T/M OIL 180

09493-36006

$18.33

JET, OIL GALLERY

11532-46E00

$13.02

BOLT, OIL GALLERY This part replaces 07120-06123.

07120-0612B

$2.80

GASKET

09168-06023

$2.01

BOLT This part replaces 07130-08163.

07130-0816A

$2.90

GASKET (8.2X14X1)

09168-08016

$1.64

PLUG, OIL GALLERY

09248-10010

$3.82

GASKET (9.9X14X0.3)

09168-10002

$1.96

PLUG, OIL GALLERY (16X8)

09248-16012

$4.19

GASKET (16X22X2)

09168-16002

$1.89

PLUG, SHAFT | MODEL X/Y This part replaces 09248-14005.

09248-14011

$2.80

PLUG, SHAFT | MODEL K1 This part replaces 09248-14005.

09248-14011

$2.80

PLUG (14X12) | MODEL K2/K3

09248-14011

$2.80

GASKET (14X20X1.5) | MODEL X

09168-14011

$1.68

GASKET (13.8X18.8X0.4) | MODEL Y

09168-14002

$2.83

GASKET (13.8X18.8X0.4) | MODEL K1/K2/K3

09168-14002

$2.83

UNION,OIL STAND This part replaces 16591-06B00.

16591-06B01

$6.45

BEARING, CRANK THRUST (GREEN) | RH SEE ILLUSTRATION ON FIG.7(C-3)

12228-24F00-0D0

$10.18

.BEARING,CRANK THRUST,L (RED) | LH SEE ILLUSTRATION ON FIG.7(C-3)

12228-24F00-0A0

$14.45

.BEARING,CRANK THRUST,L (BLAC

12228-24F00-0B0

$10.18

.BEARING,CRANK THRUST,L (BLUE

12228-24F00-0C0

$14.35

BEARING, CRANK THRUST (GREEN)

12228-24F00-0D0

$10.18

.BEARING,CRANK THRUST,L (YELL

12228-24F00-0E0

$14.98

.BEARING,CRANK THRUST,L (WHIT

12228-24F00-0F0

$14.98

FILTER, ENGINE OIL This part replaces 16510-34E00.

16510-07J00

$11.99

BOLT (12X320) | MODEL X/Y/K1

09100-12076

Unavailable

BOLT (12X320) | MODEL K2/K3

09103-12066

$41.42

BOLT (12X240) | MODEL X/Y/K1

09100-12075

Unavailable

BOLT (12X240) | MODEL K2/K3

09103-12067

$26.56

NUT

09159-12054

$9.50

SPACER,ENG MTG (L47)

11611-24F00

$30.20

WASHER | MODEL X/Y/K1

08322-01127

$1.86

SWITCH ASSY,OIL PRESSURE | MODEL X/Y This part replaces 37820-33D00.

37820-33D11

$27.58

SWITCH ASSY,OIL PRESSURE | MODEL K1/K2/K3 This part replaces 37820-33D10.

37820-33D11

$27.58
