2003 Suzuki GSX1300R Crank Balancer Diagram

← All diagrams

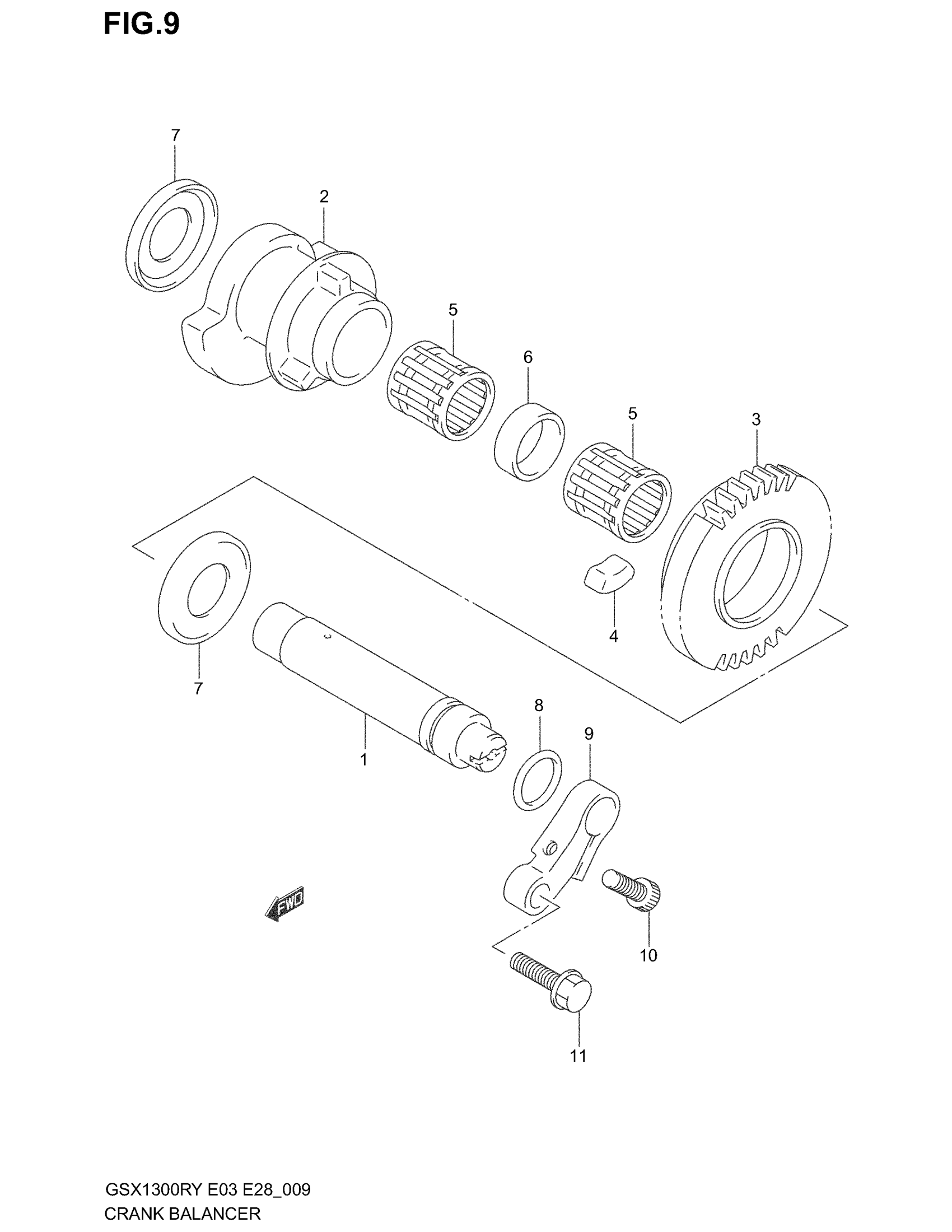

Find the part on the Crank Balancer diagram for your 2003 Suzuki GSX1300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki GSX1300R Crank Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, CRANK BALANCER This part replaces 12650-24F00-0F0.

12650-24F01-0F0

1
Out of stock

2

BALANCER,CRANK

12654-24F00-0F0

1
Out of stock

3

GEAR, CRANK BALANCER

12666-24F00

1
Out of stock

4

DAMPER,BALANCER GEAR

12686-24F00

6
Out of stock

5

BEARING

09263-19015

2
Out of stock

6

SPACER

09180-19014

1
Out of stock

7

WASHER

09169-21001

2
Out of stock

8

O RING, LH (D:1.9,ID:16.6)

09280-17004

1
Out of stock

9

ARM,BALANCER SHAFT This part replaces 12681-26D00.

12681-26D02

1
Out of stock

10

BOLT, FRONT BRG HOUSING This part replaces 07130-06203.

07130-0620B

1
Out of stock

11

BOLT (6X20) This part replaces 09103-06130.

09103-06286

1
Out of stock
