2003 Suzuki GSX1300R CAM Chain Diagram

← All diagrams

Find the part on the CAM Chain diagram for your 2003 Suzuki GSX1300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

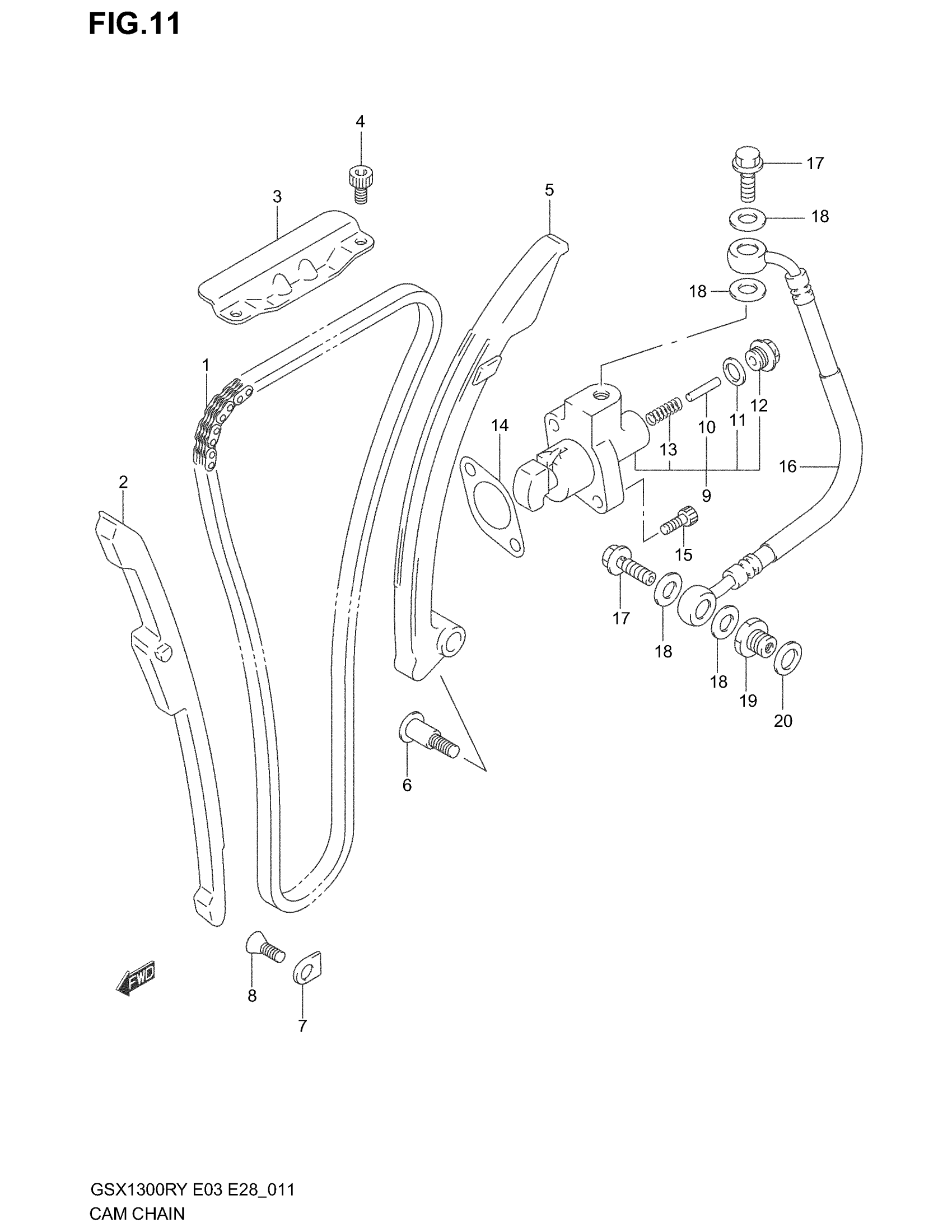

2003 Suzuki GSX1300R CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN,CAMSHAFT DRIVE This part replaces 12760-24F00.

12760-24F01

1
Out of stock

2

GUIDE,CAM CHAIN This part replaces 12771-24F00.

12771-24F01

1
Out of stock

3

GUIDE,CAM CHAIN This part replaces 12782-24F01.

12782-24F02

1
Out of stock

4

BOLT This part replaces 07130-06123.

07130-0612A

2
Out of stock

5

TENSIONER,CAM C This part replaces 12811-24F10.

12811-24F12

1
Out of stock

6

BOLT

12812-26B02

1
Out of stock

7

RETAINER CAM CHAIN GUIDE NO.1

12773-24F00

1
Out of stock

8

SCREW This part replaces 02122-06123.

02122-0612A

1
Out of stock

9

ADJUSTER SET, TENSIONER | Includes Item(s) 10 - 13 This part replaces 12800-24F10.

12800-24F11

1
Out of stock

10

SHAFT, ADJUSTER

12836-24F00

1
Out of stock

11

GASKET

12837-24F10

1
Out of stock

12

PLUG

12833-05A00

1
Out of stock

13

SPRING

12831-24F10

1
Out of stock

14

.GASKET,TENSIONER ADJUSTER

12837-24A10

1
Out of stock

15

BOLT This part replaces 07130-06253.

07130-0625B

2
Out of stock

16

HOSE, CAM CHAIN TENSIONER

12835-24F00

1
Out of stock

17

BOLT This part replaces 12838-35F00.

12838-35F01

2
Out of stock

18

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

4
Out of stock

19

PLUG

12839-24F00

1
Out of stock

20

GASKET

09168-14002

1
Out of stock
