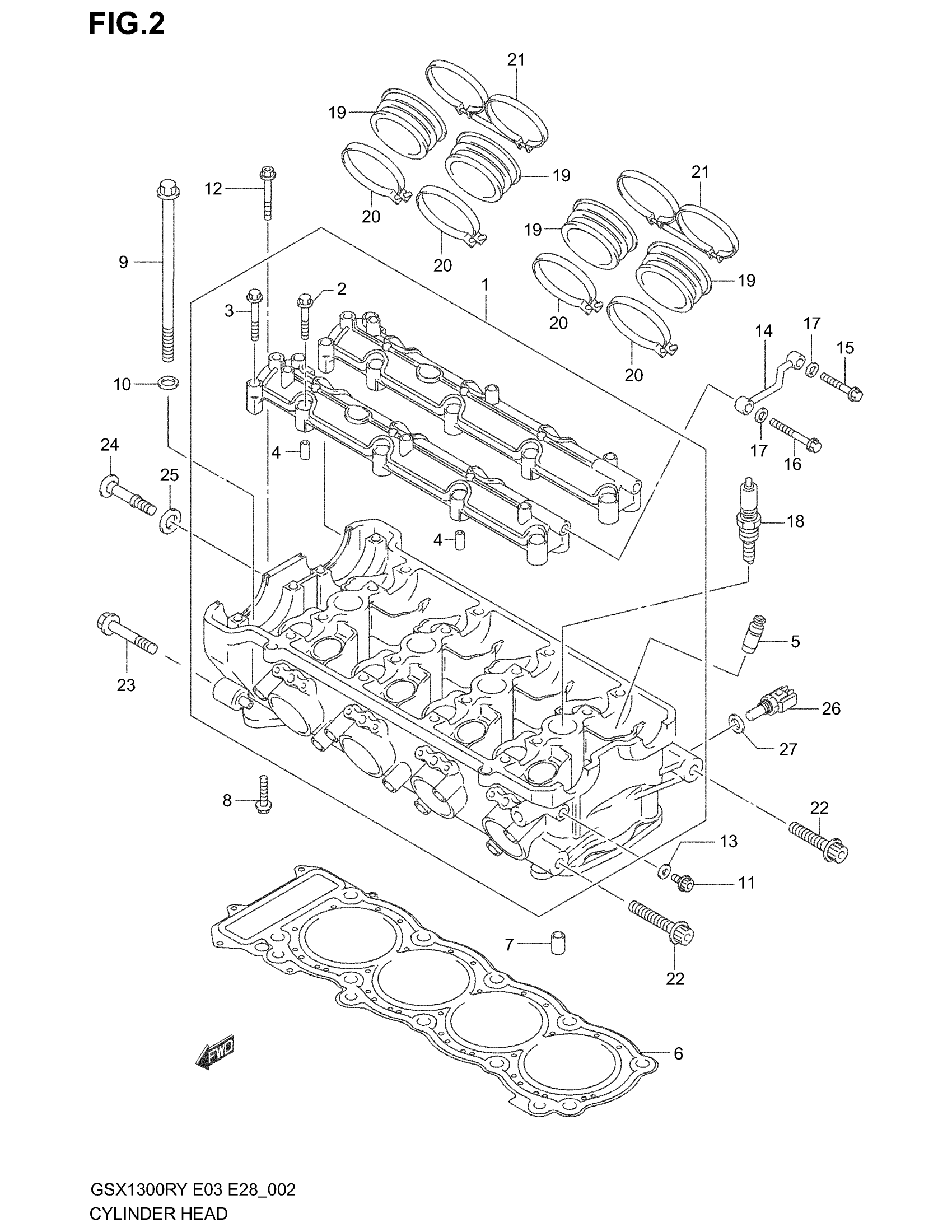

Suzuki GSX1300R (2003) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | Includes Item(s) 2 - 4

11100-24F00

Unavailable

2

BOLT (6X39)

09103-06026

$1.84

3

BOLT (6X45)

09103-06165

$3.30

4

PIN

09206-08007

$2.62

5

GUIDE,VALVE (OS:0.3) | OPT

11115-14D71

$44.28

6

GASKET, CYLINDER HEAD

11141-24F00

$91.06

7

PIN

04211-11169

$1.77

8

BOLT This part replaces 01550-06303.

01550-0630A

$2.31

9

BOLT (10X175)

09103-10276

$14.44

10

WASHER

09160-10082

$1.62

11

BOLT, OIL GALLERY This part replaces 07120-06123.

07120-0612B

$2.80

12

BOLT, RECTIFIER This part replaces 07120-06503.

07120-0650B

$3.19

13

GASKET

09168-06023

$2.01

14

PIPE,OIL This part replaces 11131-33E00.

11131-33E01

$52.72

15

BOLT This part replaces 01550-06353.

01550-0635A

$2.31

16

BOLT This part replaces 01550-06453.

01550-0645A

$2.42

17

.WASHER This part replaces 08322-01063.

08322-0106B

$2.24

18

PLUG SPARK (CR9E)

09482-00458

$5.75

18

SPARK PLUG (DENSO,U27ESR-N)

09482-00459

$5.58

18

SPARK PLUG (NGK,CR8E) | OPT

09482-00456

$5.99

18

SPARK PLUG (NGK,CR10E) | OPT

09482-00460

$5.75

18

SPARK PLUG (DENSO,U24ESR-N) | OPT

09482-00457

$5.58

18

SPARK PLUG (DENSO,U31ESR-N) | OPT

09482-00461

$11.56

19

PIPE, INTAKE NO.1

13111-24F00

$18.81

20

..CLAMP

09402-60208

$4.62

21

CLAMP,INTAKE PI | MODEL X/Y This part replaces 13170-24F00.

13170-24F02

$34.98

21

CLAMP,INTAKE PI | MODEL K1/K2/K3 This part replaces 13170-24F01.

13170-24F02

$34.98

22

BOLT This part replaces 07120-10453.

07120-1045B

$4.04

23

BOLT This part replaces 07120-10553.

07120-1055B

$4.04

24

BOLT, CYL HEAD SIDE FACE

11161-33E00

$9.32

25

WASHER

11191-13E00

$4.16

26

SENSOR, WATER TEMPERATURE | MODEL X/Y/K1/K2

13650-51G10

$118.63

26

SENSOR, WATER TEMPERATURE | MODEL K3

13650-10G00

$79.85

27

GASKET

09168-12017

$1.97
