2002 Suzuki GSX-R1000 Water Pump Diagram

← All diagrams

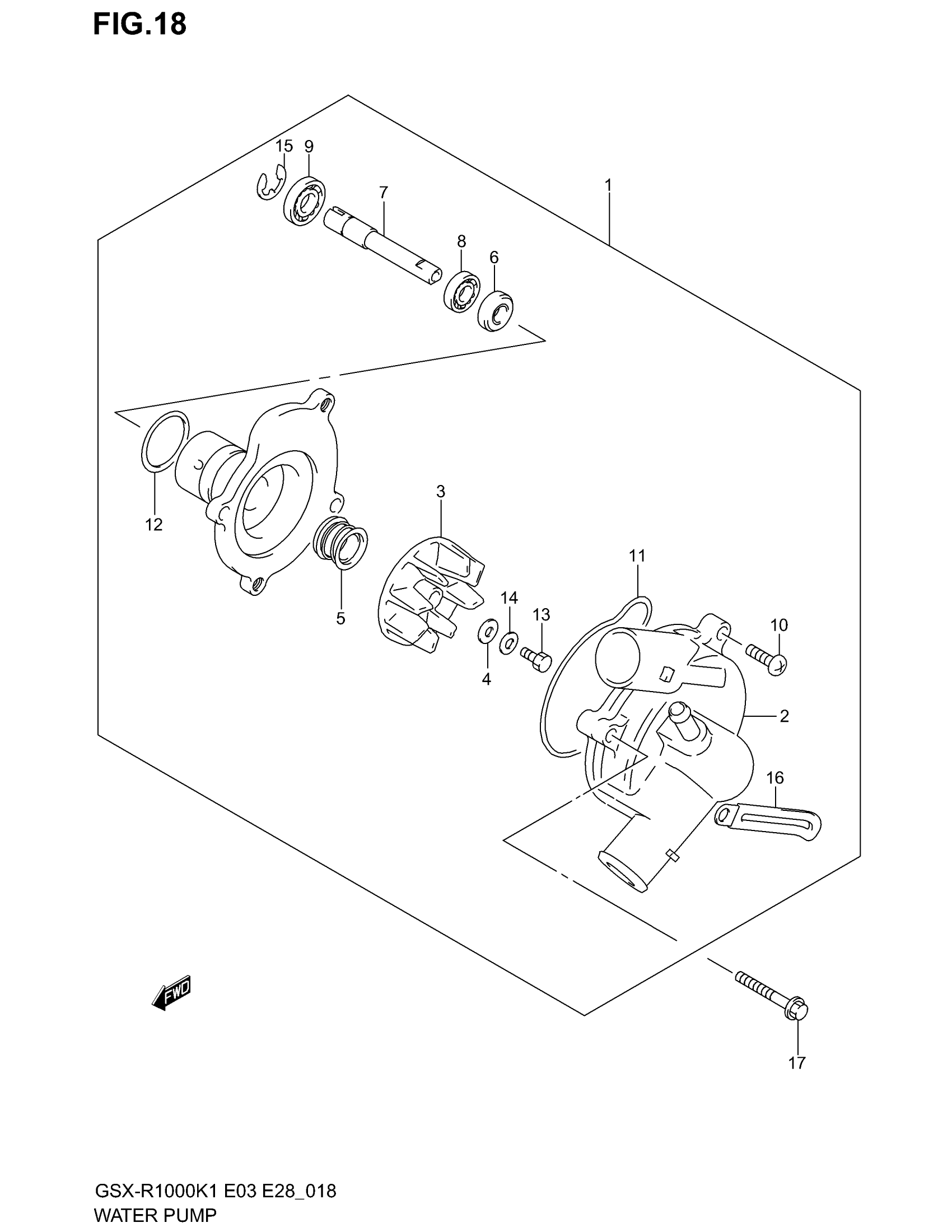

Find the part on the Water Pump diagram for your 2002 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Suzuki GSX-R1000 Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY, WATER | Includes Item(s) 2 - 16

17400-40F00

1
Out of stock

2

CASE, WATERPUMP

17411-40F00

1
Out of stock

3

IMPELLER

17491-40F00

1
Out of stock

4

GASKET

09168-06025

1
Out of stock

5

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

1
Out of stock

6

.SEAL OIL (10X21X5)

09283-10004

1
Out of stock

7

SHAFT

17511-40F00

1
Out of stock

8

BEARING (10X26X8)

09262-10014

1
Out of stock

9

BEARING (12X28X8)

09262-12001

1
Out of stock

10

SCREW This part replaces 02112-06163.

02112-0616A

2
Out of stock

11

O RING

17418-40F00

1
Out of stock

12

O RING

17435-40F00

1
Out of stock

13

BOLT (6X13)

09100-06099

1
Out of stock

14

LOCK WASHER

09164-06006

1
Out of stock

15

E-RING, BUSH This part replaces 08332-11093.

08332-1109A

1
Out of stock

16

CLAMP This part replaces 09404-06432.

09404-06039

1
Out of stock

17

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

2
Out of stock
