2002 Suzuki GSX-R1000 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2002 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

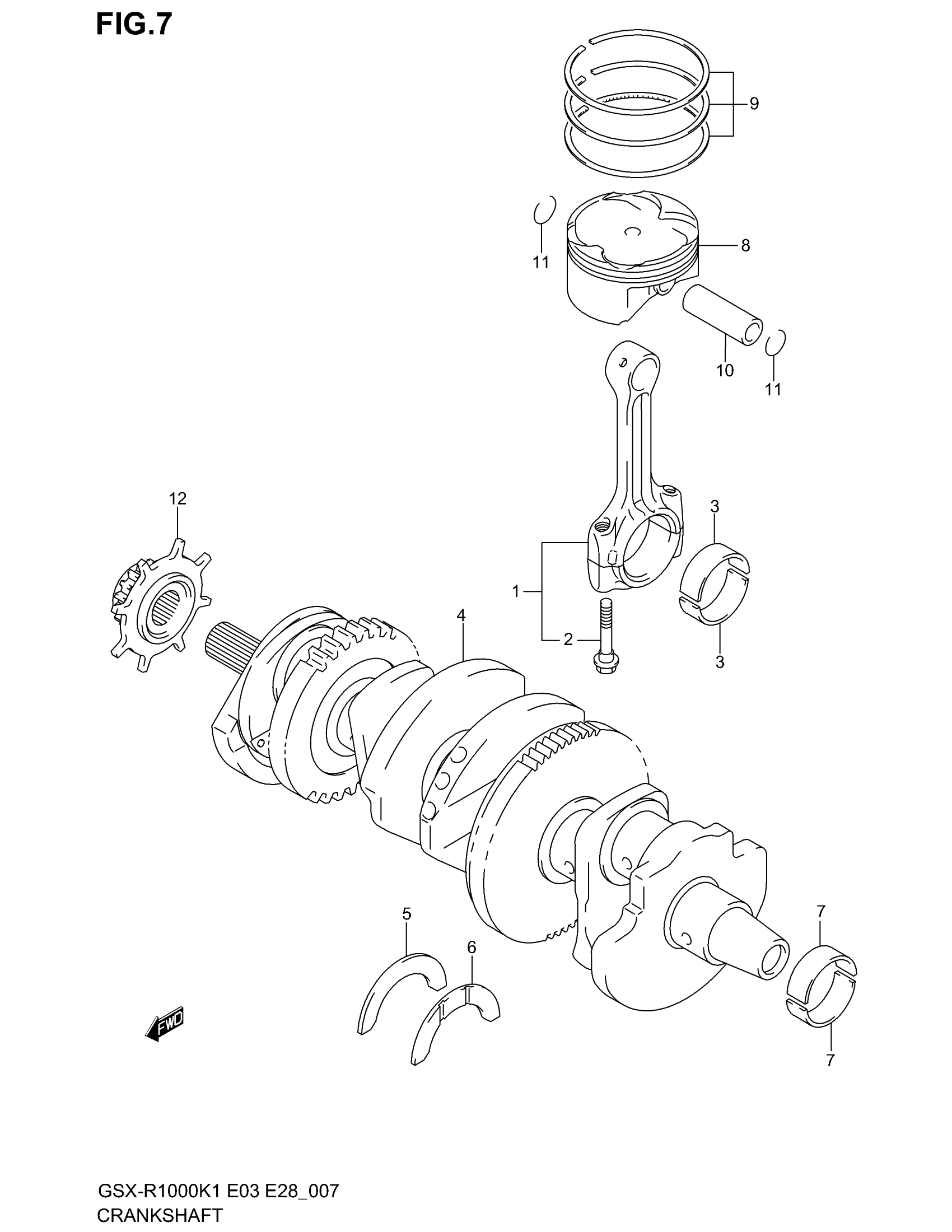

2002 Suzuki GSX-R1000 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROD ASSY, CONNECTING | Includes Item(s) 2

12160-40F00

4
Out of stock

2

BOLT

12163-24F00

8
Out of stock

3

BEARING, CRANK PIN (GREEN) | *SEE NOTE

12164-40F00-0A0

8
Out of stock

3

BEARING, CRANK PIN (BLACK) | *SEE NOTE

12164-40F00-0B0

8
Out of stock

3

BEARING, CRANK PIN (BROWN) | *SEE NOTE

12164-40F00-0C0

8
Out of stock

3

BEARING, CRANK PIN (YELLOW) | *SEE NOTE

12164-40F00-0D0

8
Out of stock

4

CRANKSHAFT SET | Includes Item(s) 5 - 6 This part replaces 12000-40820.

12000-40821

1
Out of stock

5

BEARING, THRUST RH (GREEN)

12228-48B00-0E0

1
Out of stock

6

BEARING, THRUST LH (BROWN)

12228-48B00-0B0

1
Out of stock

6

BEARING, THRUST LH (RED)

12228-48B00-0C0

1
Out of stock

6

BEARING, THRUST LH (YELLOW)

12228-48B00-0D0

1
Out of stock

6

BEARING, THRUST LH (GREEN)

12228-48B00-0E0

1
Out of stock

6

BEARING, THRUST LH (BLUE)

12228-48B00-0F0

1
Out of stock

6

BEARING, THRUST LH (ORANGE)

12228-48B00-0G0

1
Out of stock

6

BEARING, THRUST LH (BLACK)

12228-48B00-0H0

1
Out of stock

7

BEARING, CRANKSHAFT (GREEN) | *SEE NOTE

12229-40F00-0A0

10
Out of stock

7

BEARING, CRANKSHAFT (BLACK) | *SEE NOTE

12229-40F00-0B0

10
Out of stock

7

BEARING, CRANKSHAFT (BROWN) | *SEE NOTE

12229-40F00-0C0

10
Out of stock

7

BEARING, CRANKSHAFT (YELLOW) | *SEE NOTE

12229-40F00-0D0

10
Out of stock

8

PISTON

12111-40F00-0F0

4
Out of stock

9

RING SET, PISTON

12140-40F00

4
Out of stock

10

PIN, PISTON

12151-40F00

4
Out of stock

11

CIRCLIP

09381-16001

8
Out of stock

12

SPROCKET, CAM CHAIN

12731-35F00

1
Out of stock
