2002 Suzuki GSX-R1000 CAM Chain Diagram

← All diagrams

Find the part on the CAM Chain diagram for your 2002 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

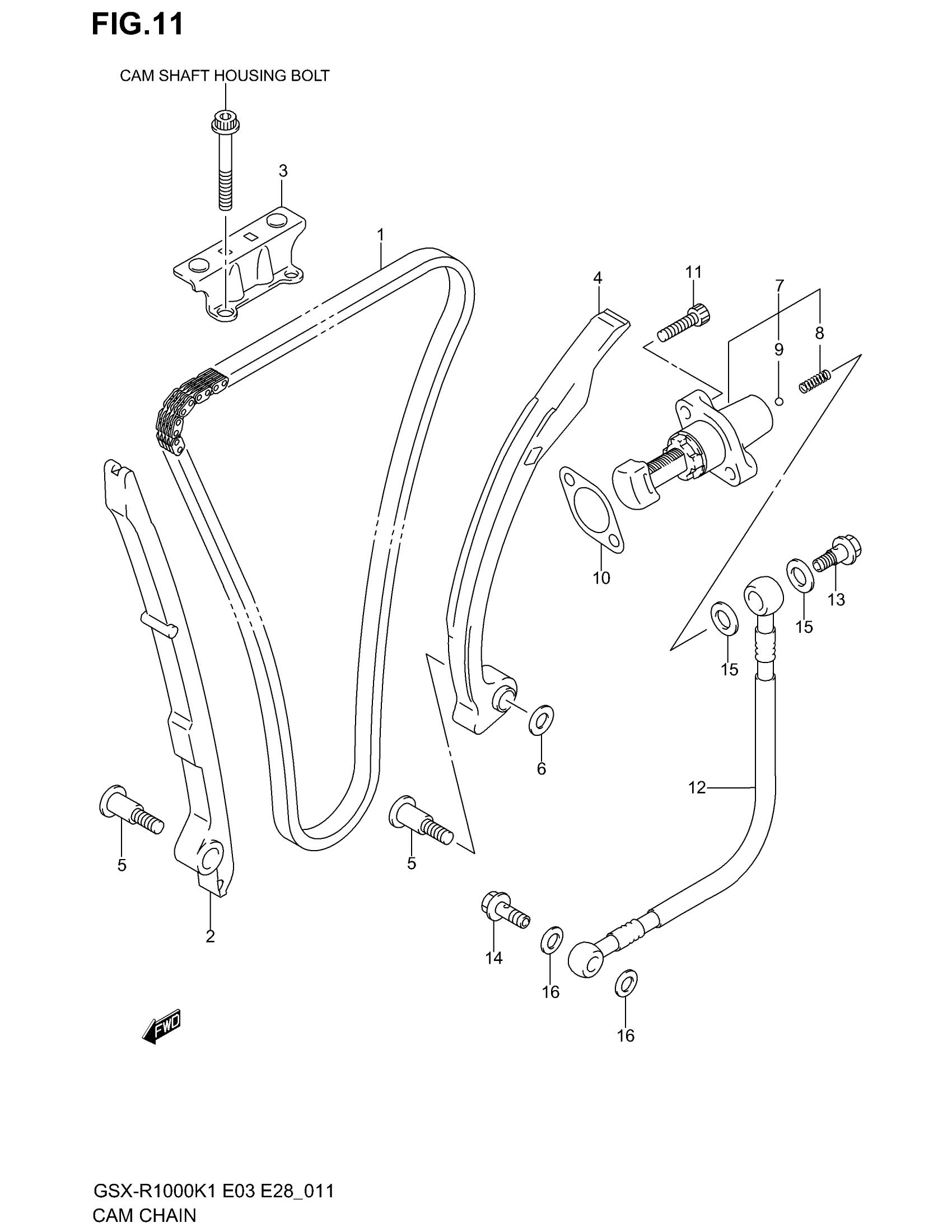

2002 Suzuki GSX-R1000 CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN,CAMSHAFT DRIVE This part replaces 12760-40F00.

12760-40F01

1
Out of stock

2

GUIDE,CAM CHAIN This part replaces 12771-40F00.

12771-40F02

1
Out of stock

3

GUIDE,CAM CHAIN NO.2 This part replaces 12782-35F10.

12782-35F11

1
Out of stock

4

TENSIONER,CAM C This part replaces 12811-40F00.

12811-40F01

1
Out of stock

5

BOLT

12812-26B02

2
Out of stock

6

WASHER This part replaces 08322-01083.

08322-0108A

1
Out of stock

7

ADJUSTER ASSY, TENSIONER | Includes Item(s) 8 - 9

12830-40F00

1
Out of stock

8

SPRING

12831-40F00

1
Out of stock

9

BALL

12839-35F00

1
Out of stock

10

GASKET, ADJUSTER

12837-35F00

1
Out of stock

11

BOLT This part replaces 07130-06253.

07130-0625B

2
Out of stock

12

HOSE, TENSIONER ADJUSTER OIL

12835-35F10

1
Out of stock

13

BOLT, OIL HOSE UNION NO.1

12836-40F00

1
Out of stock

14

BOLT This part replaces 12838-35F00.

12838-35F01

1
Out of stock

15

GASKET, OIL HOSE NO.1 | MODEL Y/K1

09168-12017

2
Out of stock

15

GASKET, OIL HOSE NO.1 | MODEL K2

09168-12019

2
Out of stock

16

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

2
Out of stock
