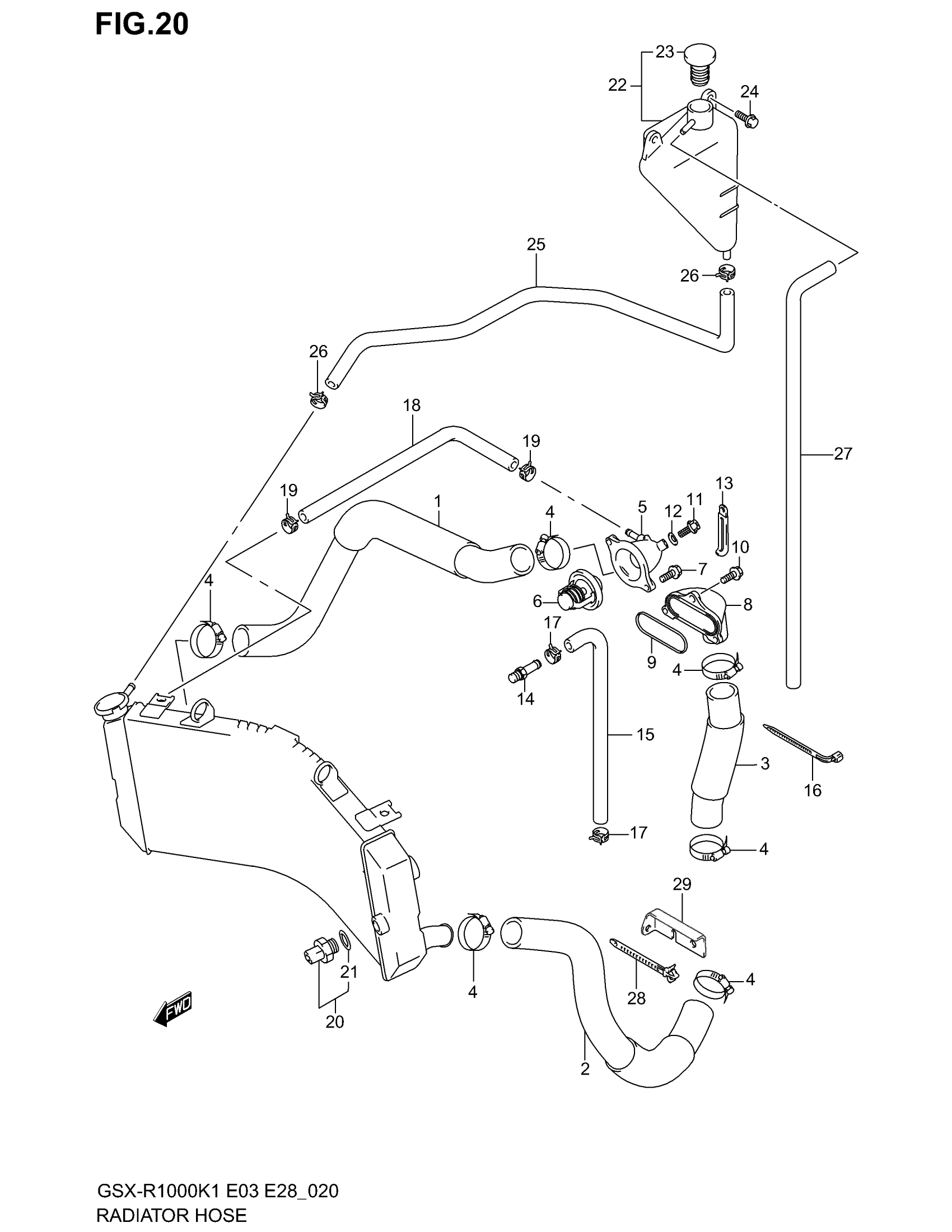

Suzuki GSX-R1000 (2002) RADIATOR HOSE Diagram

#

Description
Price

1

HOSE, RADIATOR INLET

17851-40F00

$67.75

2

HOSE, RADIATOR OUTLET | MODEL K1 This part replaces 17852-40F00.

17852-40F10

$43.92

2

HOSE, RADIATOR OUTLET | MODEL K2

17852-40F10

$43.92

3

HOSE, CYLINDER INLET | MODEL K1 This part replaces 17853-40F00.

17853-40F10

$22.00

3

HOSE, CYLINDER INLET | MODEL K2

17853-40F10

$22.00

4

CLAMP

09402-38511

$10.69

5

COVER, THERMOSTAT

17661-35F00

$57.22

6

THERMOSTAT,WTR, This part replaces 17670-50F00.

17670-50F01

$30.87

7

..BOLT This part replaces 01547-06203.

01547-0620B

$2.43

8

CONNECTOR This part replaces 17861-33E10.

17861-33E20

$20.65

9

O RING

17863-33E00

$3.69

10

..BOLT This part replaces 01547-06203.

01547-0620B

$2.43

11

BOLT, THERMOSTAT COVER AIR

17568-50F00

$6.32

12

GASKET, AIR BOLT (6.4X11.5X0.8)

09168-06026

$2.80

13

CLAMP This part replaces 09404-06432.

09404-06039

$1.73

14

UNION, BYPASS

09362-09011

$7.57

15

HOSE, WATER BYPASS

17854-40F00

$25.87

16

CLAMP, BYPASS HOSE

09407-18402

$2.21

17

CLIP This part replaces 09401-12409.

09401-12414

$2.98

18

HOSE, WATER BYPASS NO.2 (5X11X600) | L:600!480

09352-50111-600

$10.73

19

CLIP (ID:10.5,H:8)

09401-10409

$2.28

20

SWITCH,RDTR FAN | Includes Item(s) 21 This part replaces 17680-33E00.

17680-33E01

$44.35

21

O RING

17689-50F00

$2.63

22

TANK ASSY, RESERVOIR | Includes Item(s) 23

17910-35F02

$59.75

23

.CAP,RESERVOIR TANK

17931-02FA0

$5.09

24

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

25

HOSE, TANK OVERFLOW This part replaces 17981-35F00.

17900-35810

$28.38

26

CLIP

09401-08411

$1.77

27

HOSE, OVER FLOW (5X9X600) | L:600!500

09352-50901-600

$7.37

28

CLAMP | MODEL K1 This part replaces 09407-17401.

09407-17402

$4.28

28

CLAMP, WATER HOSE | MODEL K2

09407-17402

$4.28

29

BRACKET, HOSE CLAMP

17890-40F01

Unavailable
