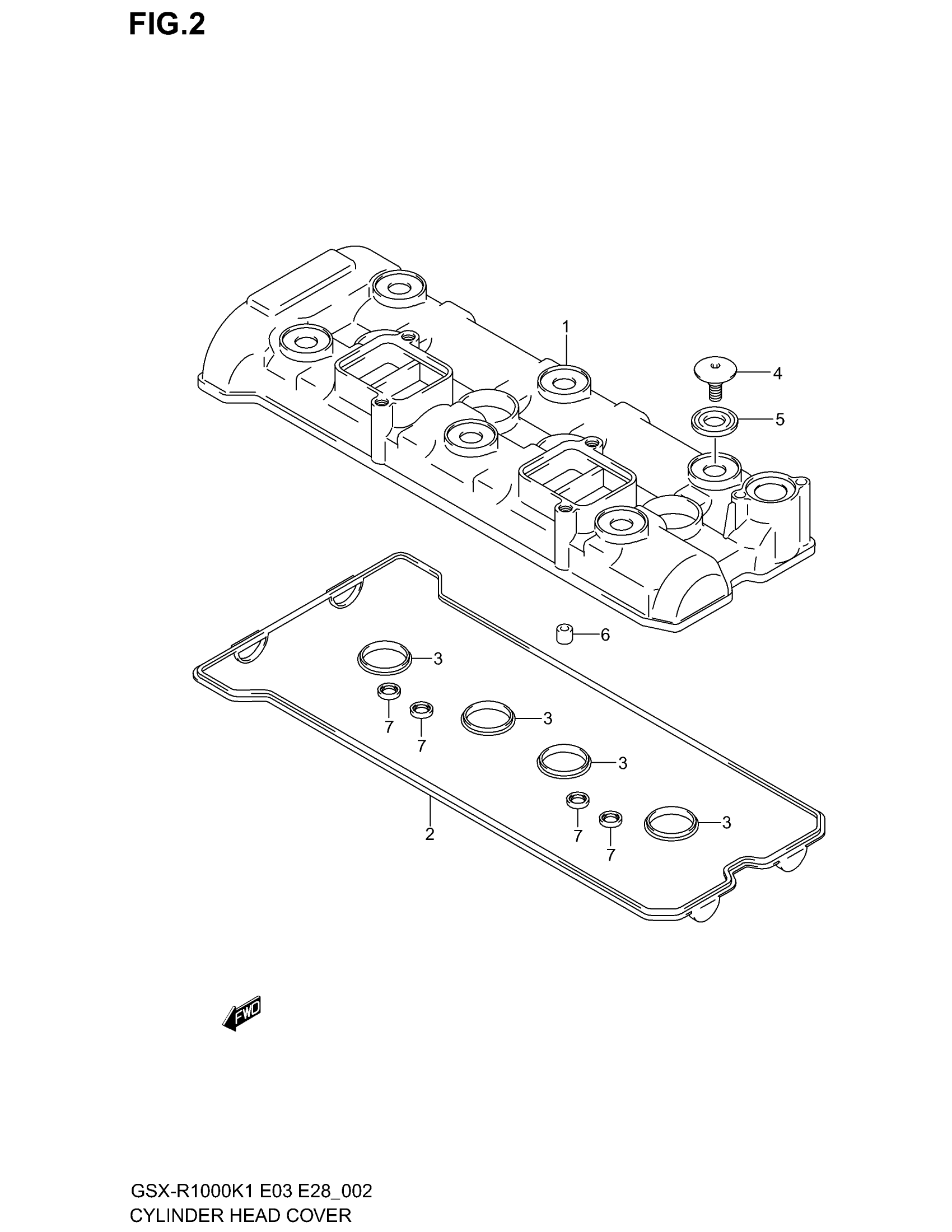

Suzuki GSX-R1000 (2002) CYLINDER HEAD COVER Diagram

#

Description

Price

1

COVER, CYLINDER HEAD

11171-35F00

Unavailable

2

GASKET, HEAD COVER NO.1

11173-35F00

$47.42

3

GASKET, HEAD COVER NO.2

11178-33E00

$5.93

4

BOLT (7X17.5) This part replaces 09106-07009.

09106-07021

$4.19

5

WASHER

09161-11008

$4.17

6

PIN

09206-08007

$2.72

7

GASKET, 2ND AIR PASSAGE

11182-35F00

$3.15
