2002 Suzuki GSX-R1000 Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 2002 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

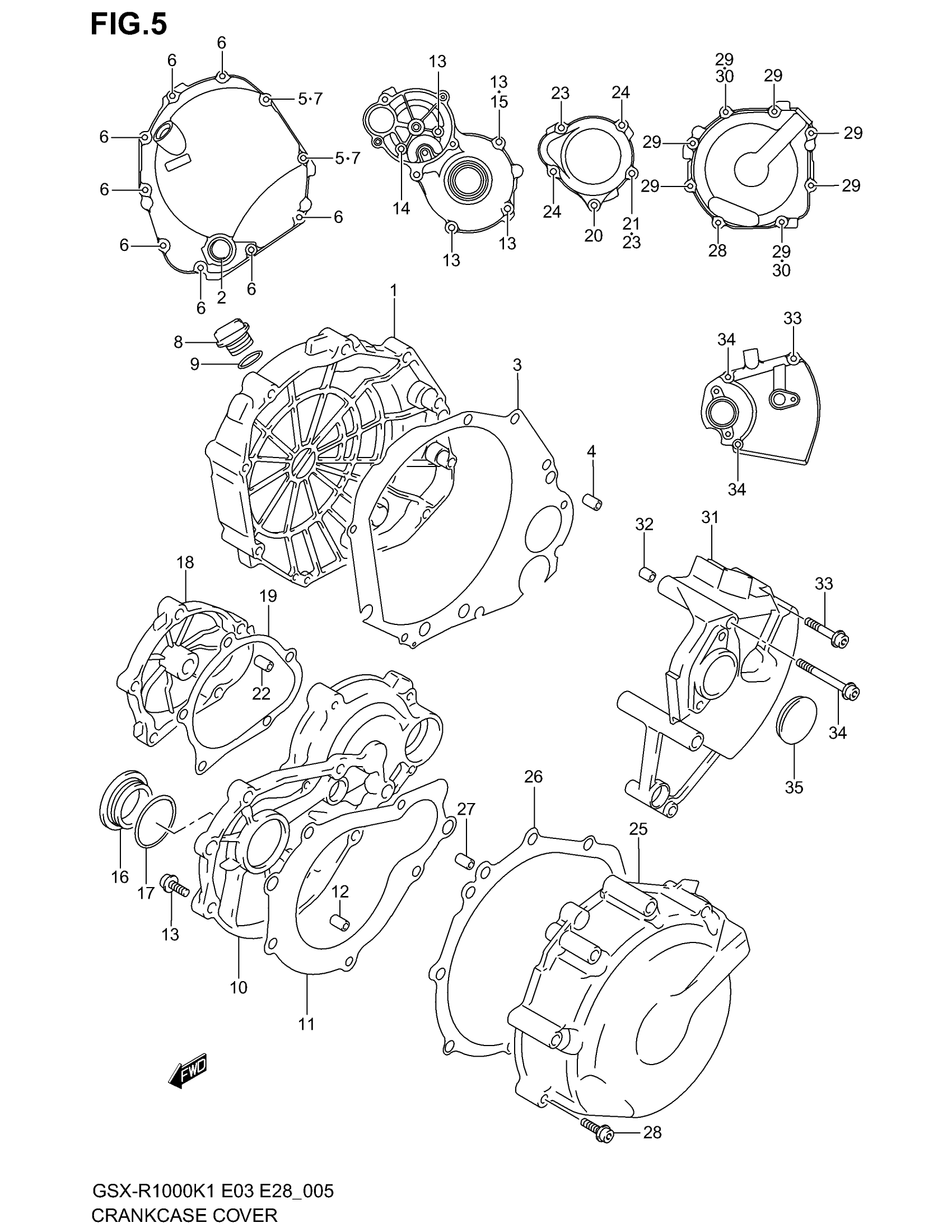

2002 Suzuki GSX-R1000 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH | Includes Item(s) 2

11340-40F00

1
Out of stock

2

LENS, OIL LEVEL

11971-33210

1
Out of stock

3

.GASKET, CLUTCH COVER This part replaces 11482-40F00.

11482-40F10

1
Out of stock

4

PIN

04211-09189

2

$1.77

In stock

5

GASKET (5.8X13X1.2)

09168-06023

2
Out of stock

6

BOLT This part replaces 07120-06303.

07120-0630B

8
Out of stock

7

BOLT This part replaces 07120-06303.

07120-0630B

2
Out of stock

8

PLUG, ENGINE OIL FILTER

11971-12C51

1
Out of stock

9

O RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

10

COVER, STARTER CLUTCH This part replaces 11381-35F00.

11381-35F01

1
Out of stock

11

GASKET

11491-33E02

1
Out of stock

12

PIN

04211-09149

2
Out of stock

13

BOLT, CENTER This part replaces 07120-06253.

07120-0625A

4
Out of stock

14

BOLT This part replaces 07120-06353.

07120-0635B

1
Out of stock

15

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

16

PLUG, SHAFT HOLE | MODEL K1

09259-36016-20H

1
Out of stock

16

1

$13.37

In stock

17

.O-RING (D:3.1,ID:32.7)

09280-33004

1
Out of stock

18

CAP, STARTER IDLE GEAR

11382-33E00

1
Out of stock

19

GASKET

11492-33E00

1
Out of stock

20

BOLT This part replaces 07120-06553.

07120-0655B

1
Out of stock

21

GASKET, BOLT (5.8X13X1.2)

09168-06023

1
Out of stock

22

PIN

04211-09149

2
Out of stock

23

BOLT, CENTER This part replaces 07120-06253.

07120-0625A

2
Out of stock

24

BOLT This part replaces 07120-06353.

07120-0635B

2
Out of stock

25

COVER, MAGNETO

11351-35F02

1
Out of stock

26

GASKET

11483-35F00

1
Out of stock

27

PIN

04211-09149

2
Out of stock

28

BOLT This part replaces 07120-06303.

07120-0630B

1
Out of stock

29

BOLT This part replaces 07120-06453.

07120-0645B

7
Out of stock

30

GASKET (5.8X13X1.2)

09168-06023

2
Out of stock

31

COVER, ENGINE SPROCKET This part replaces 11361-40F00.

11361-40F01

1
Out of stock

32

PIN

04211-09129

2
Out of stock

33

BOLT This part replaces 07120-06553.

07120-0655B

2
Out of stock

34

2

$5.75

In stock

35

CAP, CLUTCH RELEASE ADJUST

09250-30003

1
Out of stock
