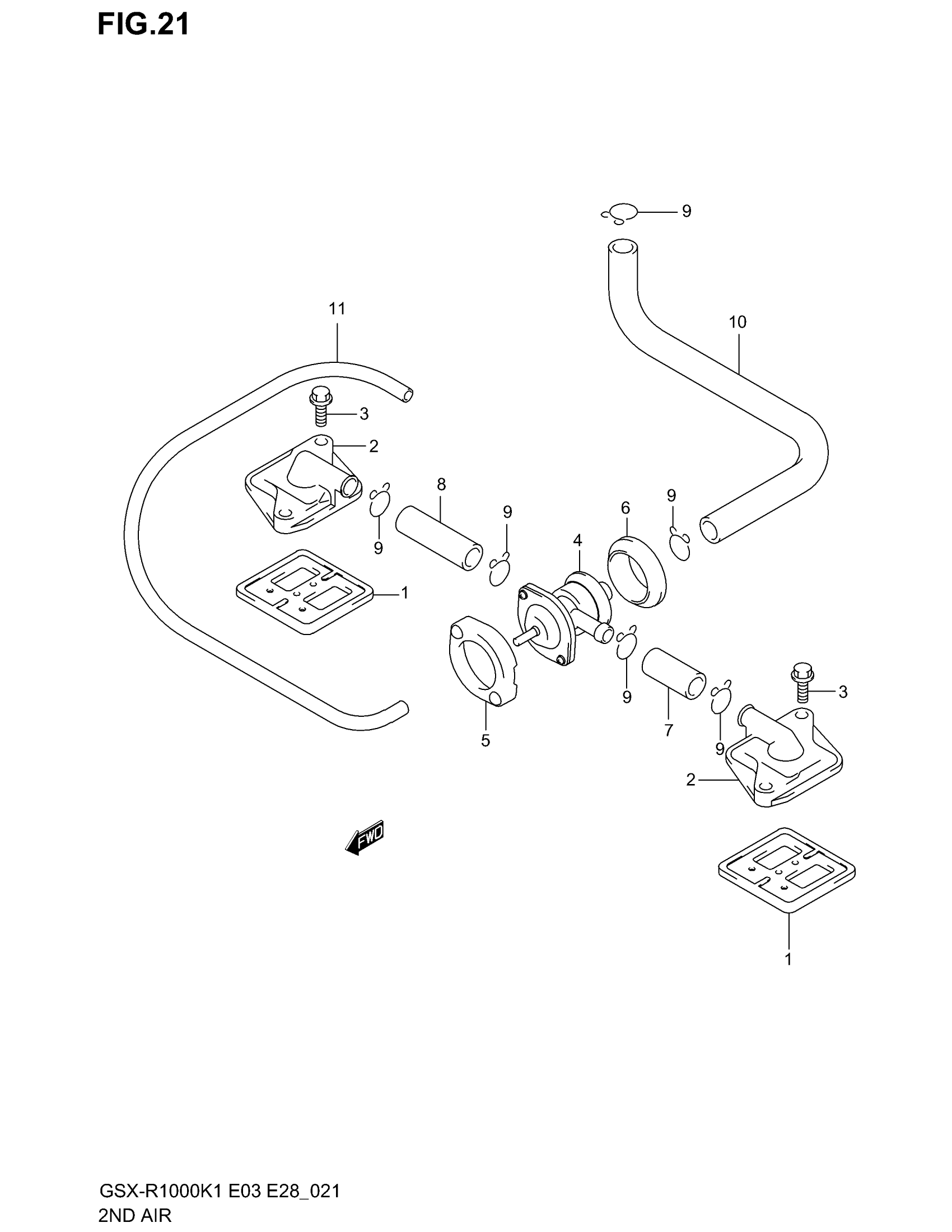

Find the part on the 2ND AIR diagram for your 2002 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Suzuki GSX-R1000 2ND AIR Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE ASSY, 2ND AIR REED

18450-35F00

2
Out of stock

2

COVER, REED VALVE

18531-35F10

2
Out of stock

3

BOLT (6X20) This part replaces 09103-06217.

09103-06201

4
Out of stock

4

VALVE ASSY, AIR CUT

18510-35F00

1
Out of stock

5

CUSHION, AIR CUT VALVE UPPER

18516-35F00

1
Out of stock

6

CUSHION, AIR CUT VALVE LOWER

18517-35F00

1
Out of stock

7

HOSE, LH (11X16X600) | L:600!30

09355-11165-600

1
Out of stock

8

HOSE, RH (11X16X600) | L:600!50

09355-11165-600

1
Out of stock

9

CLIP

09401-15101

6
Out of stock

10

HOSE,2ND AIR CL This part replaces 18711-35F00.

18711-35F01

1
Out of stock

11

HOSE (3.5X7.5X600) | L:600!530 This part replaces 09355-35755-600.

09355-35007-600

1
Out of stock
