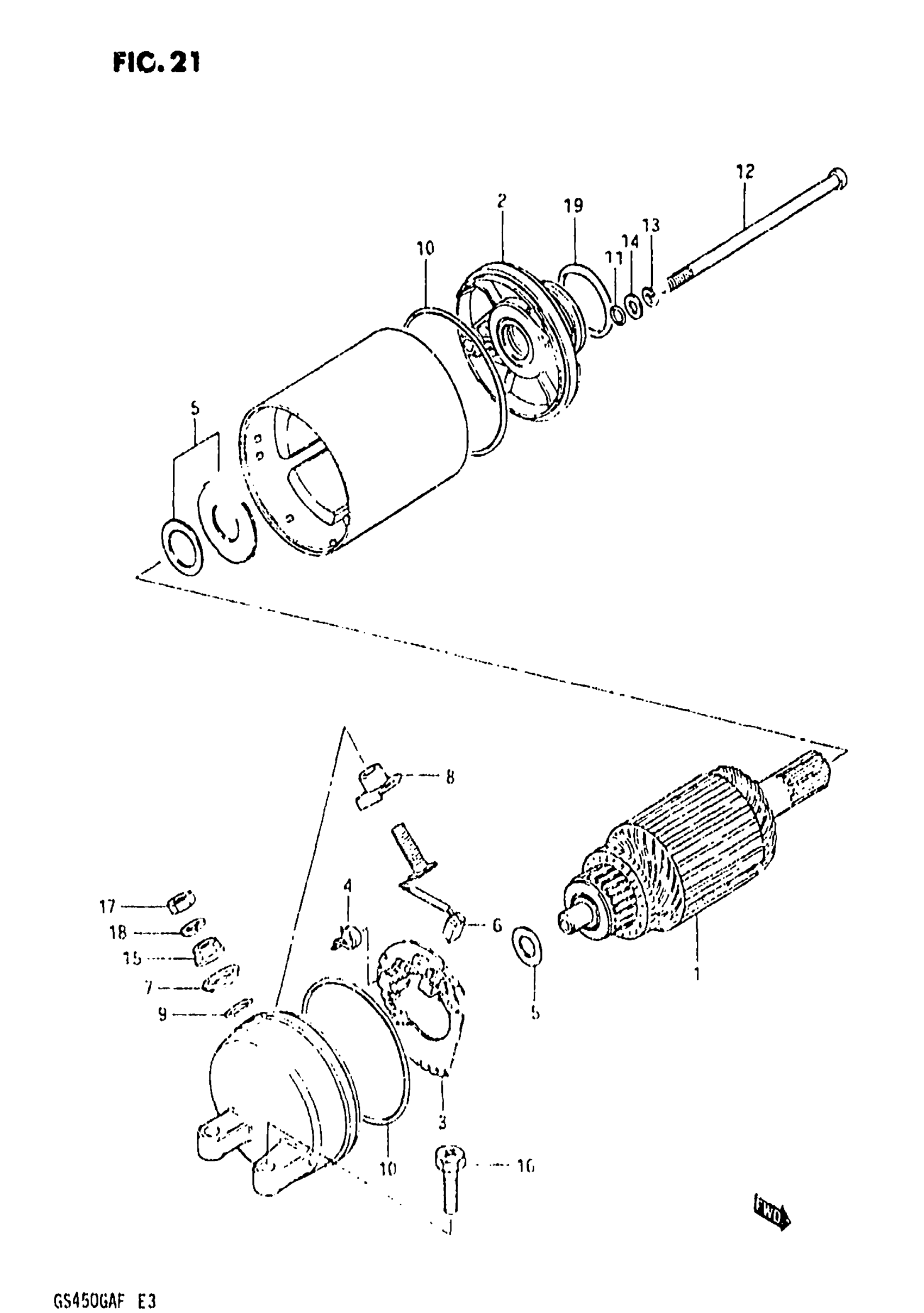

Suzuki GS450GA (1985) STARTING MOTOR Diagram

#

Description
Price

MOTOR ASSY,STAR | Includes Item(s) 1 - 16 This part replaces 31100-43401.

31100-30B00-H17

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 31310-43400.

31310-43401-H17

Unavailable

2

BRACKET SET

31150-43400

Unavailable

3

BRUSH HOLDER ASSY This part replaces 31132-44110.

31132-27A01

$83.02

4

SPRING, BRUSH

31135-65010

$5.10

5

SHIM SET

31170-43400

Unavailable

6

BRUSH (+)

31130-38300

$20.82

7

BUSHING (A)

31172-38300

$5.24

8

BUSHING (B)

31171-38300

$10.08

9

O RING

31143-38300

$5.75

10

O RING

31264-44110

$13.40

11

O RING

31156-38300

$5.10

12

BOLT This part replaces 31281-05300.

31281-88C00

Unavailable

13

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.83

14

WASHER

31161-38300

Unavailable

15

NUT This part replaces 09159-06017.

08319-31067

$2.01

16

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

$2.53

17

NUT This part replaces 08310-22066.

08310-0006B

$2.37

18

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.83

19

.O-RING (D:3,ID:24.5)

09280-24003

$1.55
