1985 Suzuki GS450GA Rear Combination Diagram

← All diagrams

Find the part on the Rear Combination diagram for your 1985 Suzuki GS450GA, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

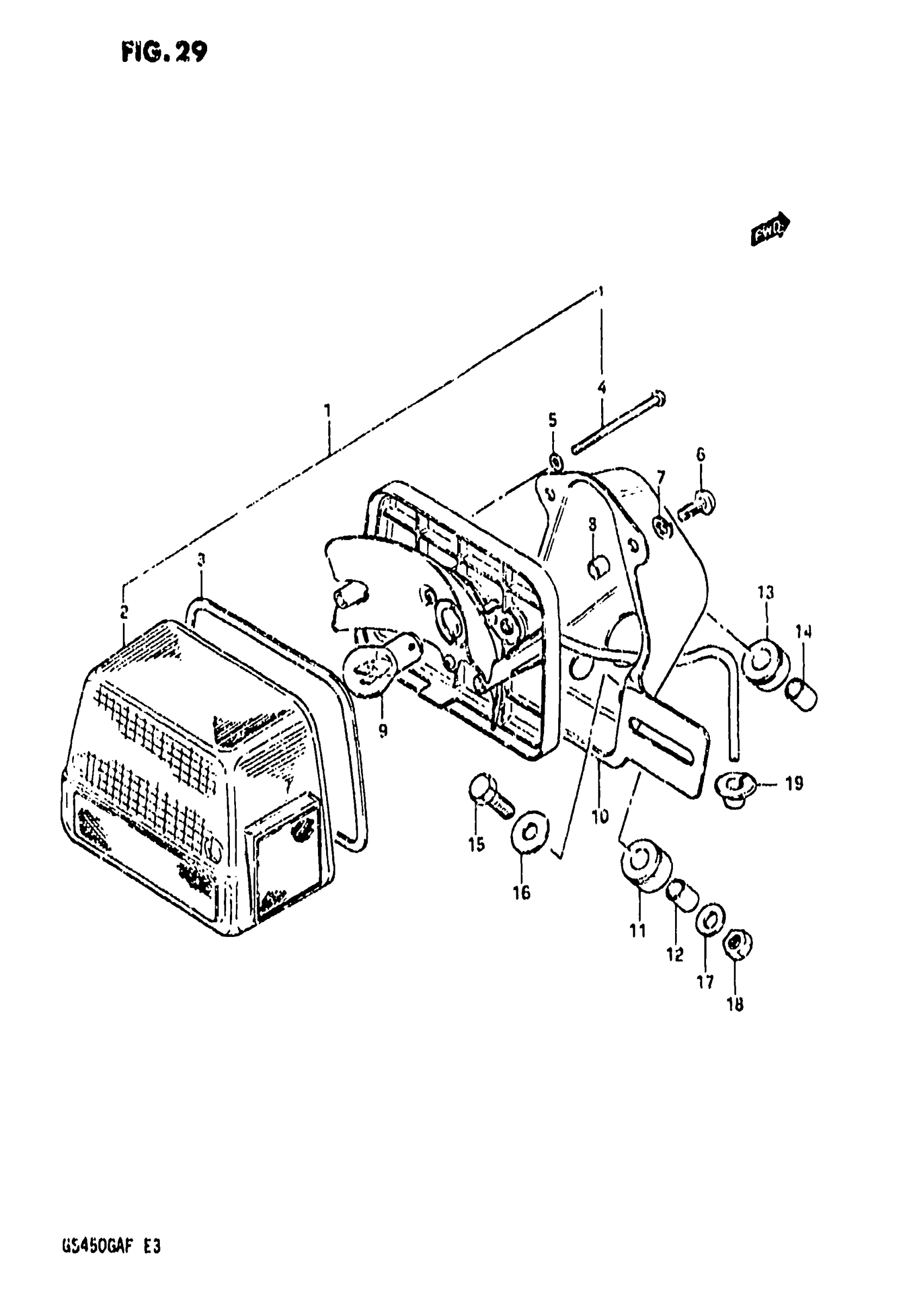

1985 Suzuki GS450GA Rear Combination Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP UNIT, REAR COMBINATION | Includes Item(s) 2 - 8

35720-49130-999

1
Out of stock

2

LENS

35712-49130

1
Out of stock

3

GASKET

35713-49130

1
Out of stock

4

SCREW

35723-44130

2

$2.50

In stock

5

GASKET

35627-43010

2

$2.65

In stock

6

2

$2.10

In stock

7

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

8

SPACER

35766-39210

2
Out of stock

9

BULB (12V,23/8W)

09471-12035

1
Out of stock

10

BRACKET

35726-49130

1
Out of stock

11

CUSHION

35765-11900

2
Out of stock

12

SPACER

35766-11900

2
Out of stock

13

CUSHION

35765-22210

1

$3.95

In stock

14

SPACER

35766-37120

1
Out of stock

15

3

$2.10

In stock

16

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

3
Out of stock

17

.WASHER This part replaces 08322-21066.

08322-0106B

3
Out of stock

18

NUT This part replaces 08310-11066.

08310-0006A

3
Out of stock

19

GROMMET, LEAD WIRE

09308-07004

2

$2.58

In stock
