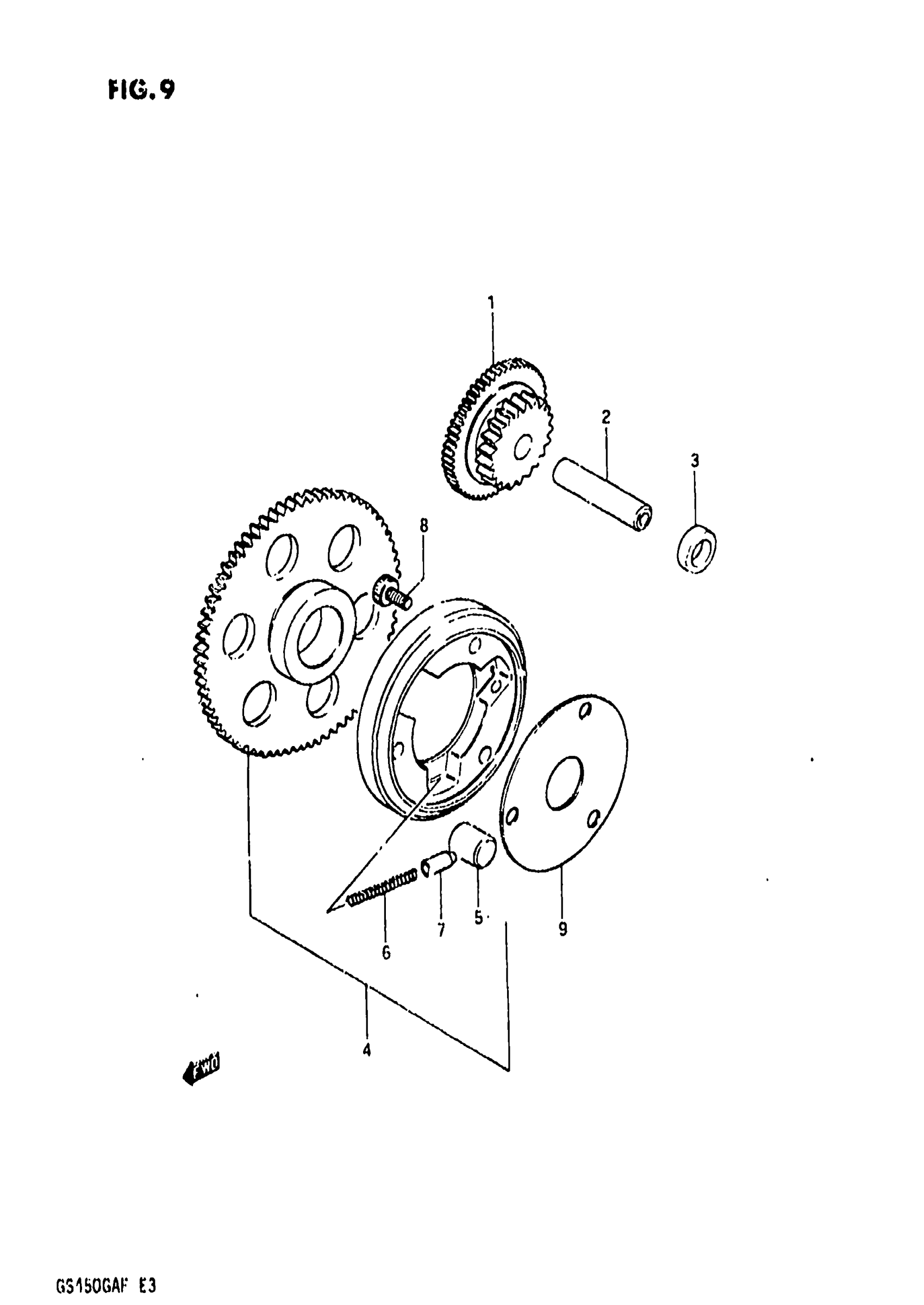

Suzuki GS450GA (1985) STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, TACHO. IDLE (NT:45/19)

12611-44100

Unavailable

2

PIN

09206-13003

$17.07

3

SPACER

09180-14010

Unavailable

4

CLUTCH SET,STAR | Includes Item(s) 5 - 7 This part replaces 12600-44830.

12600-44836

$426.15

5

ROLLER

09261-15001

$3.01

6

SPRING

09440-04015

$2.24

7

PIECE, PUSH

12633-31000

$8.27

8

BOLT This part replaces 09106-08043.

07130-0816A

$2.90

9

SHIM

12649-45000

$10.35
