1985 Suzuki GS450GA Left Handle Switch Diagram

← All diagrams

Find the part on the Left Handle Switch diagram for your 1985 Suzuki GS450GA, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

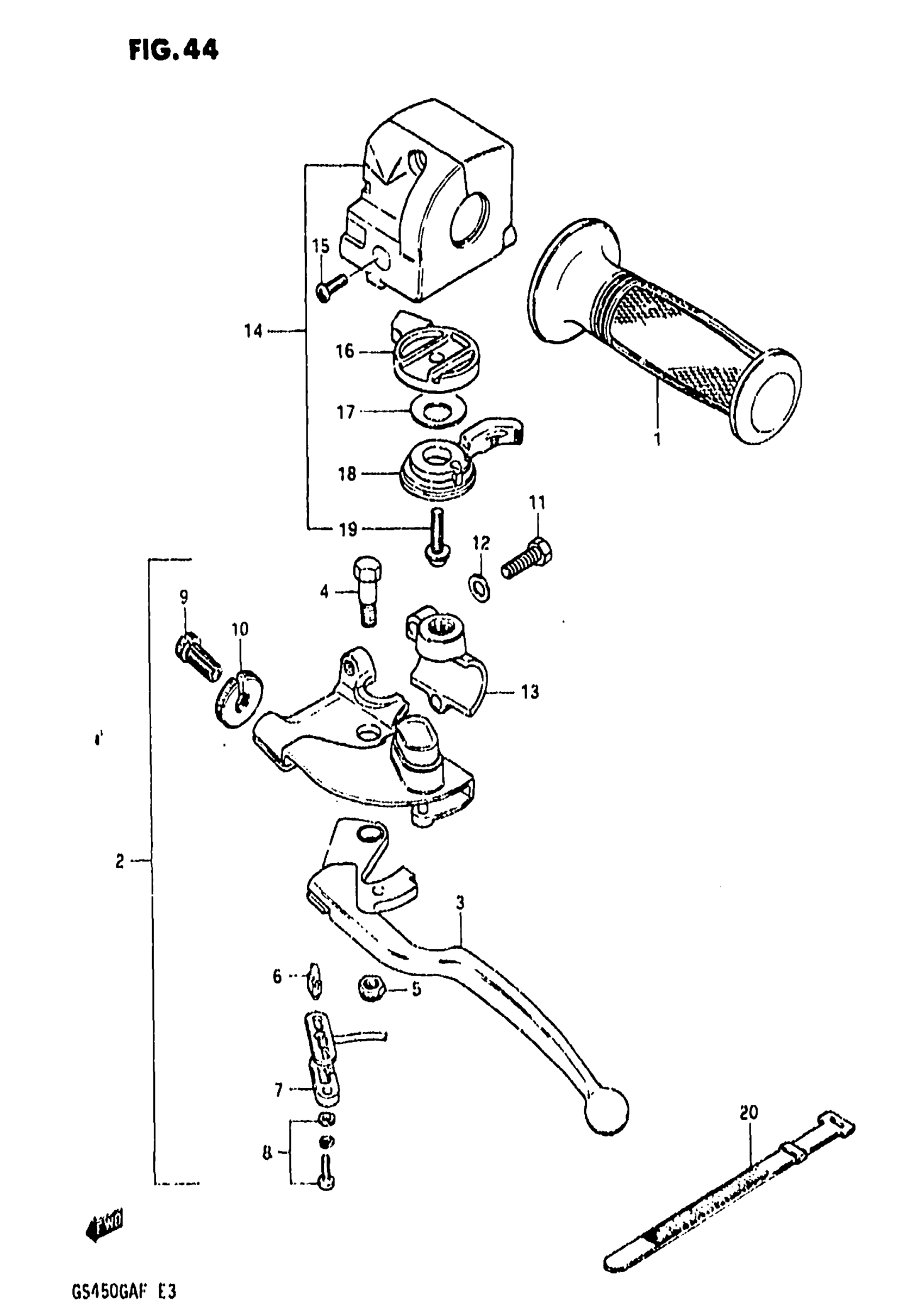

1985 Suzuki GS450GA Left Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP, LH This part replaces 57211-15500.

57211-49500

1
Out of stock

2

LEVER ASSY, PARKING BRAKE | Includes Item(s) 3 - 13

57500-44501

1
Out of stock

3

LEVER, PARKING

57620-44500

1
Out of stock

4

BOLT This part replaces 57431-33450.

57531-14A00

1
Out of stock

5

.NUT This part replaces 08319-21065.

08319-2106B

1
Out of stock

6

HOLDER

57465-18601

1
Out of stock

7

COVER

57481-33010

1
Out of stock

8

SCREW

57484-49110

2
Out of stock

9

ADJUSTER, CABLE

57441-44400

1

$8.33

In stock

10

NUT This part replaces 57442-44400.

57442-11010

1
Out of stock

11

BOLT, GEAR SHIFT LINK This part replaces 01107-06205.

01500-0620A

1
Out of stock

12

.WASHER This part replaces 08322-21064.

08322-0106B

1
Out of stock

13

HOLDER

57512-44500

1
Out of stock

14

SWITCH ASSY, HANDLE LH | Includes Item(s) 15 - 19

37400-44530

1
Out of stock

15

SCREW This part replaces 02112-05168.

02112-05167

2
Out of stock

16

BODY

37572-49441

1
Out of stock

17

WASHER

58722-03010

1
Out of stock

18

LEVER

58721-27503

1
Out of stock

19

SCREW This part replaces 37574-49440.

02112-7516A

1
Out of stock

20

BAND (L:120)

09407-12402

2
Out of stock
