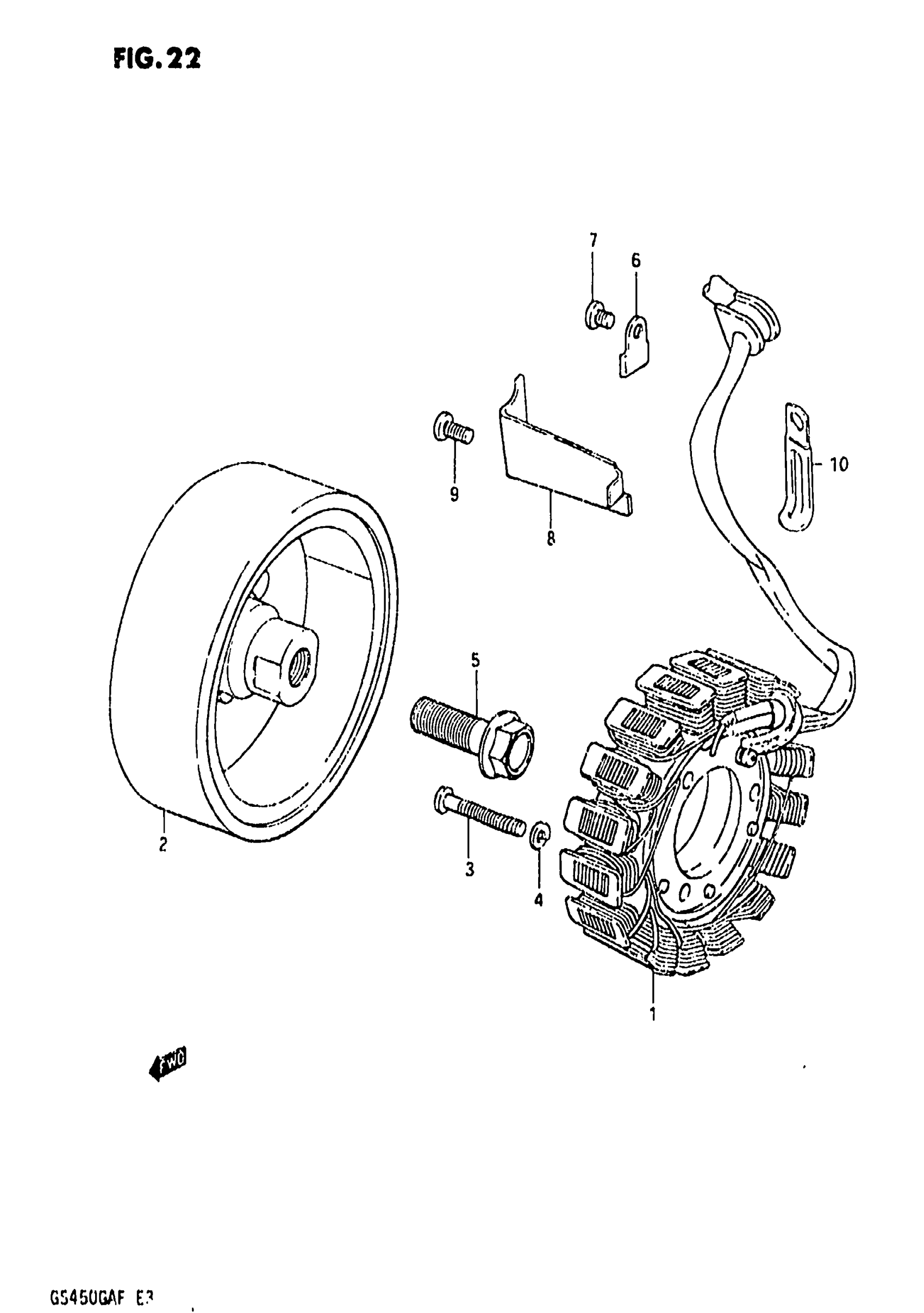

Suzuki GS450GA (1985) GENERATOR Diagram

#

Description

Price

1

STATOR

31401-47030

Unavailable

2

ROTOR This part replaces 31402-47030.

31402-45030

Unavailable

3

SCREW This part replaces 02112-05308.

02112-0530A

$1.93

4

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.83

5

BOLT

09103-12004

$4.35

6

CLAMP

31497-45000

$2.17

7

SCREW This part replaces 02112-05088.

02112-05087

$1.45

8

CLAMP

31498-45000

$2.06

9

SCREW This part replaces 02112-06108.

02112-06107

$1.45

10

CLAMP This part replaces 09404-06401.

09404-06039

$1.73
