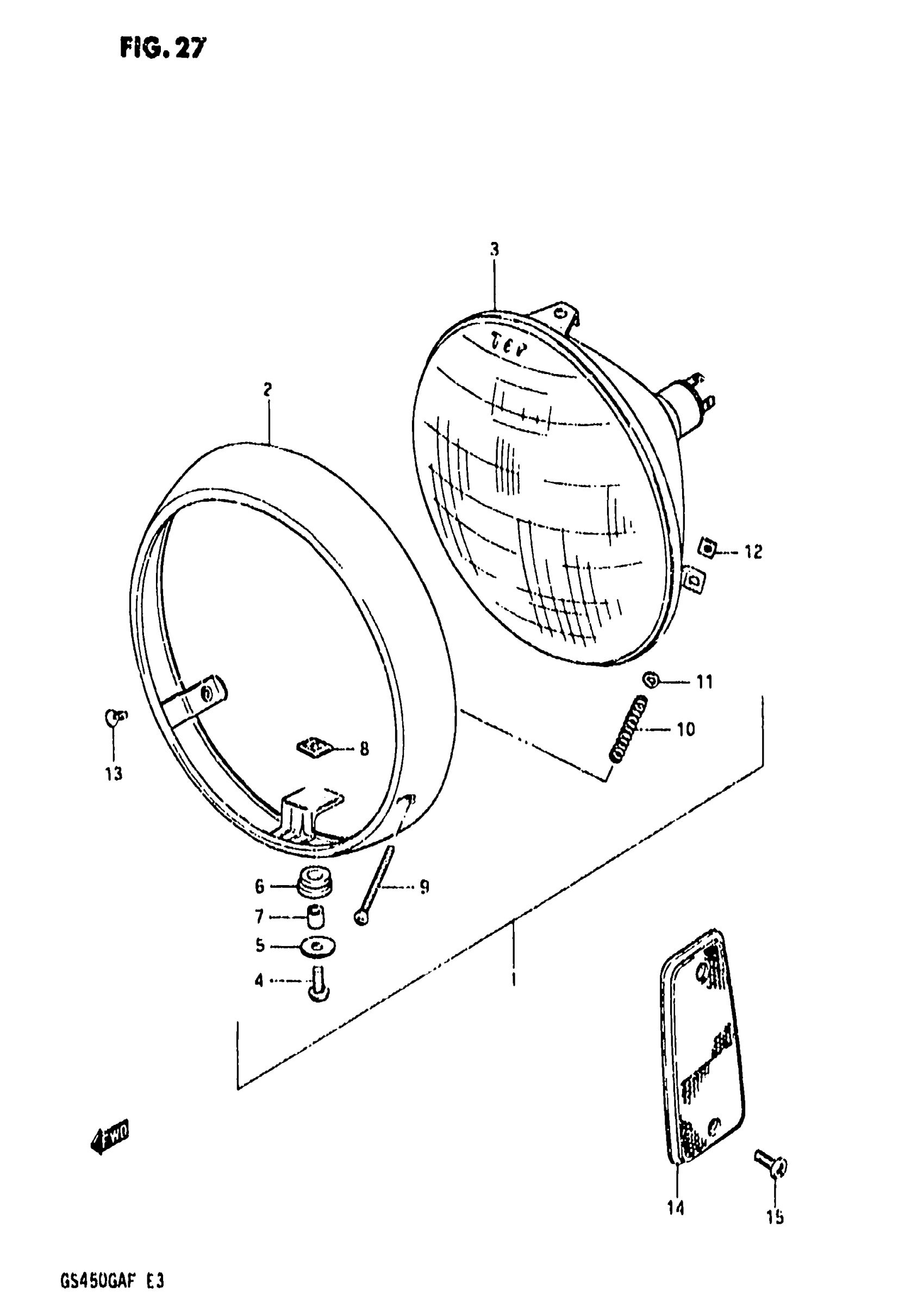

Suzuki GS450GA (1985) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 12

35100-38330

Unavailable

2

RIM

35111-45231

Unavailable

3

UNIT, SCALED BEAM | 12V,50/35W

35121-44230

Unavailable

4

SCREW This part replaces 02112-05168.

02112-05167

$1.97

5

WASHER (5.5X18X1) This part replaces 35138-45230.

09160-05045

$1.95

6

CUSHION

35139-45230

$2.25

7

SPACER

35133-45230

$3.72

8

NUT

35155-48510

$2.58

9

SCREW

35151-45230

Unavailable

10

SPRING

35154-48510

Unavailable

11

WASHER

35157-27630

$3.67

12

NUT This part replaces 35152-48510.

35135-45600

$4.12

13

SCREW

09127-05013

$1.38

14

REFLEX REFLECTOR, FRONT SIDE

35950-44530

Unavailable

15

SCREW This part replaces 02112-04108.

02112-04107

$1.55
