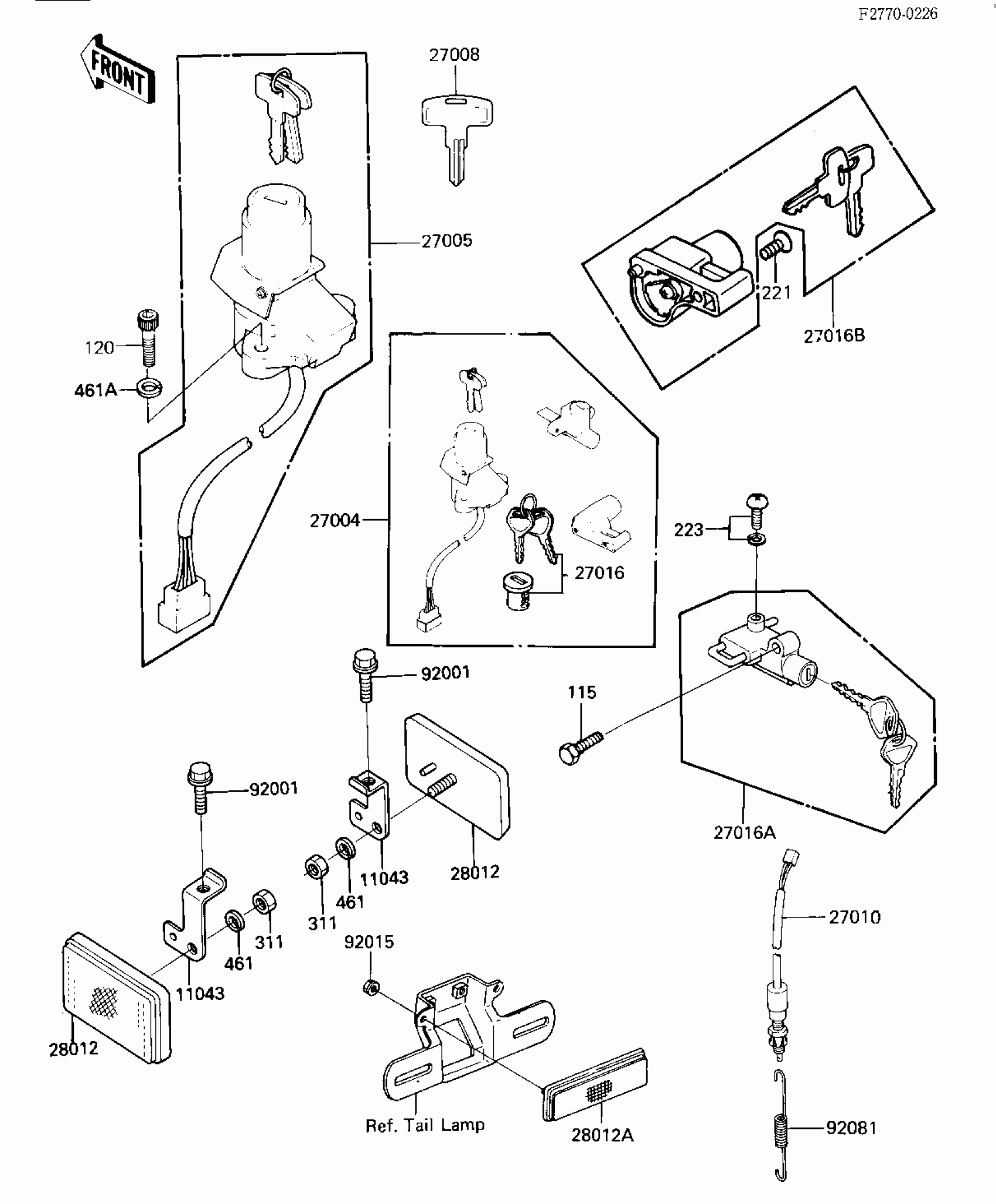

Find the part on the Ignition Switch/locks/refectors diagram for your 1986 Kawasaki GPZ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki GPZ Ignition Switch/locks/refectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11043

1

$10.24

In stock

27004

SWITCH-ASSY

27004-5203

1

$388.23

In stock

27005

SWITCH-ASSY-IGNITION

27005-5047

1
Out of stock

27008

KEY-LOCK,BLANK

27008-1103

1

$18.83

In stock

27010

SWITCH,BRAKE LAMP

27010-1093

1

$27.22

In stock

27016

LOCK-ASSY,FUEL TANK

27016-5068

1

$101.48

In stock

27016A

LOCK-ASSY,SEAT

27016-5069

1
Out of stock

27016B

LOCK-ASSY,HELMET

27016-5067

1

$97.30

In stock

28012

REFLECTOR-REFLEX

28012-1003

1

$20.69

In stock

28012A

REFLECTOR-REFLEX,RR

28012-1005

1
Out of stock

92001

BOLT,6X14,BLACK

92001-1847

1

$3.58

In stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92081

1

$6.75

In stock

115

BOLT-SMALL-UPSET,8X30

115C0830

1
Out of stock

120

BOLT-SOCKET,6X16

120T0616

1
Out of stock

221

SCREW-CSK-CROS

221C0516

1
Out of stock

223

1

$3.28

In stock

311

NUT-HEX

311B0500

1

$0.51

In stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock

461A

WASHER-SPRING

461L0600

1

$0.68

In stock
