1982 Kawasaki GPZ Taillight Diagram

← All diagrams

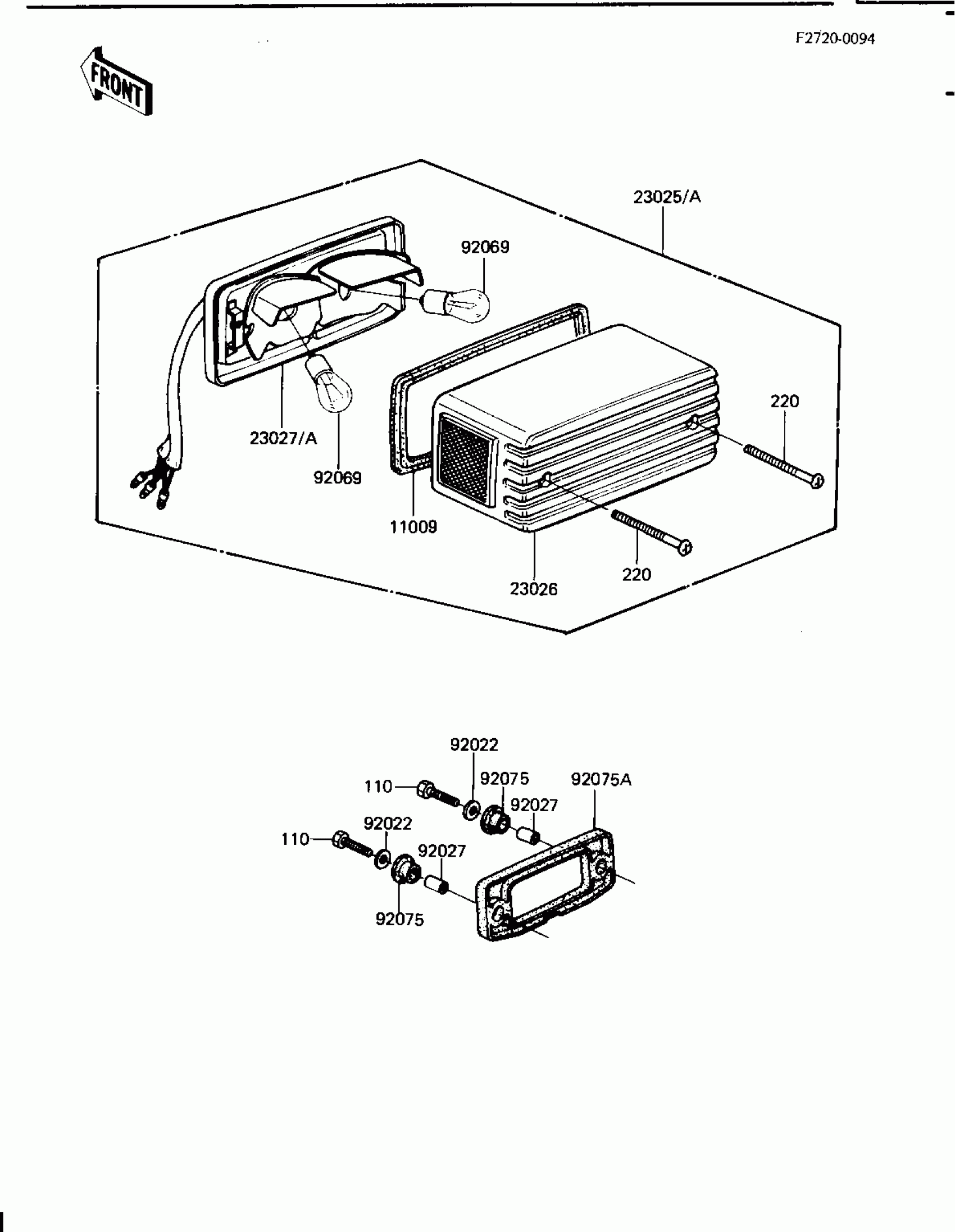

Find the part on the Taillight diagram for your 1982 Kawasaki GPZ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Kawasaki GPZ Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,TAIL LAMP

11009-1221

1

$14.05

In stock

23025A

LAMP-TAIL,BLACK

23025-1038

1
Out of stock

23026

LENS,TAIL LAMP

23026-1021

1

$141.52

In stock

23027A

1

$152.55

In stock

92022

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

92027

COLLAR,6.8X10X17.6

92027-1316

1

$10.47

In stock

92069

BULB,12V 27/8W

92069-059

1

$6.45

In stock

92075

DAMPER RUBBER

92075-1092

1
Out of stock

92075A

DAMPER

92075-1282

1
Out of stock

110

BOLT-UPSET

112G0625

1
Out of stock

220

SCREW-PAN-CROS

220C0465

1
Out of stock
