1983 Kawasaki GPZ Starter Motor/starter Clutch Diagram

← All diagrams

Find the part on the Starter Motor/starter Clutch diagram for your 1983 Kawasaki GPZ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

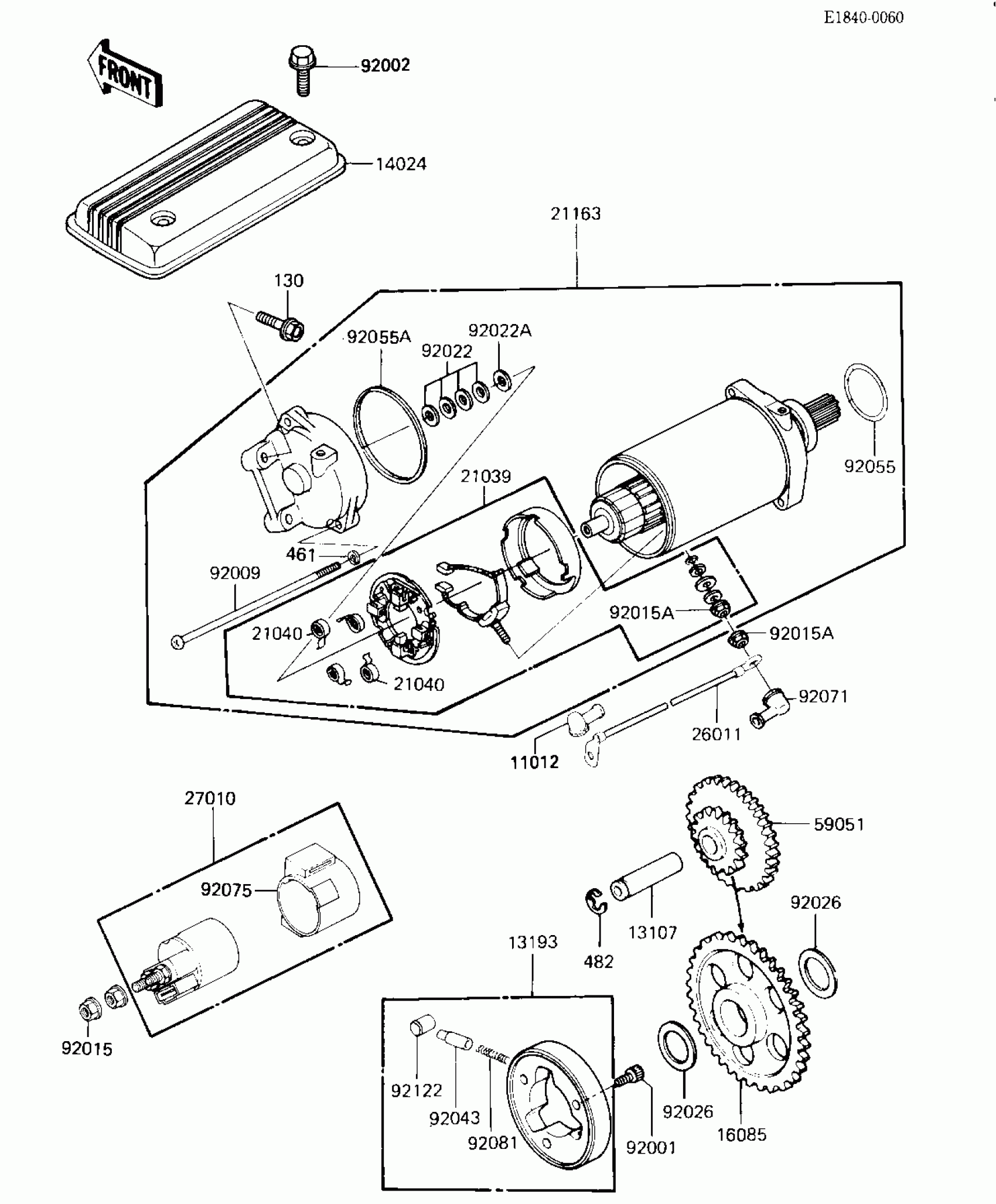

1983 Kawasaki GPZ Starter Motor/starter Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,STARTER COVER

11009-1069

1
Out of stock

11012

CAP,MAGNETIC SWITCH

21141-004

1
Out of stock

13107

SHAFT,STARTER IDLE

13107-1006

1
Out of stock

13193

CLUTCH-ASSY-ONEWAY

13193-1002

1
Out of stock

14025

COVER,STARTER MOTOR

14025-1379

1
Out of stock

16085

GEAR,ONEWAY CLUTCH

16085-1030

1
Out of stock

21039

BRUSH SET,CARBON

21039-1005

1
Out of stock

21040

SPRING,CARBON BRUSH

21040-1002

1
Out of stock

21163

STARTER-ELECTRIC

21163-1031

1
Out of stock

26011

WIRE STRTER MOT LEAD

26010-035

1
Out of stock

26011A

WIRE-LEAD,STARTER MOT

26011-1151

1
Out of stock

27010

SWITCH

27010-1061

1
Out of stock

59051

GEAR-SPUR,STARTER IDLE

59051-1011

1
Out of stock

92001

BOLT,SOCKET,8X10

92001-1424

1
Out of stock

92001A

BOLT,6X10,BLACK

92001-1525

1
Out of stock

92009

SCREW,PAN HEAD,5X110

21015-005

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92015A

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92022

WASHER,9.1X18X0.2

21025-011

1
Out of stock

92022A

WASHER,9.1X18X0.8

92022-1132

1
Out of stock

92026

SPACER,25X36X3.2

92026-1025

1
Out of stock

92043

PIN

92043-132

1
Out of stock

92055

RING-O,STARTER MOTOR,25MM

21027-004

1
Out of stock

92055A

RING-O,64MM

92055-1086

1
Out of stock

92071

CAP,STARTING MOTOR

21017-020

1
Out of stock

92071A

CAP,MAG SWTCH TERMNL

21017-021

1
Out of stock

92075

DAMPER,MAGNETIC SWITCH

21064-002

1
Out of stock

92081

SPRING,COIL

92081-159

1
Out of stock

92122

ROLLER

92122-006

1
Out of stock

130

BOLT-FLANGED,6X55

130G0655

1
Out of stock

312

NUT 6MM

312B0600

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock

482

CIRCLIP 12MM

482K0200

1
Out of stock
