1982 Kawasaki GPZ Generator/regulator Diagram

← All diagrams

Find the part on the Generator/regulator diagram for your 1982 Kawasaki GPZ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

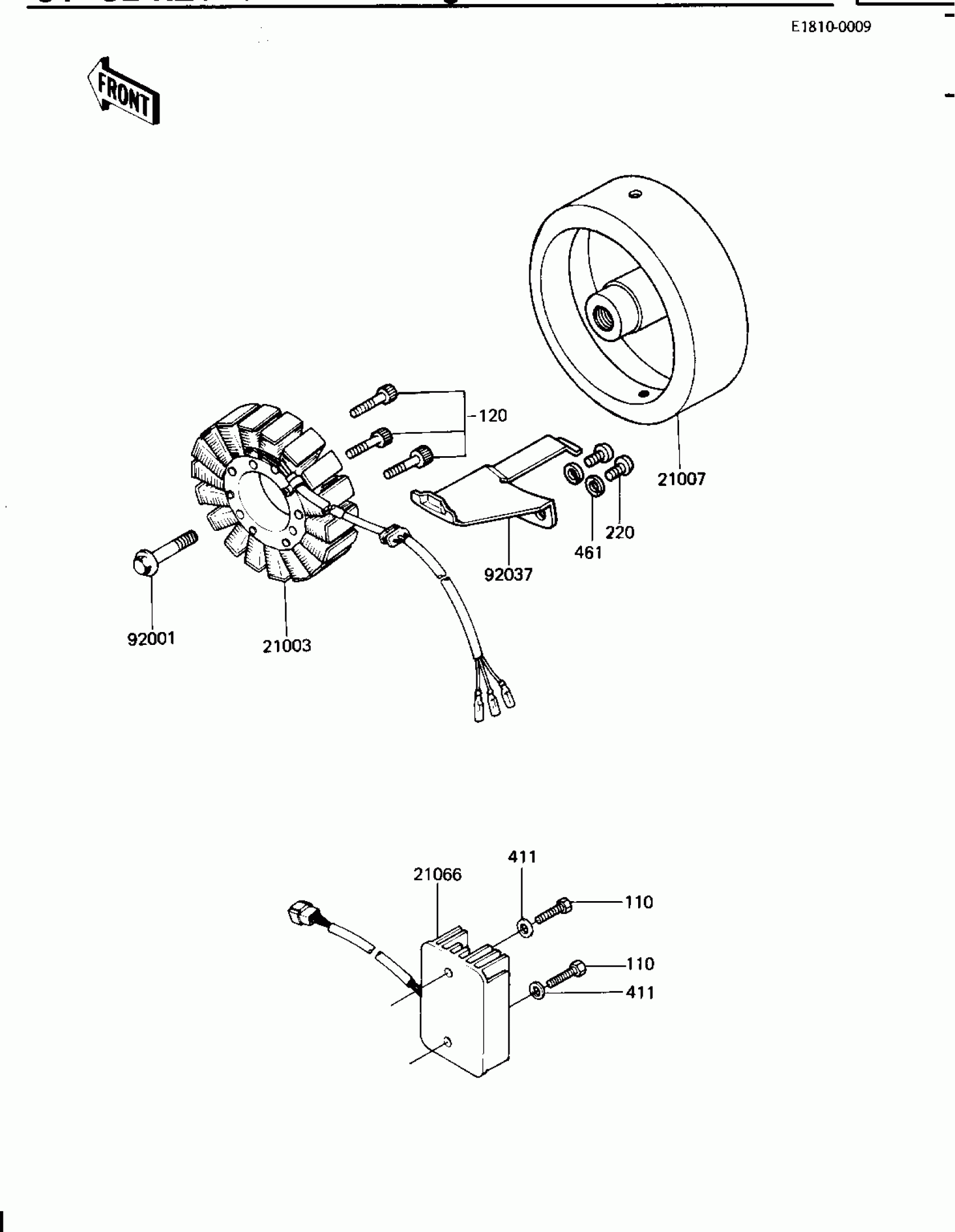

1982 Kawasaki GPZ Generator/regulator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21003

STATOR

21003-1040

1

$638.26

In stock

21007

ROTOR

21007-1036

1

$700.52

In stock

21066

REGULATOR-VOLTAGE

21066-1018

1

$268.62

In stock

92001

BOLT,FLANGED,12X40

92001-1146

1

$9.58

In stock

92037

CLAMP,HARNESS

92037-1214

1
Out of stock

110

BOLT-UPSET 6X14

112B0614

1
Out of stock

120

BOLT-SOCKET,6X30

120P0630

1
Out of stock

220

SCREW-PAN-CROS

220B0512

1

$0.51

In stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock
