1983 Kawasaki GPZ Meters Diagram

← All diagrams

Find the part on the Meters diagram for your 1983 Kawasaki GPZ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

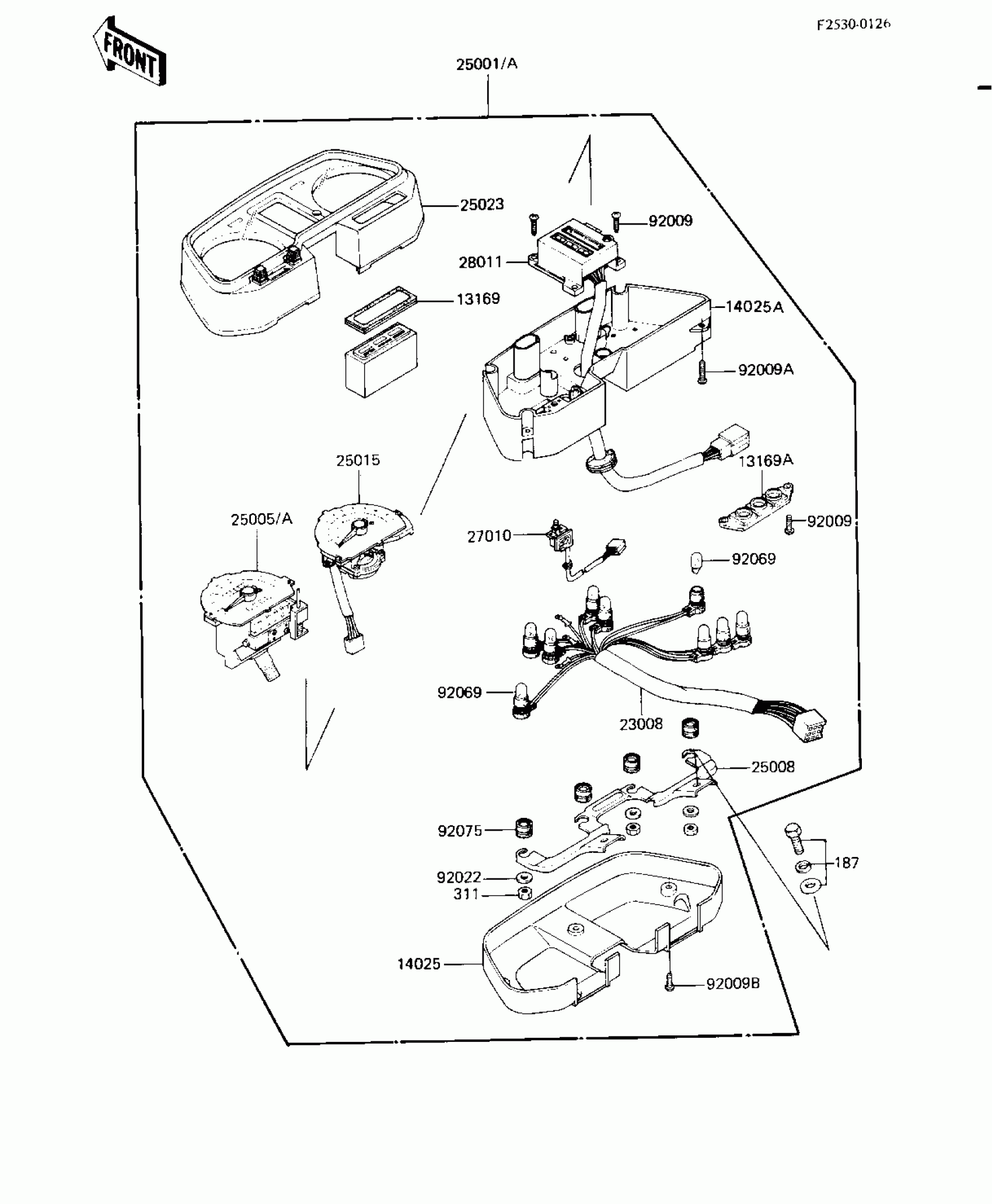

1983 Kawasaki GPZ Meters Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14025

COVER,METER,LWR

14025-1473

1
Out of stock

14025A

COVER,METER UNIT

14025-1951

1
Out of stock

23008

SOCKET-ASSY-METER

23008-1152

1

$105.32

In stock

25001

METER-ASSY,MPH

25001-1312

1

$1,000.41

In stock

25001A

METER-ASSY,KPH (Canada)

25001-1340

1
Out of stock

25005

SPEEDOMETER,MPH

25005-1175

1

$493.22

In stock

25005A

SPEEDOMETER,KPH (Canada)

25005-1176

1
Out of stock

25008

BRACKET-METER

25008-1057

1

$43.29

In stock

25015

TACHOMETER

25015-1230

1

$397.06

In stock

25023

COVER-METER CASE,UPP

25023-1124

1
Out of stock

27010

SWITCH,TACHO/VOLT

27010-1062

1
Out of stock

28011

METER,FUEL&WARNING

28011-1028

1

$560.38

In stock

92009

SCREW,TAPPING,4X14,YELLOW

92009-1140

1
Out of stock

92009A

SCREW,TAPPING,4X20

92009-1141

1
Out of stock

92009B

SCREW,TAPPING,4X12,BLACK

92009-1142

1
Out of stock

92022

WASHER,5.2X16X1.2

92022-263

1
Out of stock

92069

BULB,12V 3.4W,T10

92069-1007

1

$3.97

In stock

92075

1

$4.51

In stock

187

BOLT 6X14

187B0614

1
Out of stock

311

NUT-HEX

311B0500

1

$0.51

In stock
