1983 Kawasaki GPZ Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1983 Kawasaki GPZ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

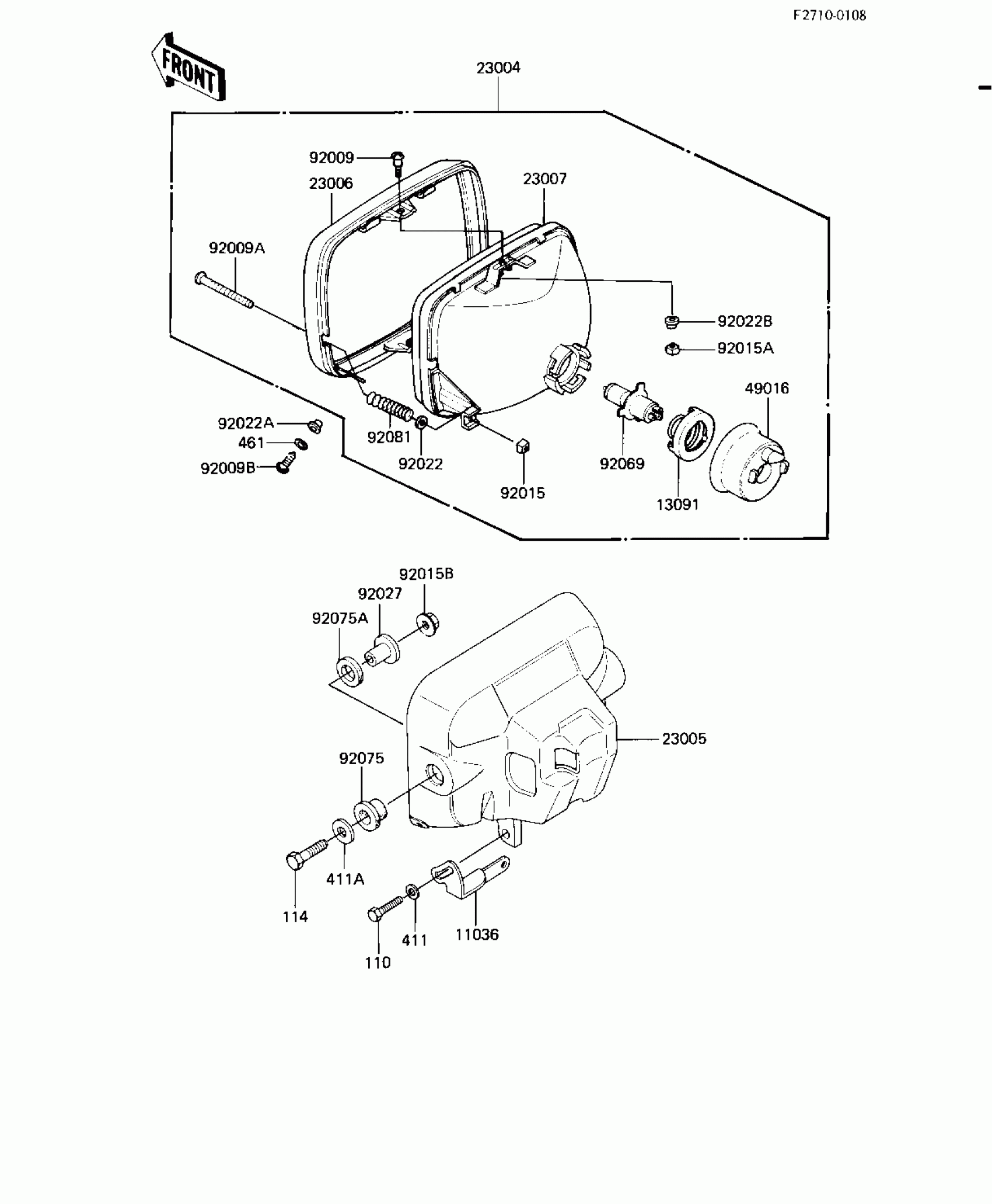

1983 Kawasaki GPZ Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11036

BRACKET-A

11036-1358

1
Out of stock

13091

HOLDER,HEAD LAMP SOCK

13091-1036

1
Out of stock

23004

LAMP-HEAD

23004-1116

1

$693.74

In stock

23005

BODY-COMP-HEAD LAMP,B

23005-1023-6Z

1
Out of stock

23006

RIM-LAMP,BLACK

23006-1024

1
Out of stock

23007

LENS-COMP

23007-1041

1

$247.81

In stock

49016

COVER,HEAD LAMP SOCKE

49016-1023

1
Out of stock

92009

1

$4.78

In stock

92009A

SCREW,4MM,FOCUS ADJUST

92009-1047

1
Out of stock

92009B

SCREW,5MM

92011-024

1
Out of stock

92015

1

$3.69

In stock

92015A

NUT,5MM

23020-023

1
Out of stock

92015B

NUT,FLANGED,8MM

92015-1014

1
Out of stock

92022

WASHER,4.1X8X0.8

23021-004

1
Out of stock

92022A

WASHER

23021-010

1

$3.43

In stock

92022B

WASHER,PLAIN,5MM

23021-012

1
Out of stock

92027

COLLAR,L=20

92027-1131

1

$8.71

In stock

92069

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

92075

1

$5.42

In stock

92075A

1

$4.42

In stock

92081

1

$4.10

In stock

110

BOLT-UPSET 6X14

112B0614

1
Out of stock

114

BOLT-SMALL-UPSET

115C0835

1
Out of stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock

411A

WASHER PLAIN

411F0800

1
Out of stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock
