1982 Kawasaki GPZ Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 1982 Kawasaki GPZ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

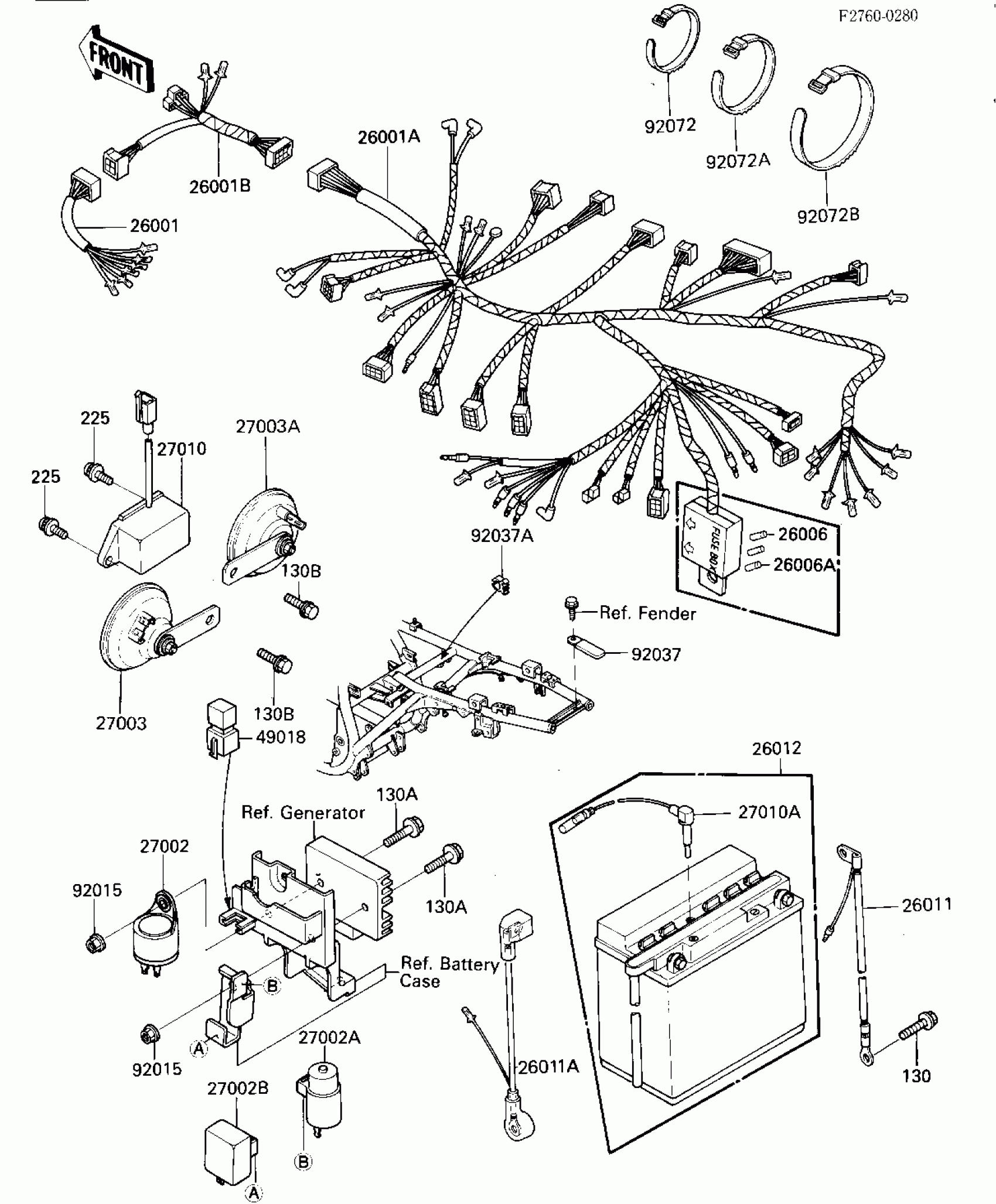

1982 Kawasaki GPZ Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

26001A

1

$253.22

In stock

26001C

HARNESS,MAIN

26001-1366

1

$240.88

In stock

26004B

FUSE-ASSY,ACCESSORY

26004-1016

1
Out of stock

26004C

FUSE-ASSY

26004-1017

1
Out of stock

26006

FUSE,10A,L=25

26006-003

1

$3.74

In stock

26006A

1

$4.05

In stock

26006B

FUSE,30A,L=25

26006-1005

1
Out of stock

26011A

WIRE-LEAD,BATTERY,(-)

26011-1119

1
Out of stock

26011C

1

$42.84

In stock

26012B

1

$74.02

In stock

26012C

26012-1013 (Canada)

26012-1054

1
Out of stock

27002

RELAY-ASSY,TURN SIGNAL

27002-011

1
Out of stock

27002A

RELAY,TURN SIGNAL

27002-016

1
Out of stock

27003A

HORN,DOUBLE

27003-1143

1
Out of stock

27010

SWITCH,RESERVE LIGHTI

27010-1024

1
Out of stock

56037

LABEL-WARNING,BATTERY

56040-1036

1
Out of stock

92001

BOLT,6X10

92001-137

1

$5.66

In stock

92072

BAND,L=149

92072-031

1

$3.97

In stock

92072A

BAND,L=218

92072-032

1

$3.97

In stock

92072B

BAND,L=186

92072-056

1

$3.97

In stock

110

BOLT-UPSET,6X12

112G0612

1
Out of stock

110A

BOLT 6X22

112B0622

1
Out of stock

114

BOLT-SMALL,8X16,BLACK

115C0816

1
Out of stock

220

1

$4.61

In stock

410

1

$1.19

In stock

410A

WASHER,PLAIN,8MM

92022-1554

1
Out of stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock

461A

WASHER-SPRING,8MM,BLACK

461K0800

1
Out of stock
