1972 Yamaha GP292 OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 1972 Yamaha GP292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

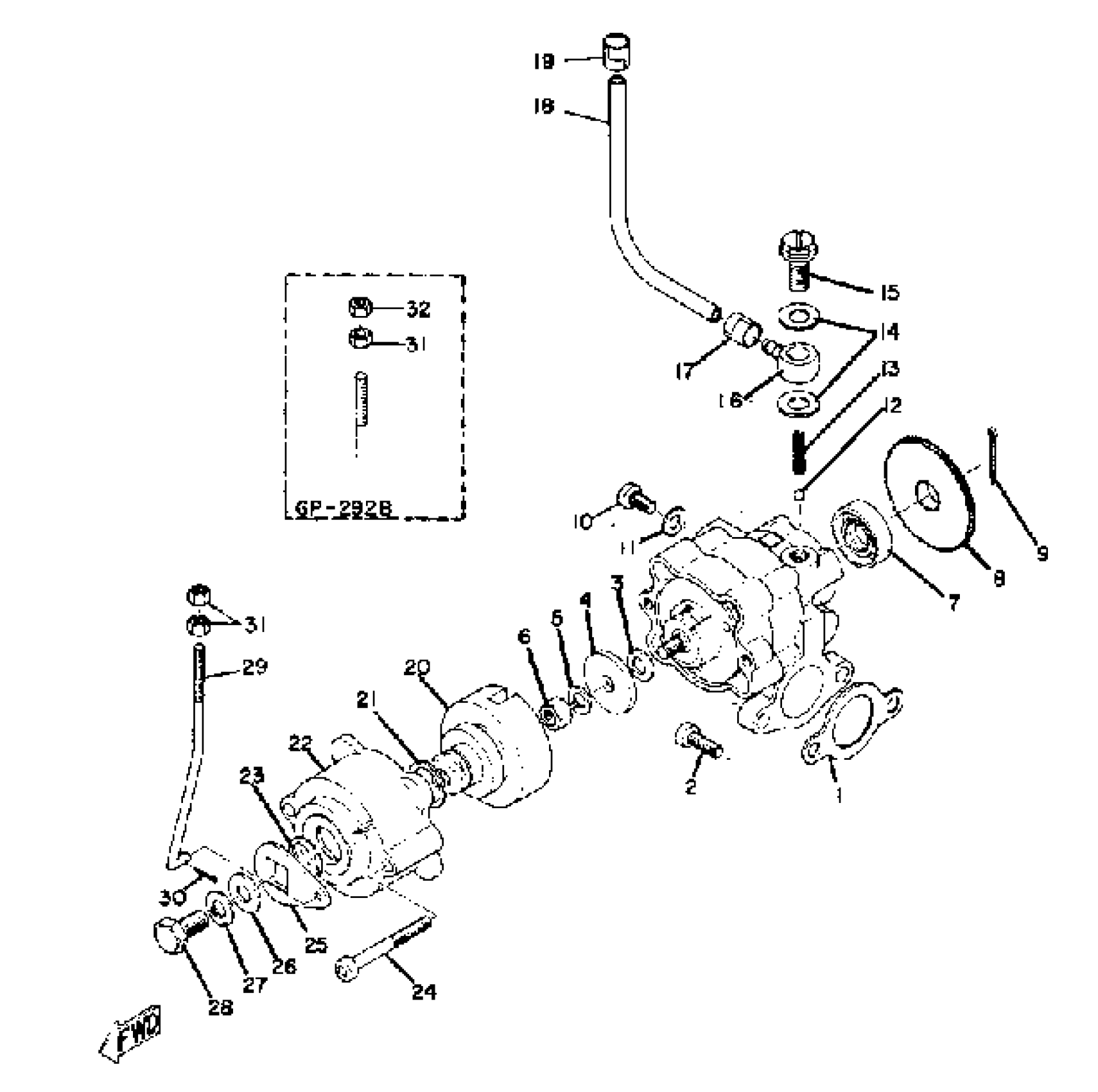

1972 Yamaha GP292 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

1

OIL PUMP ASSEMBLY

823-13101-00-00

1
Out of stock

1

OIL PUMP ASSEMBLY

845-13101-00-00

1
Out of stock

2

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

3

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

4

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

7

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

8

PLATE, STARTER

(137-13128-00-00)

1
Out of stock

9

. PIN, COTTER

91401-12018-00

1
Out of stock

10

SCREW, BIND

98980-04008-00

1

$3.26

In stock

11

GASKET 137131870000

90430-04004-00

1
Out of stock

12

BALL

93505-32002-00

1

$2.22

In stock

13

SPRING, COMPRESSION

(90501-02017-00)

1
Out of stock

14

GASKET(3FP)

90430-06224-00

—

$4.32

In stock

15

BOLT UNION 137131650000

90401-06001-00

—

$7.48

In stock

16

BANJO, DELIVERY PIPE

214-13162-01-00

—

$26.11

In stock

17

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

18

HOSE (L700)

90445-05M07-00

1
Out of stock

19

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

20

SHAFT, PUMP CONTROL

(812-13153-00-00)

1
Out of stock

21

SHIM

(812-13147-00-00)

1
Out of stock

22

COVER, AJST PULLEY

(812-13146-00-00)

1
Out of stock

23

CIRCLIP(J51)

99080-09600-00

—

$1.88

In stock

24

SCREW, PAN

98507-04030-00

1

$1.51

In stock

25

LEVER, PUMP CONTROL

(812-13156-00-00)

1
Out of stock

26

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

27

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

28

BOLT (661)

97013-06012-00

—

$4.71

In stock

29

ROD, PUMP CONTROL

823-13157-00-00

1
Out of stock

30

. PIN, COTTER

91490-12012-00

1

$2.77

In stock

31

NUT, HEXAGON (807-13139-00)

90170-03008-00

1
Out of stock

31

NUT, HEXAGON (807-13139-00)

90170-03008-00

1
Out of stock

32

NUT, SELF-LOCKING (838-13139-00)

90185-03007-00

1
Out of stock
