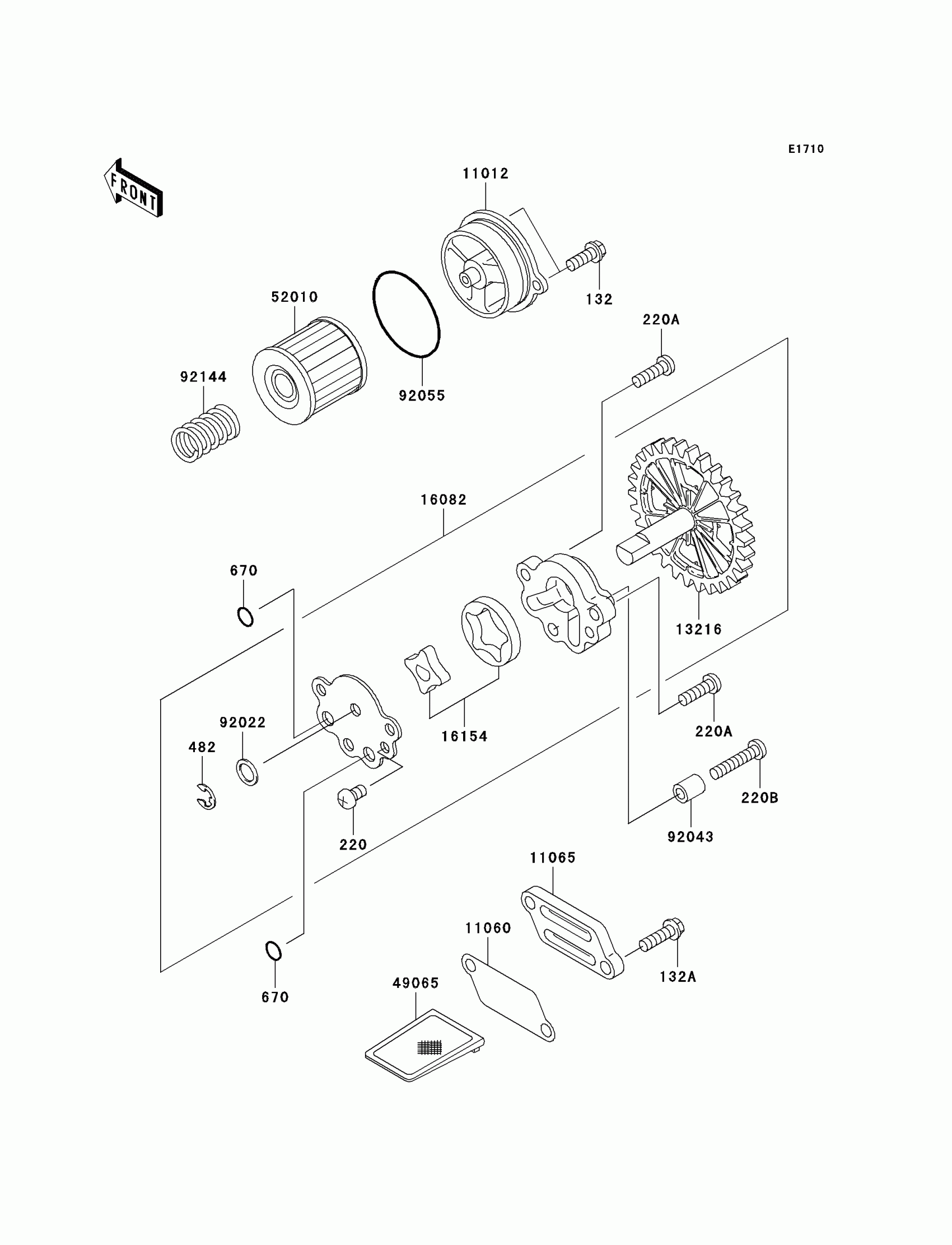

Kawasaki Eliminator 125 Oil Pump/Oil Filter Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X16

132V0616

Unavailable

132A

BOLT-FLANGED-SMALL,6X20

132V0620

Unavailable

220

SCREW PAN HEAD 6X10

220B0610

Unavailable

220A

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.40

220B

SCREW PAN HEAD 6X30

220B0630

Unavailable

482

CIRCLIP-TYPE-E,6MM

482J6000

$0.65

670

O RING,9.8X1.9

670B1510

$3.29

11012

CAP

11012-1971

$44.09

11060

GASKET,OIL FILTER

11060-1768

$1.81

11065

CAP,OIL FILTER

11065-1138

$21.46

13216

GEAR-COMP,OIL PUMP

13216-1167

$47.74

16082

PUMP-ASSY-OIL

16082-1153

$165.16

16154

ROTOR-PUMP

16154-1077

$38.53

49065

FILTER-OIL

49065-1075

Unavailable

52010

ELEMENT-OIL FILTER

52010-1053

$6.94

92022

WASHER,10.2X14.5X1.0

92022-1181

$2.99

92043

PIN,6.2X8X14

92043-1263

$0.46

92055

RING-O,52.6X2.4

92055-1577

$3.57

92144

SPRING

92144-1761

$3.54
