2005 Kawasaki Eliminator 125 Cylinder/piston Diagram

← All diagrams

Find the part on the Cylinder/piston diagram for your 2005 Kawasaki Eliminator 125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

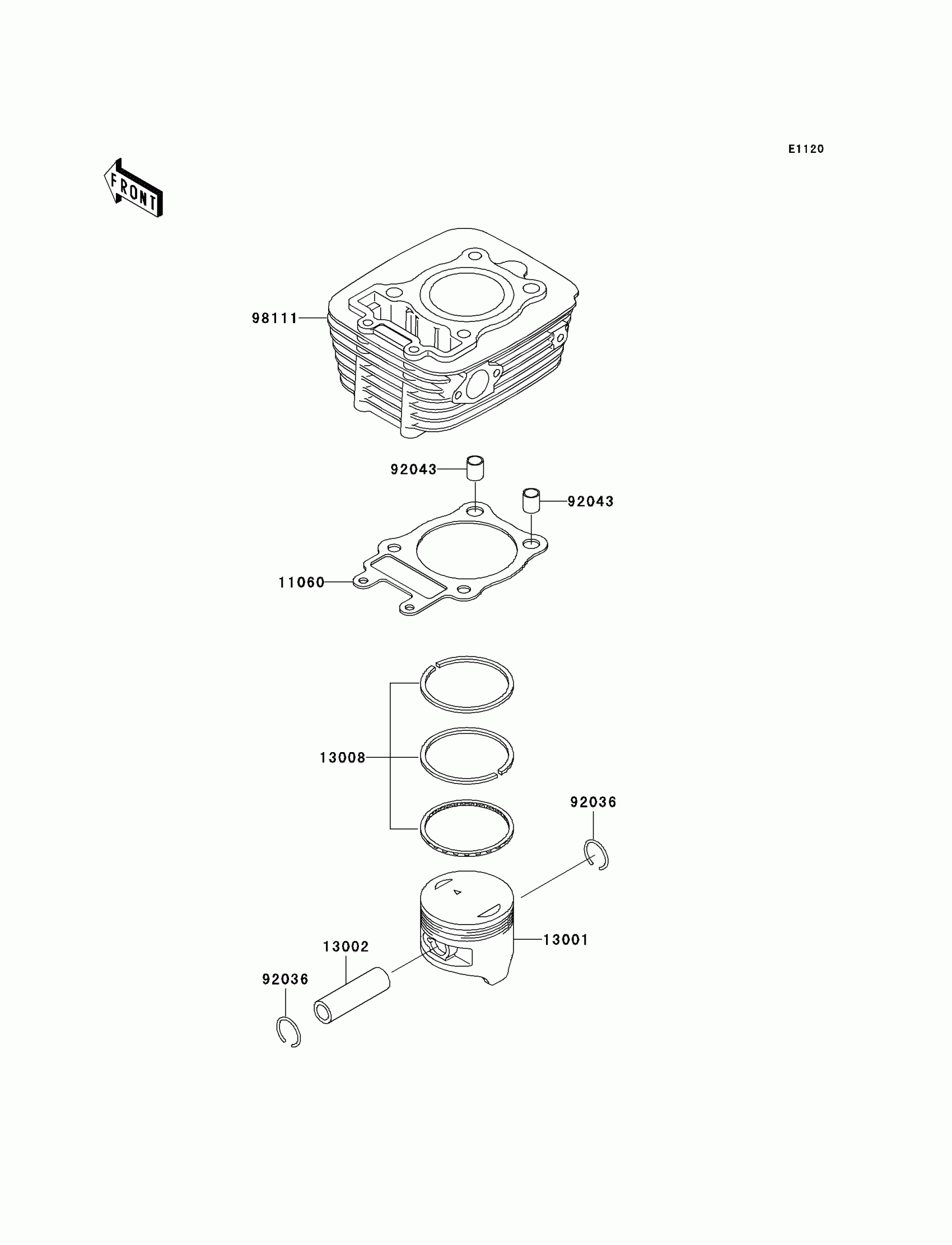

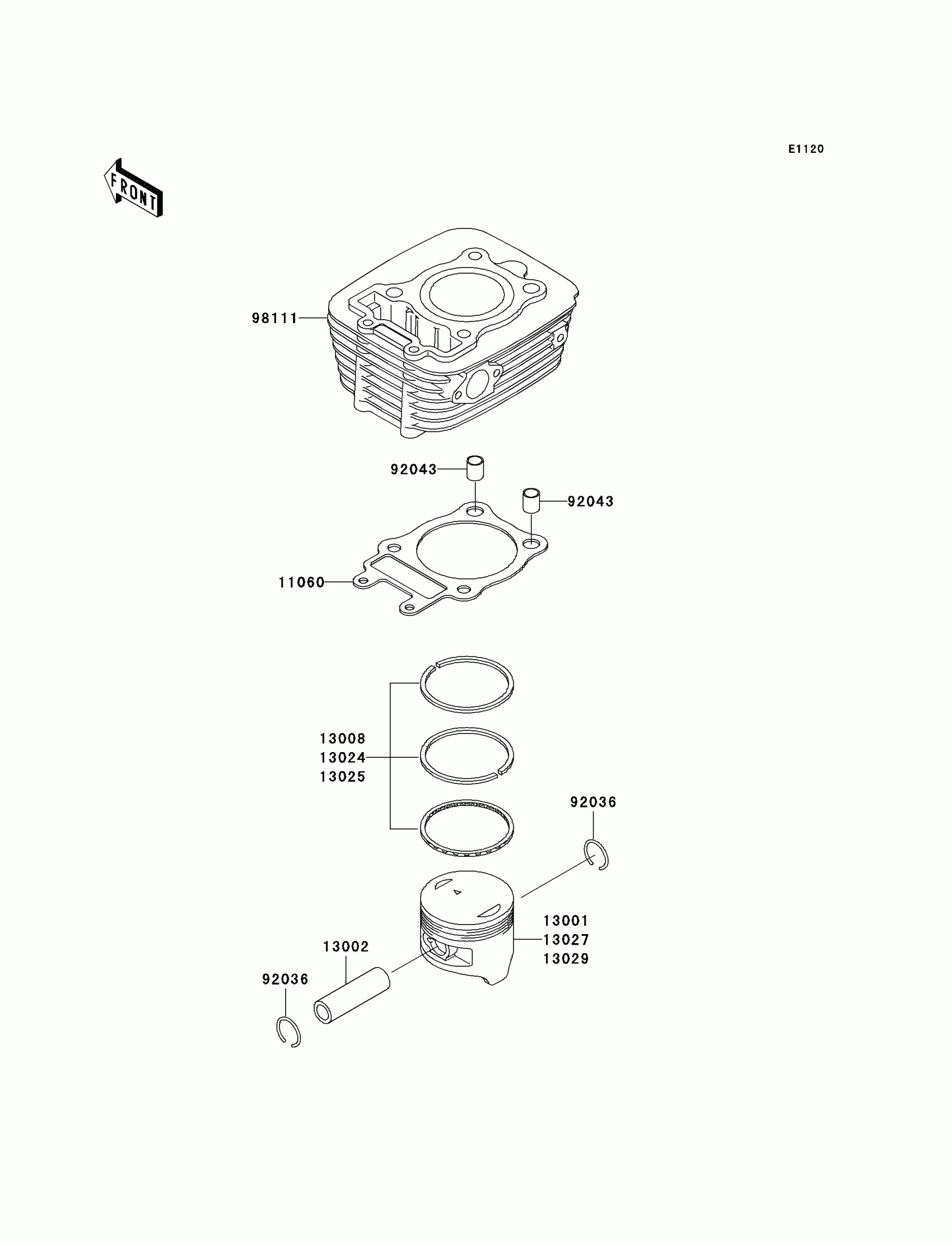

2005 Kawasaki Eliminator 125 Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

1

$7.71

In stock

13001

PISTON-ENGINE,STD

13001-1474

1

$80.02

In stock

13002

PIN-PISTON

13002-1051

1

$23.54

In stock

13008

RING-SET-PISTON

13008-1171

1

$56.55

In stock

13024

RING-SET-PISTON LL,O/S 1.00

13024-1112

—
Out of stock

13025

RING-SET-PISTON L,O/S 0.50

13025-1139

—
Out of stock

13027

PISTON-ENGINE LL,O/S 1.00

13027-1188

—
Out of stock

13029

PISTON-ENGINE L,O/S 0.50

13029-1238

—
Out of stock

92036

RING-SNAP

92036-005

1

$3.24

In stock

92043

PIN,10.1X12X14

92043-4009

1

$4.93

In stock

98111

CYLINDER-COMP-ENGINE

98111-1081

1
Out of stock
