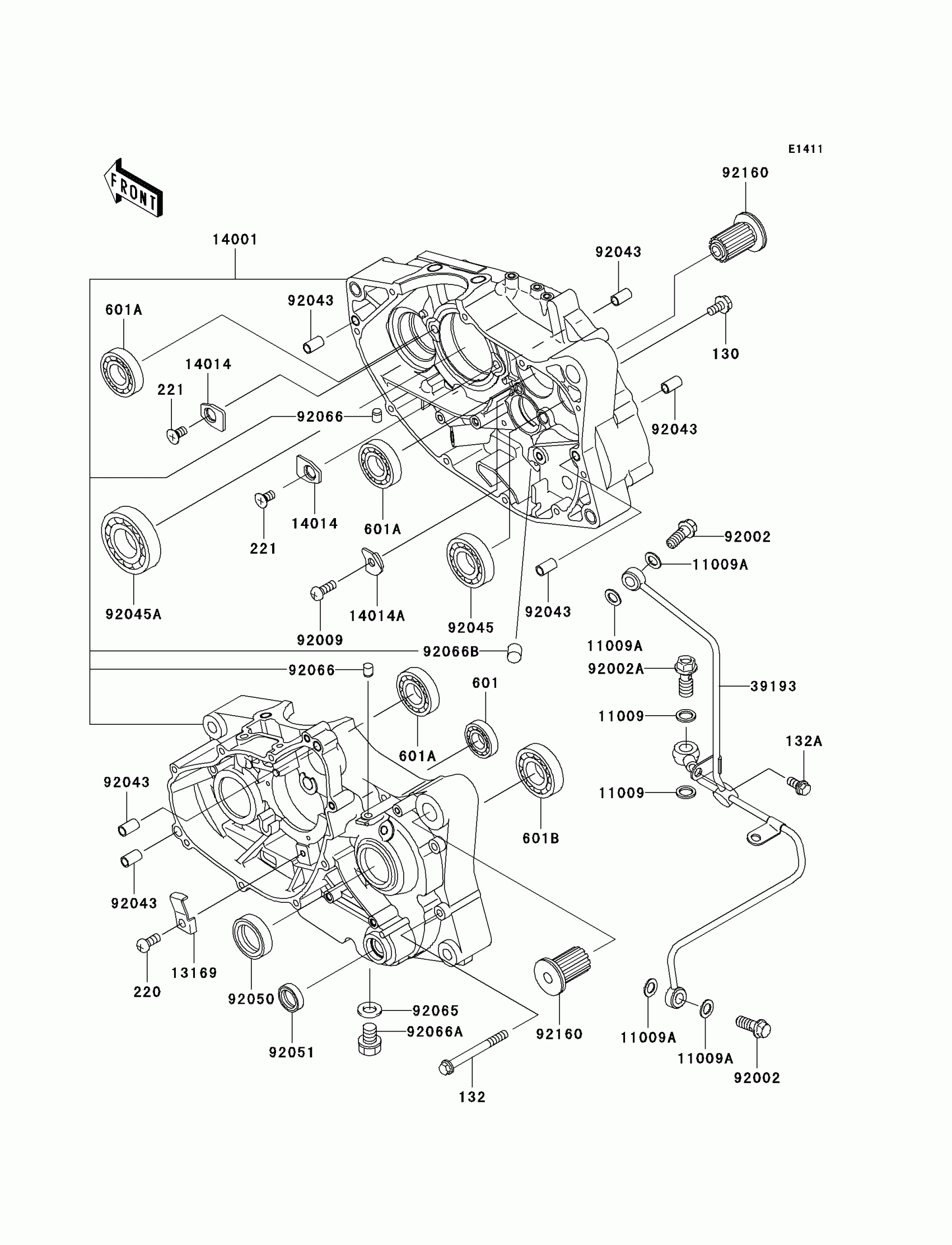

Kawasaki Eliminator 125 Crankcase Diagram

#

Description
Price

130

BOLT-FLANGED,6X12

130J0612

Unavailable

132

BOLT-FLANGED-SMALL

132V0660

Unavailable

132A

BOLT-FLANGED-SMALL,6X12

132Y0612

Unavailable

220

SCREW-PAN-CROS,6X14

220B0614

$1.14

221

SCREW-CSK-CROS,6X12

221B0612

$1.49

601

BEARING-BALL

601A6202Z

$17.27

601A

BEARING-BALL,#6204

601A6204

$12.07

601B

BEARING-BALL

601A6304Z

$18.80

11009

GASKET,10X14.5X1.5

11009-1105

$4.88

11009A

GASKET,8.2X14X1.0

11009-1344

$2.11

13169

PLATE

13169-1691

$4.58

14001

SET-CRANKCASE

14001-1271

$239.83

14014

PLATE-POSITION

14014-1057

$4.17

14014A

PLATE-POSITION,DRUM

14014-1113

$3.15

39193

PIPE-OIL

39193-1025

$96.80

92002

BOLT,BANJO,8X20

92002-1618

$10.59

92002A

BOLT,OIL,L=23

92002-1975

$14.37

92009

SCREW-PAN-CROS,6X16

92009-1266

$3.85

92043

PIN,6.2X8X14

92043-1263

$0.46

92045

BEARING-BALL,6202X19

92045-1169

$16.05

92045A

BEARING-BALL

92045-1420

$40.84

92050

SEAL-OIL,SC25376

92050-013

$10.80

92051

SEAL-OIL,TB13225.5

92051-005

$5.91

92065

GASKET,12X22X2

92065-097

$0.66

92066

PLUG,OIL LINE,7.2X8

92066-1012

$4.65

92066A

PLUG,OIL DRAIN,12X15

92066-1174

$4.64

92066B

PLUG,10.5MM

92066-1355

$5.37

92160

DAMPER

92160-1423

$20.81
