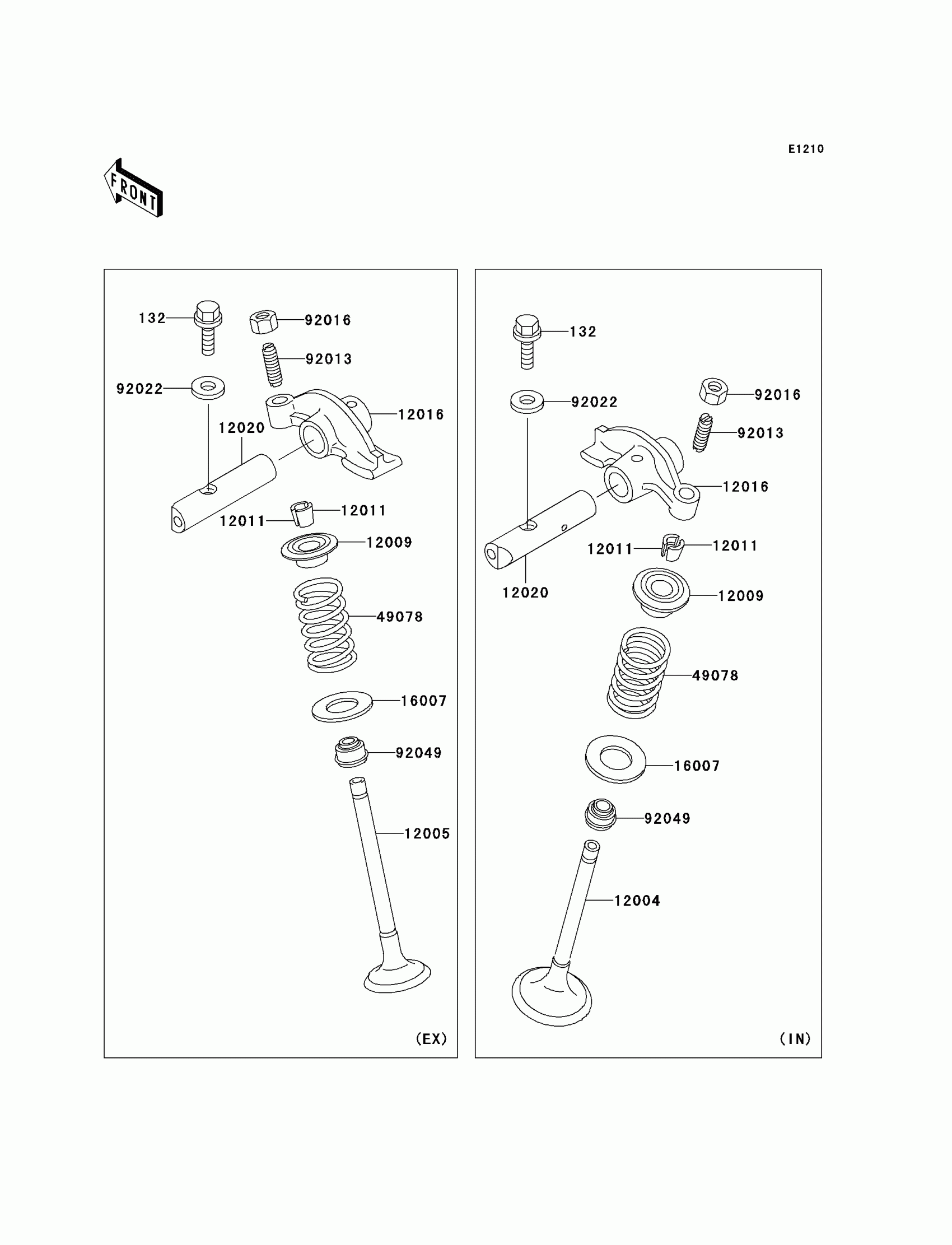

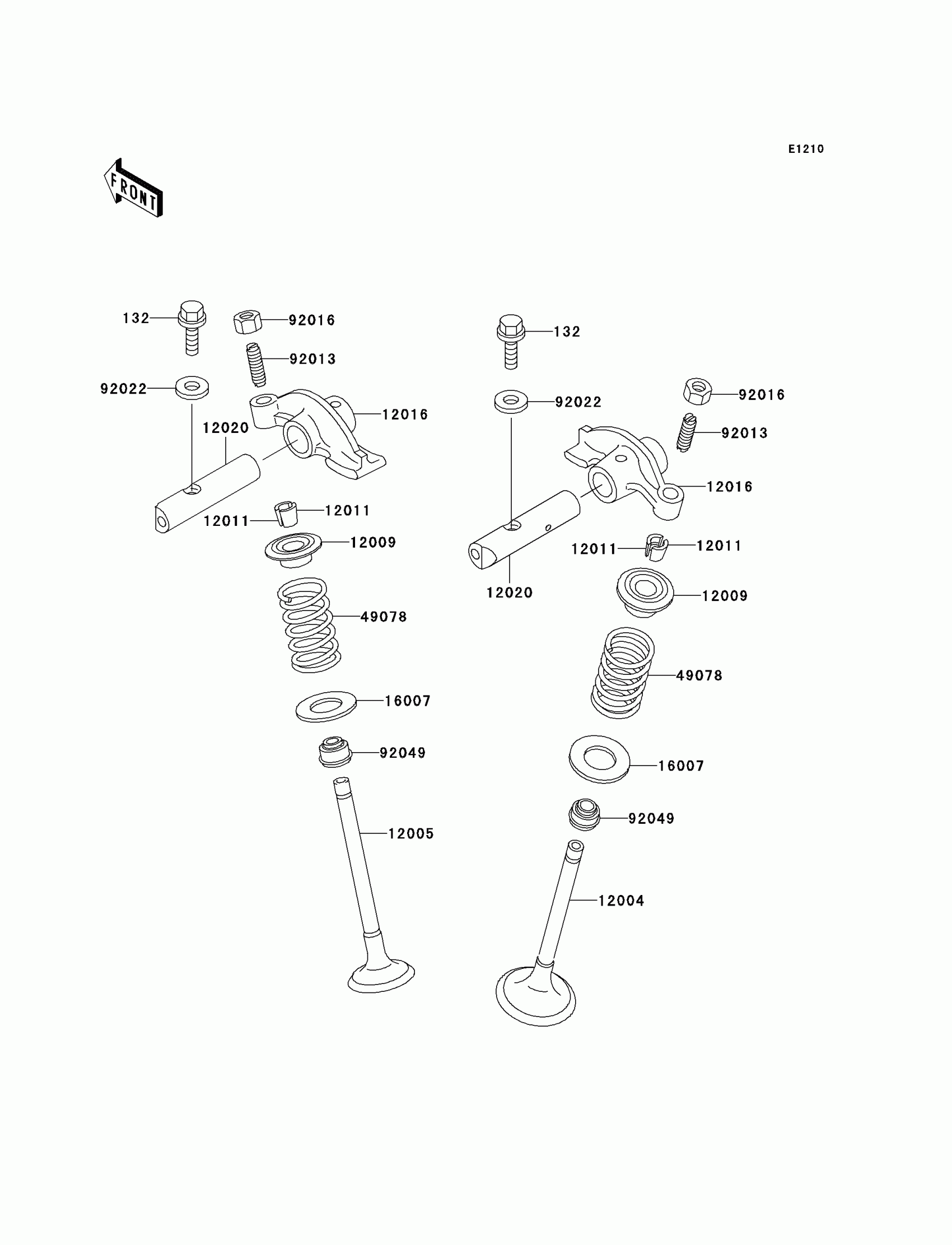

Kawasaki Eliminator 125 Valve(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL

132V0625

Unavailable

12004

VALVE-INTAKE

12004-1134

$40.16

12005

VALVE-EXHAUST

12005-1262

$66.16

12009

RETAINER-VALVE SPRING,INTAKE

12009-1074

$11.76

12011

COLLET

12011-1053

$4.14

12016

ARM-ROCKER

12016-1115

$81.42

12020

SHAFT-ROCKER

12020-1074

$18.14

16007

SEAT-SPRING

16007-1159

$3.95

49078

SPRING-ENGINE VALVE

49078-1152

Unavailable

92013

SCREW,6MM

92013-009

$4.93

92016

NUT,6MM

92016-061

$3.57

92022

WASHER OIL PUMP BANJO

92022-077

$2.84

92049

SEAL-OIL,VSB 4.3 7.5 5.3 8.3

92049-1349

$8.77
