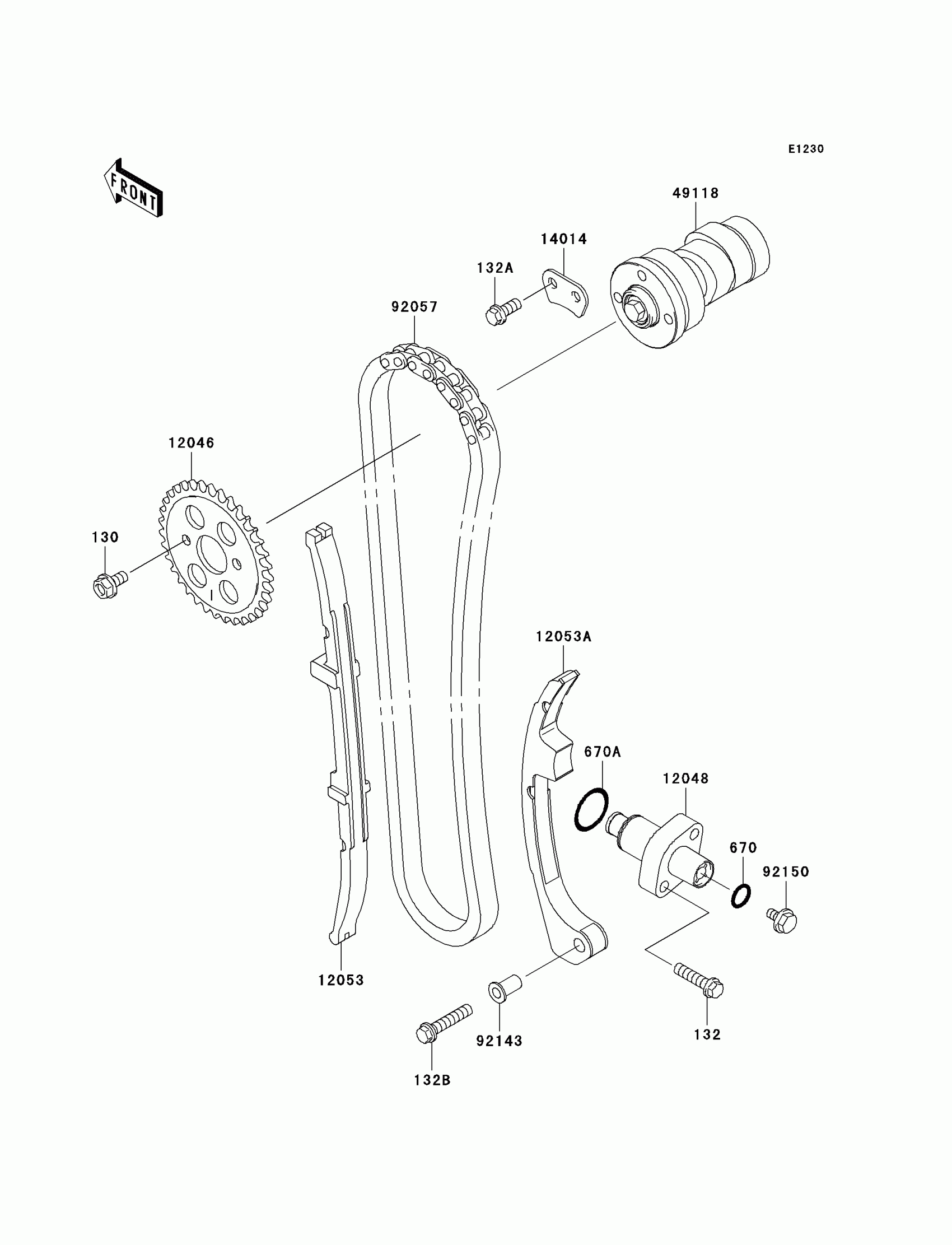

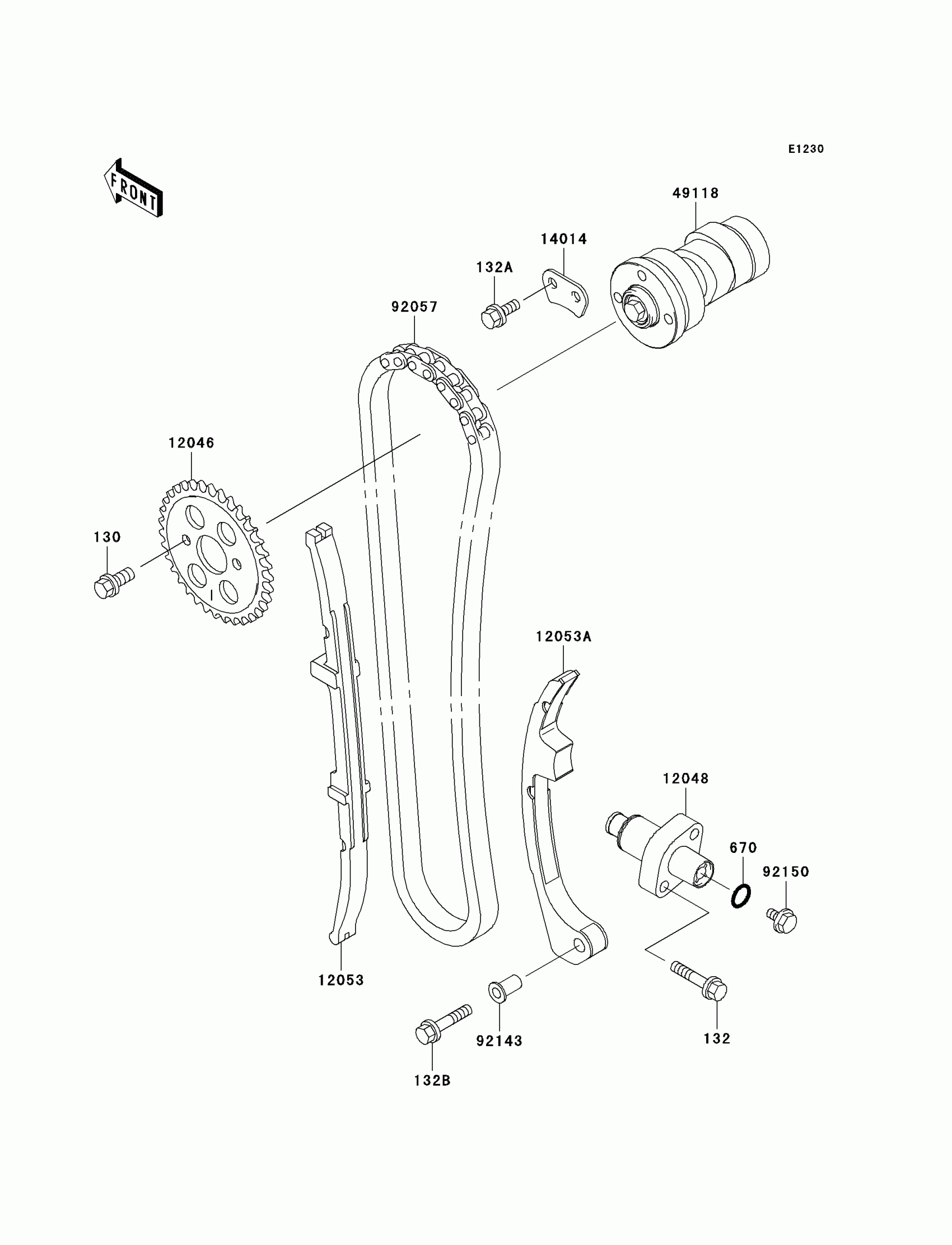

Kawasaki Eliminator 125 Camshaft(s)/Tensioner Diagram

Description

Price

130

BOLT-FLANGED

130S0612

Unavailable

132

BOLT-FLANGED-SMALL

132V0625

Unavailable

132A

BOLT-FLANGED-SMALL,6X14

132Y0614

Unavailable

132B

BOLT-FLANGED-SMALL,6X30

132Y0630

Unavailable

670

O RING,10MM

670D2010

$1.41

12046

SPROCKET

12046-1192

$34.60

12048

TENSIONER-ASSY

12048-1169

$91.23

12053

GUIDE-CHAIN,FR

12053-1383

$39.49

12053A

GUIDE-CHAIN,RR

12053-1421

$38.30

14014

PLATE-POSITION

14014-1095

$4.85

49118

CAMSHAFT-COMP

49118-1200

$185.74

92057

CHAIN,CAM,92RH2010-102M

92057-1457

$43.50

92143

COLLAR

92143-1857

$2.59

92150

BOLT,TENSIONER

92150-1381

$6.25
