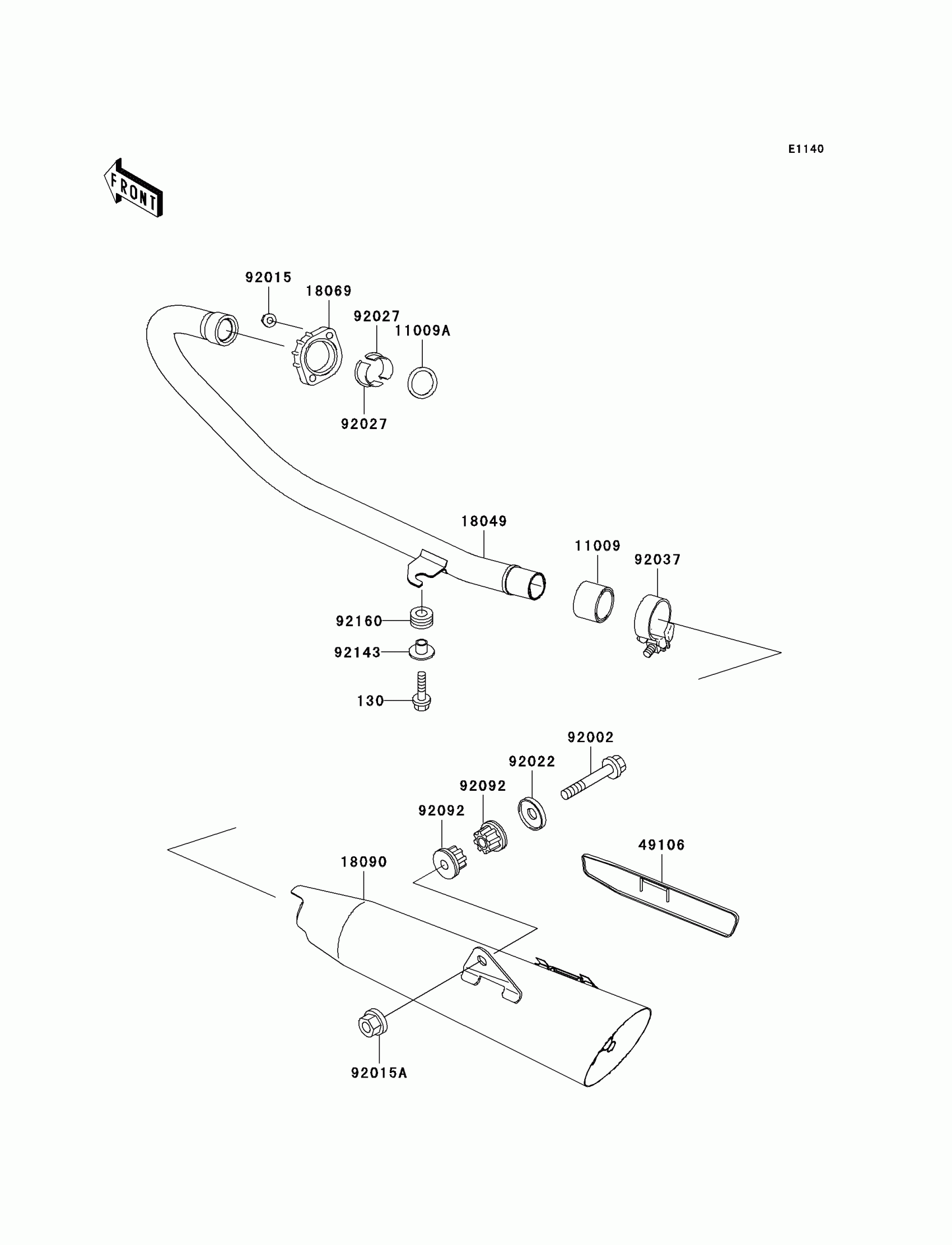

Kawasaki Eliminator 125 Muffler(s) Diagram

Description

Price

130

BOLT-FLANGED,6X22,BLACK

130J0622

Unavailable

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1667

$18.50

11009A

GASKET,EXHAUST PIPE H

11009-1866

$6.29

18049

PIPE-EXHAUST

18049-1890

$167.70

18069

HOLDER-EXHAUST PIPE

18069-1014

$14.19

18090

BODY-COMP-MUFFLER

18090-1868

$315.75

49106

COVER-MUFFLER

49106-1239

$13.17

92002

BOLT,10X55

92002-1826

$8.71

92015

NUT,CAP,8MM

92015-1371

$3.81

92015A

NUT,FLANGED,10MM

92015-1387

$3.29

92022

WASHER

92022-289

$12.40

92027

COLLAR,L=14.5

92027-1142

$3.81

92037

CLAMP,42MM

92037-1349

$9.84

92092

BUSHING-RUBBER,MUFFLER

92092-1013

$13.15

92143

COLLAR

92143-1353

$6.54

92160

DAMPER

92160-1895

$2.49
