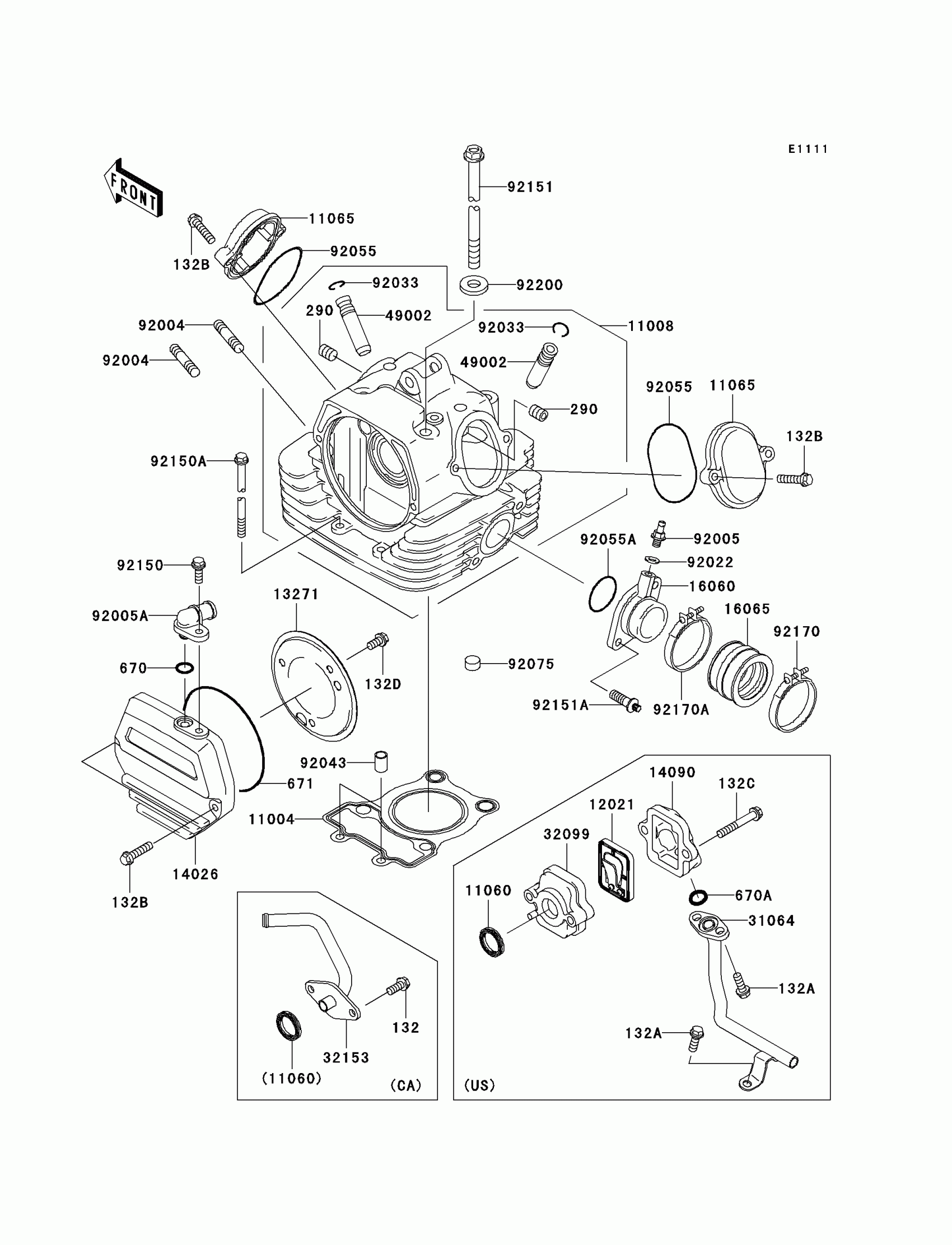

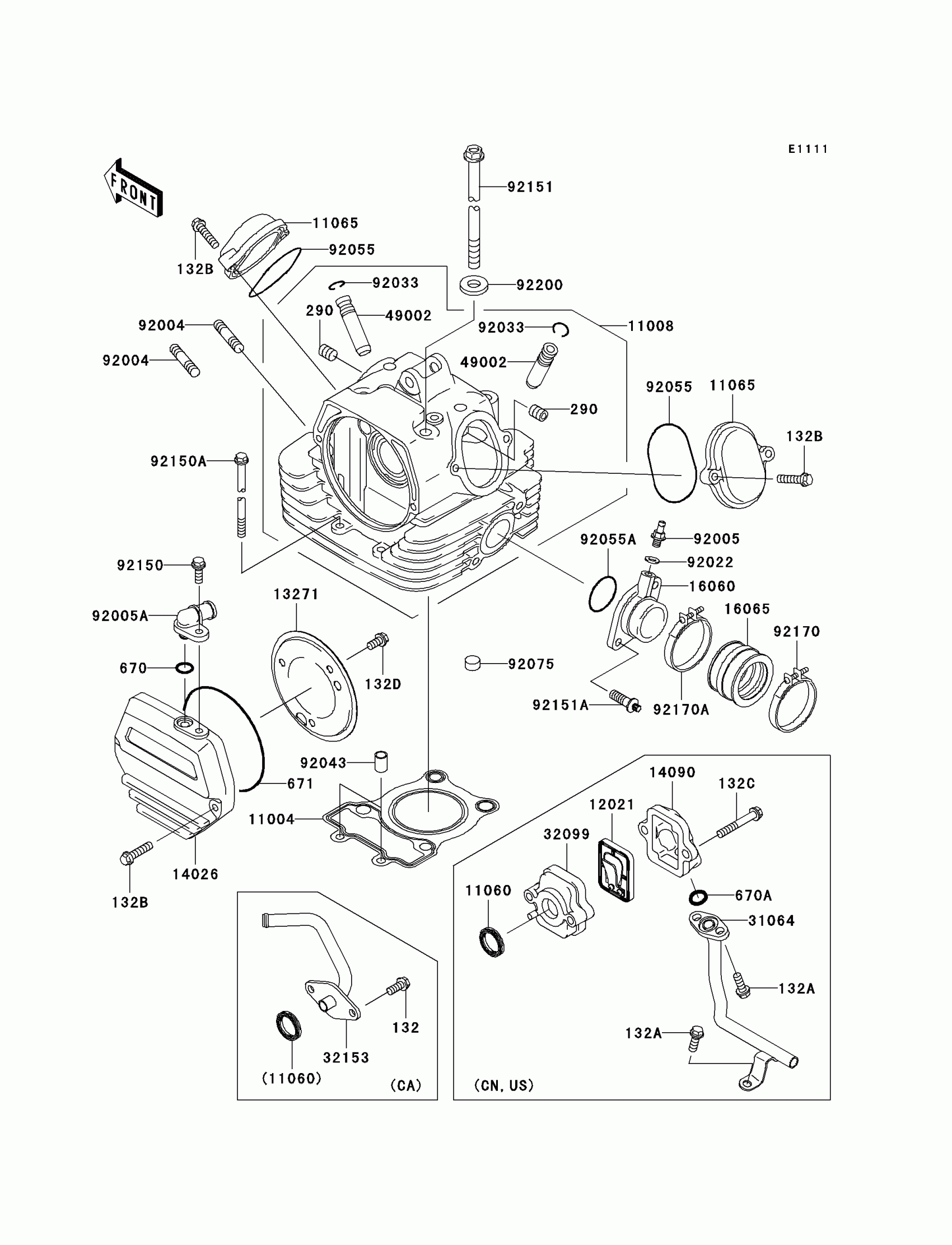

Kawasaki Eliminator 125 Cylinder Head Diagram

#

Description
Price

132B

BOLT-FLANGED-SMALL

132V0625

Unavailable

11004

GASKET-HEAD

11004-1335

$34.58

11008

HEAD-COMP-CYLINDER

11008-1384

$543.82

11060

GASKET,REED VALVE

11060-1815

$7.44

11065

CAP,ROCKER CASE

11065-1071

Unavailable

13271

PLATE,BREATHER

13271-1109

$11.08

14026

COVER-CHAIN,CAM SPROCKET

14026-1256

$33.49

16060

PIPE-INTAKE

16060-1084

$11.59

16065

HOLDER-CARBURETOR

16065-1335

$14.51

49002

GUIDE-VALVE

49002-1116

Unavailable

92004

STUD,8X30

92004-1121

$4.14

92005

FITTING,BLEED PIPE

92005-1337

$22.37

92005A

FITTING,BREATHER

92005-1342

$34.92

92022

WASHER OIL PUMP BANJO

92022-077

$2.84

92033

RING-SNAP

92033-1247

$2.98

92043

PIN,10.1X12X14

92043-4009

$4.67

92055

RING-O,53.5X2.6

92055-112

$4.97

92055A

RING-O,32MM

92055-1256

$9.95

92075

DAMPER

92075-1089

$7.95

92150

BOLT,FLANGED,6X16

92150-1394

$3.59

92150A

BOLT,6X110

92150-1986

Unavailable

92151

BOLT,9X228.5

92151-1092

$10.39

92151A

BOLT,6X18

92151-1726

$4.39

92170

CLAMP,CARBURETOR HOLDER

92170-1094

$11.83

92170A

CLAMP,43MM

92170-1527

$16.93

92200

WASHER,9.5X18X1.2

92200-1037

$3.59

132D

BOLT-FLANGED-SMALL,6X12

132Y0612

Unavailable

290

SCREW-SET-SOCKET,6X6

290Q0606

$5.54

670

O RING,9.8X1.9

670B1510

$3.29

671

O RING

671E2595

$5.29

132

BOLT-FLANGED-SMALL

132V0614

Unavailable

132A

BOLT-FLANGED-SMALL,6X16

132V0616

Unavailable

132C

BOLT-FLANGED-SMALL

132V0640

Unavailable

12021

VALVE-ASSY-REED

12021-1102

$69.83

14090

COVER,REED VALVE

14090-1852

$25.88

31064

PIPE-COMP

31064-1205

$97.50

32099

CASE,REED VALVE

32099-1187

$30.55

32153

PIPE

32153-1560

$60.13

670A

O RING,10MM

670B2010

$1.13
