2012 Kawasaki Edge R Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 2012 Kawasaki Edge R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

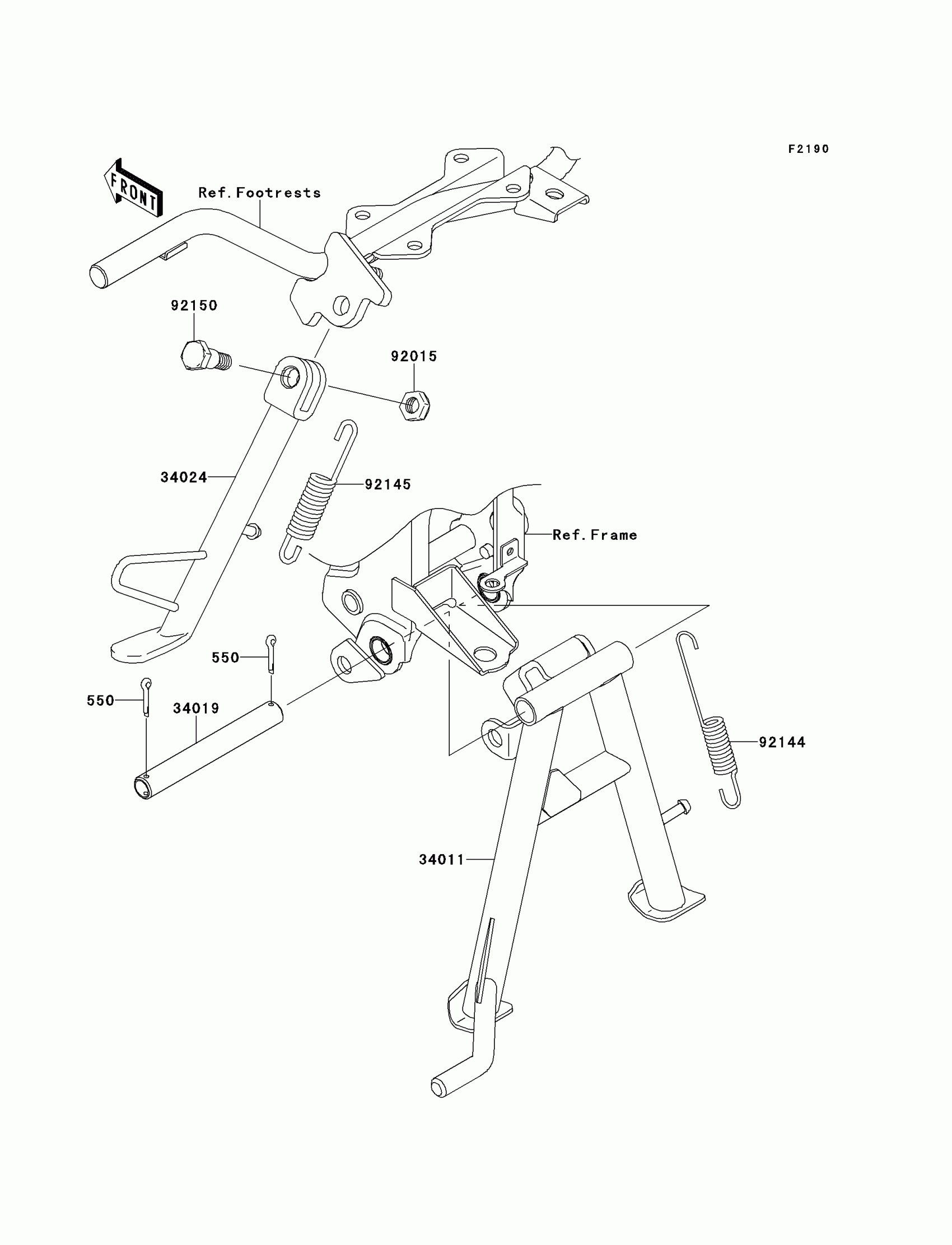

2012 Kawasaki Edge R Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

550

PIN-COTTER,3.0X30

550AA3030

1

$2.08

In stock

34011

STAND-CENTER

34011-0059

1

$79.90

In stock

34019

SHAFT-STAND,CENTER

34019-0002

1

$4.85

In stock

34024

STAND-SIDE

34024-0104

1

$30.94

In stock

92015

NUT,LOCK,10MM

92015-1962

1

$4.83

In stock

92144

SPRING,CENTER STAND

92144-1385

1

$1.34

In stock

92145

SPRING,STAND

92145-0106

1

$6.03

In stock

92150

BOLT,SIDE STAND

92150-1545

1

$5.76

In stock
