2012 Kawasaki Edge R Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2012 Kawasaki Edge R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

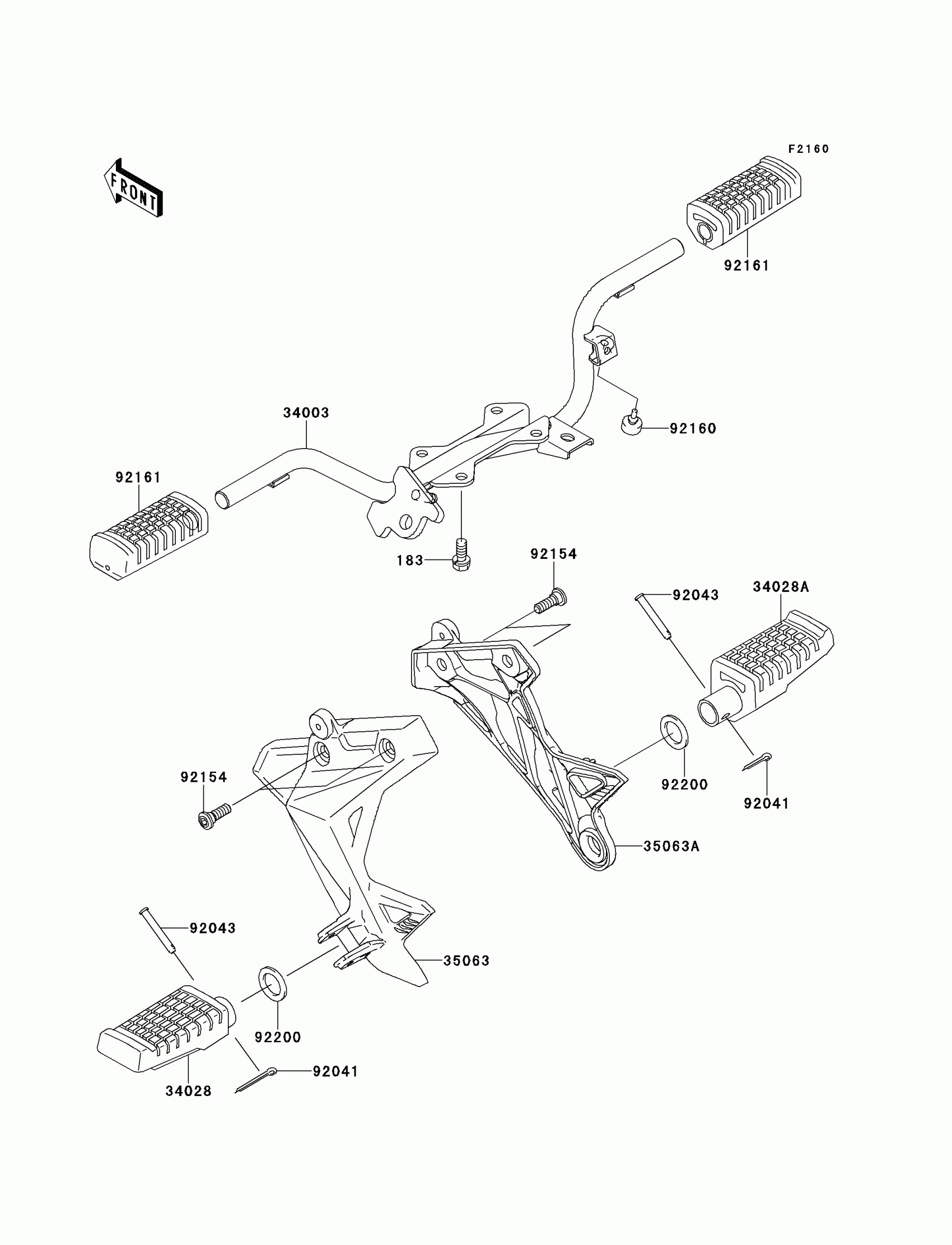

2012 Kawasaki Edge R Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

183

1

$3.29

In stock

34003

HOLDER-STEP,FR

34003-0123

1

$76.70

In stock

34028

STEP,RR,LH

34028-0155

1

$12.81

In stock

34028A

STEP,RR,RH

34028-0156

1

$12.81

In stock

35063

STAY,RR,LH,P.SILVER

35063-0638-458

1

$39.46

In stock

35063A

STAY,RR,RH,P.SILVER

35063-0639-458

1

$39.46

In stock

92041

COTTER,2.0X15

92041-0008

1

$1.53

In stock

92043

PIN,6X37

92043-0045

1

$2.19

In stock

92154

BOLT,SOCKET,8X25

92154-0194

1

$1.47

In stock

92160

1

$1.03

In stock

92161

DAMPER,STEP RUBBER

92161-1251

1

$3.12

In stock

92200

WASHER,20X30X2.3

92200-0732

1
Out of stock
