2012 Kawasaki Edge R Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2012 Kawasaki Edge R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

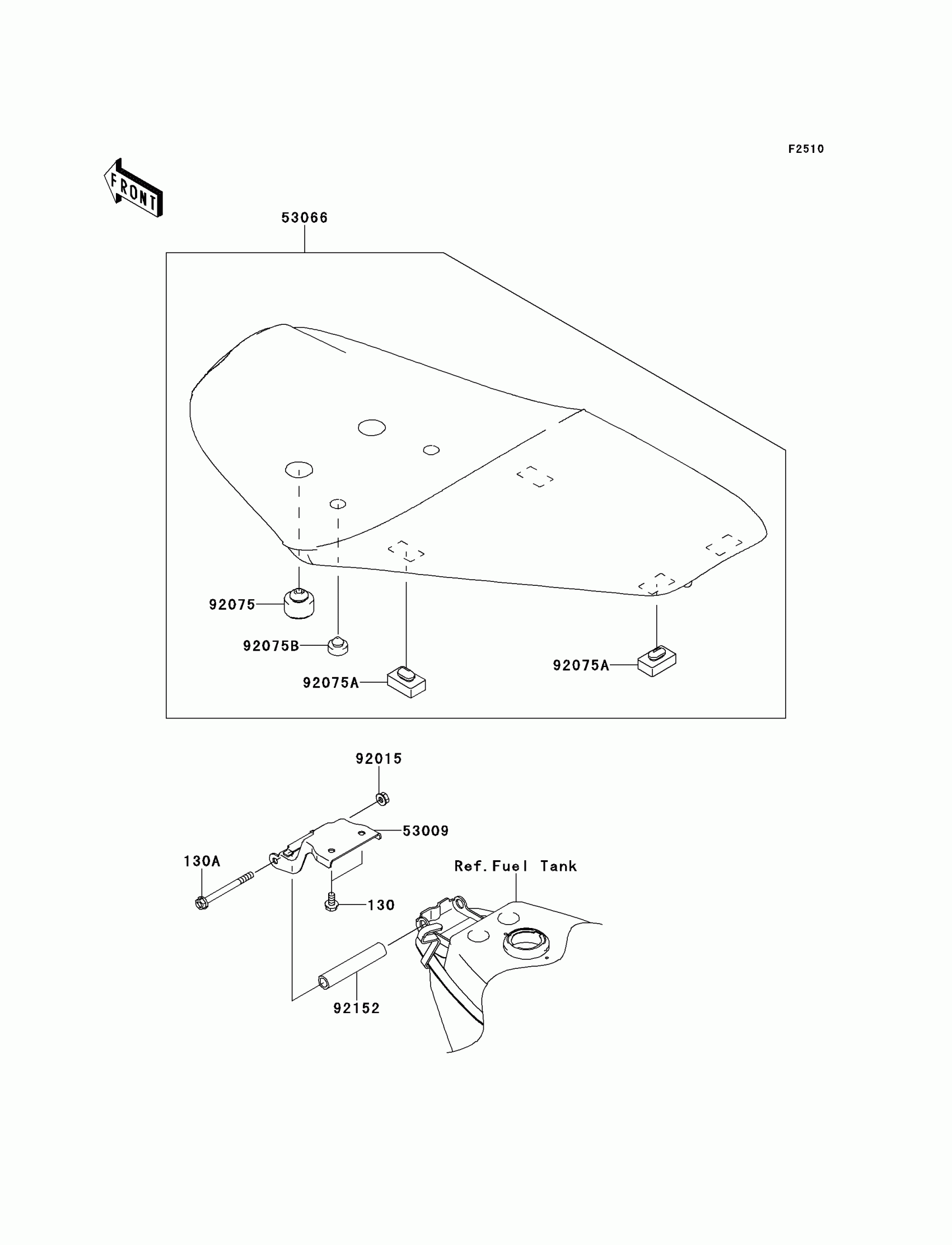

2012 Kawasaki Edge R Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

130A

BOLT-FLANGED,6X70

130BA0670

1

$3.65

In stock

53009

HINGE

53009-0304

1

$4.42

In stock

53066

SEAT-ASSY,BLACK

53066-0340-MA

1

$278.43

In stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92075

DAMPER

92075-015

1

$3.97

In stock

92075A

DAMPER

92075-099

1

$4.37

In stock

92075B

DAMPER,10X20X8

92075-1927

1

$3.49

In stock

92152

COLLAR,6.8X10X55.8

92152-1374

1

$0.98

In stock
