2012 Kawasaki Edge R Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 2012 Kawasaki Edge R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

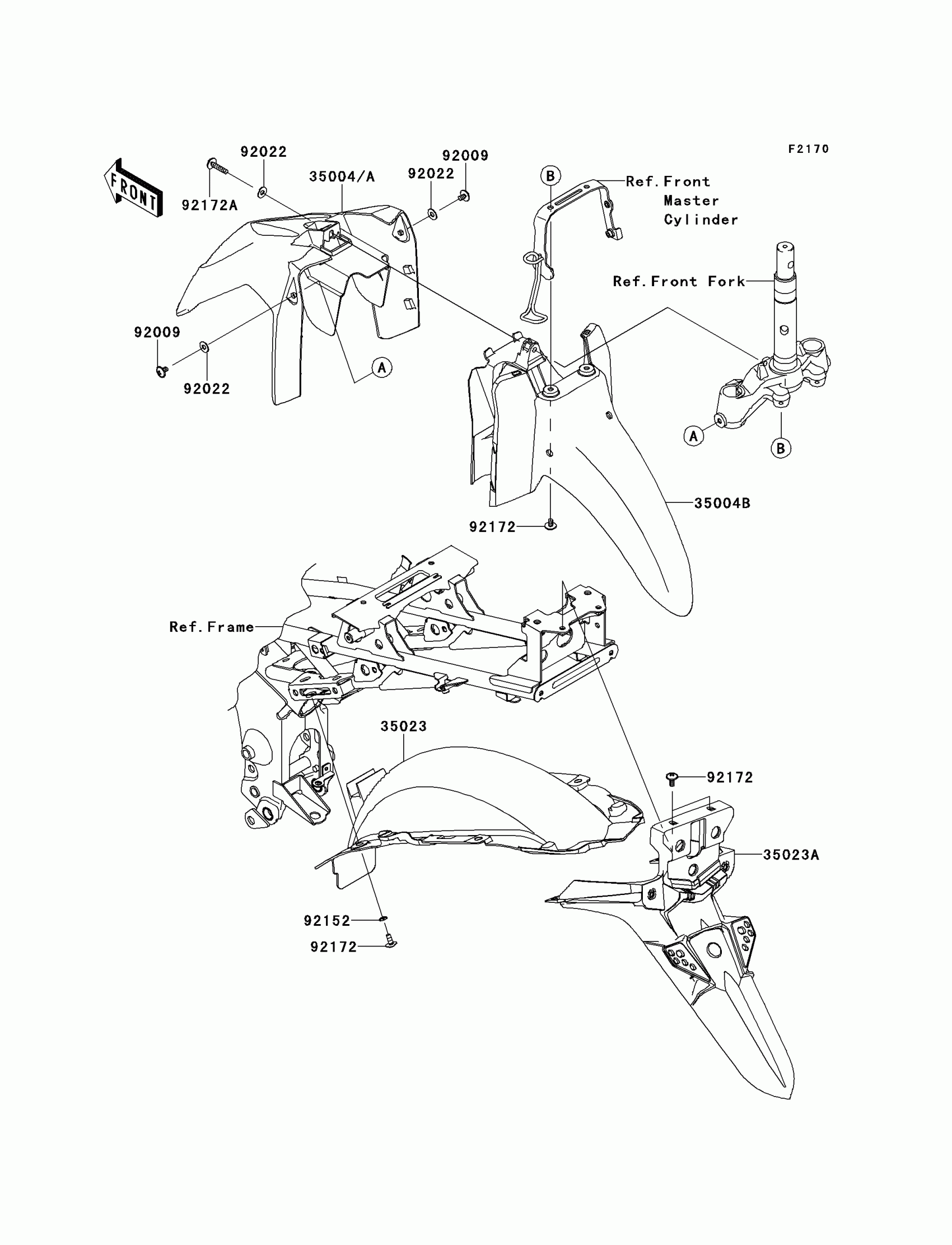

2012 Kawasaki Edge R Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004

FENDER-FRONT,FR,EBONY

35004-0126-20A

1
Out of stock

35004B

FENDER-FRONT,RR,F.BLACK

35004-0127-6Z

1

$8.36

In stock

35023

FENDER-REAR,FR,F.BLACK

35023-0165-6Z

1

$10.46

In stock

35023A

FENDER-REAR,RR,F.BLACK

35023-0166-6Z

1

$8.32

In stock

92009

SCREW,6X10

92009-1729

1
Out of stock

92022

WASHER,6.5X16X1

92022-1143

1

$3.12

In stock

92152

COLLAR,6.4X8X3.3

92152-0813

1

$0.85

In stock

92172

SCREW,6X14

92172-0055

1

$0.44

In stock

92172A

SCREW,6X28

92172-0348

1

$2.15

In stock
