2012 Kawasaki Edge R Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2012 Kawasaki Edge R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

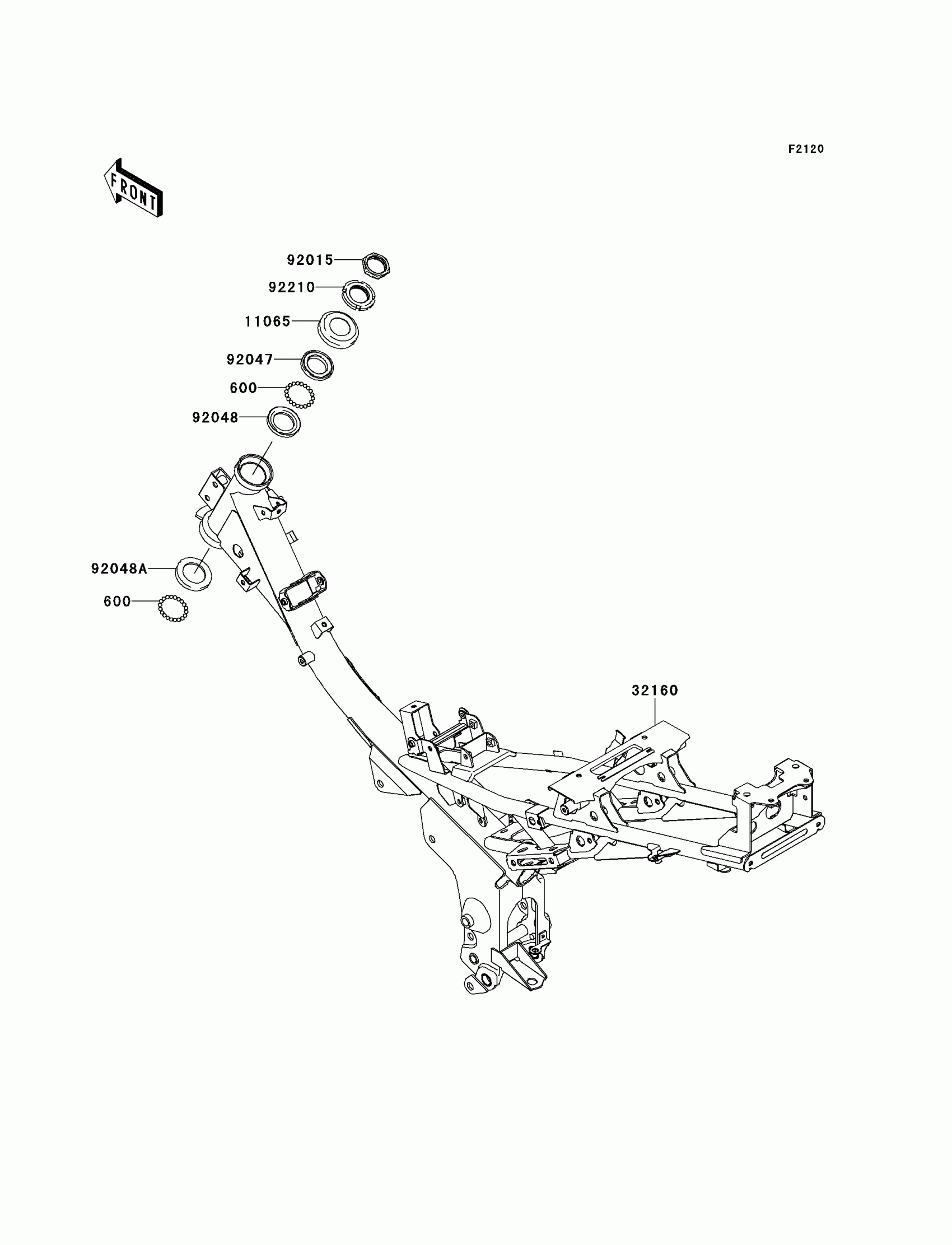

2012 Kawasaki Edge R Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

600

BALL-STEEL,1/4

600A0800

1

$0.67

In stock

11065

CAP,STEERING STEM

11065-0352

1
Out of stock

32160

FRAME-COMP

32160-0609

1

$636.00

In stock

92015

NUT,30MM

92015-1901

1

$7.56

In stock

92047

RACE,STEERING STEM BEARING

92047-011

1
Out of stock

92048

RACE,STEERING STEM BEARING

92048-006

1
Out of stock

92048A

RACE,STEERING STEM BEARING

92048-008

1
Out of stock

92210

NUT,STEERING STEM,30MM

92210-1378

1
Out of stock
