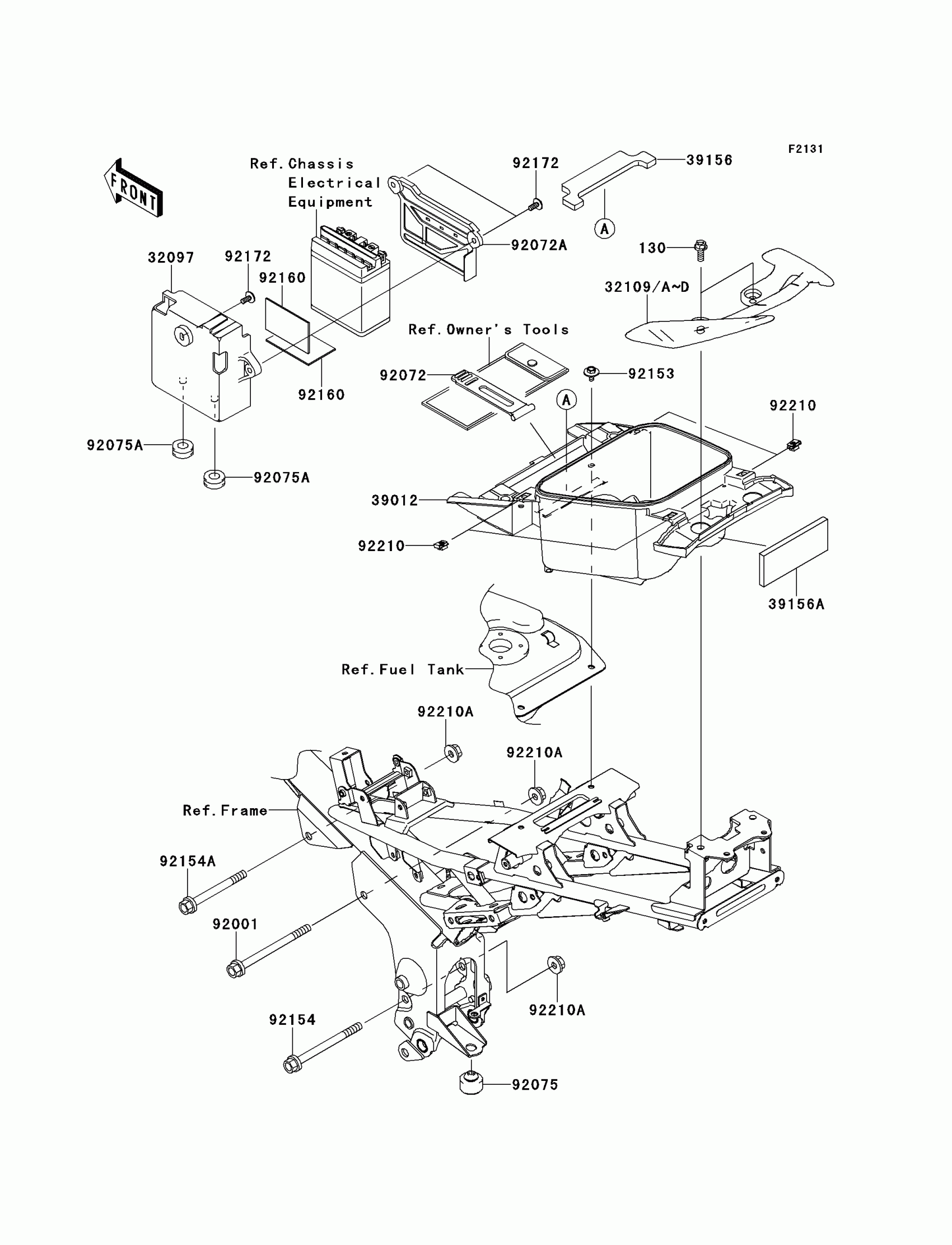

Find the part on the Frame Fittings diagram for your 2012 Kawasaki Edge R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Edge R Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X20

130BA0820

1

$3.27

In stock

32097

CASE-BATTERY

32097-1169

1

$7.44

In stock

32109

GRIP-FRAME,C.P.BLUE

32109-0026-20D

1
Out of stock

32109B

GRIP-FRAME,C.L.GREEN

32109-0026-21Q

1
Out of stock

39012

CASE-STORAGE

39012-0029

1

$19.47

In stock

39156

PAD

39156-0601

1

$1.73

In stock

39156A

PAD,AIR CLEANER

39156-1696

1

$1.64

In stock

92001

BOLT,FLANGED,10X130

92001-1604

1

$7.29

In stock

92072

BAND,TOOL

92072-0056

1

$1.93

In stock

92072A

BAND,BATTERY

92072-1345

1

$4.93

In stock

92075

DAMPER

92075-015

1

$3.97

In stock

92075A

DAMPER RUBBER

92075-051

1

$2.34

In stock

92153

BOLT,6X14

92153-0819

1
Out of stock

92154

BOLT,FLANGED,10X120

92154-0408

1

$1.63

In stock

92154A

BOLT,FLANGED,10X100

92154-0754

1

$4.39

In stock

92160

DAMPER,BATTERY

92160-1292

1

$1.39

In stock

92172

SCREW,6X14

92172-0055

1

$0.44

In stock

92210

NUT,PLATE,5MM

92210-0262

1
Out of stock

92210A

NUT

92210-0607

1
Out of stock
