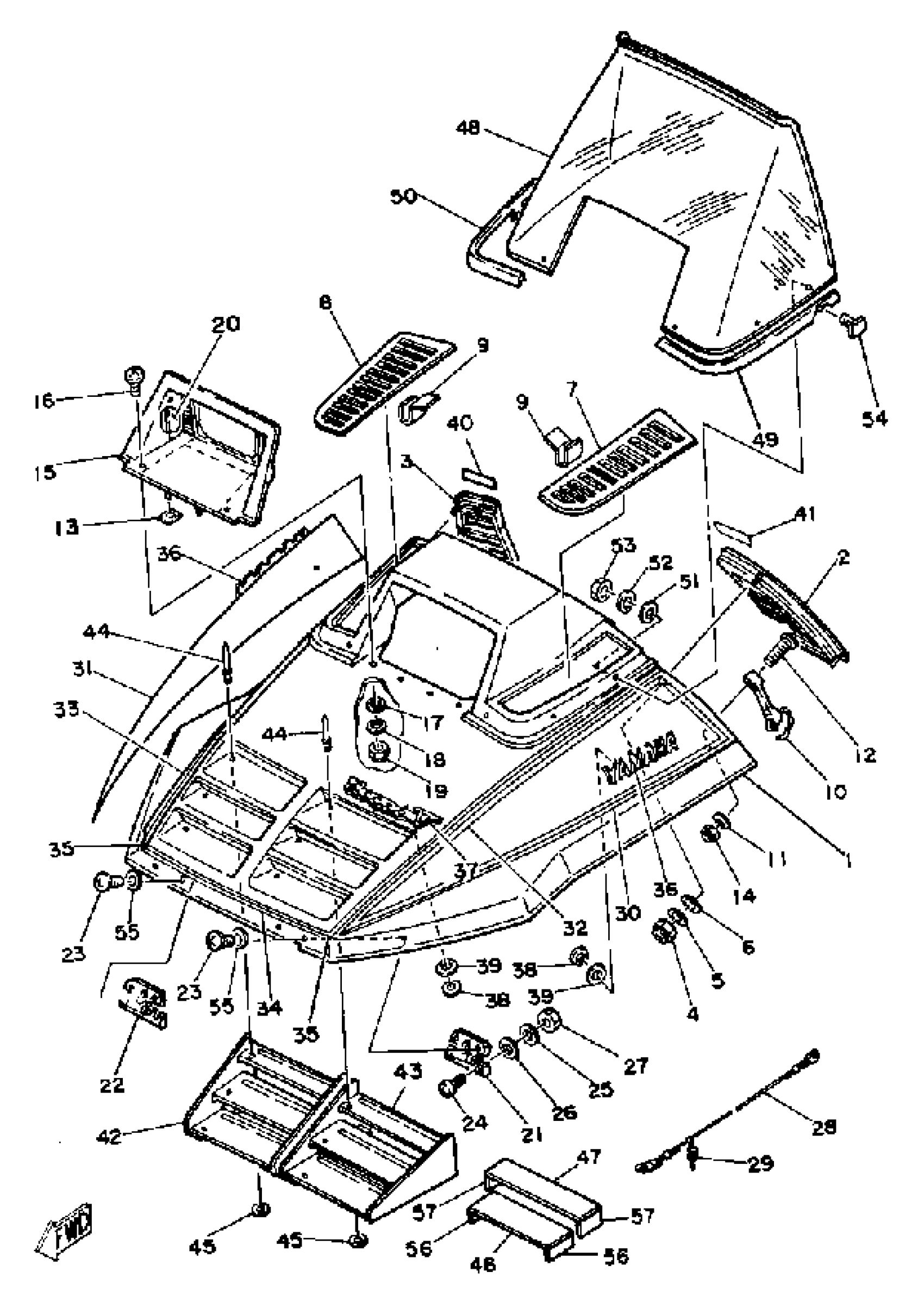

Find the part on the Shroud EC540C diagram for your 1979 Yamaha EC540C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha EC540C Shroud EC540C Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD ASSEMBLY

8K1-W7711-00-00

1
Out of stock

2

LOUVER 1

8H8-77131-00-00

1
Out of stock

3

LOUVER 2

8H8-77132-01-00

1
Out of stock

4

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

WASHER, PLATE 8067717800

90201-05029-00

1

$5.12

In stock

7

LOUVER 3

8H8-77133-00-00

1
Out of stock

8

LOUVER 4

8H8-77134-00-00

1
Out of stock

9

CLIP

90468-05094-00

1
Out of stock

10

LATCH ASSEMBLY

8K1-77170-00-00

1
Out of stock

11

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

12

SCREW, BINDING

98907-06030-00

1

$5.94

In stock

13

NUT, SPRING (1L9)

90183-04012-00

1
Out of stock

14

NUT, NYLON

95707-06300-00

1

$3.20

In stock

15

BODY, HEADLIGHT

8H8-84311-00-00

1
Out of stock

16

SCREW, BINDING

98907-05020-00

—

$6.18

In stock

17

WASHER, PLAIN (3GDF)

90201-051K1-00

—

$6.46

In stock

18

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

19

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

20

INSULATOR

8H8-7712E-00-00

1
Out of stock

21

HINGE ASSEMBLY

8H8-77140-00-00

1
Out of stock

22

HINGE ASSEMBLY 2

8H8-7714A-00-00

1
Out of stock

23

SCREW, BINDING

98907-06016-00

—

$7.14

In stock

24

SCREW, BINDING

98907-06020-00

—

$6.18

In stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

26

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

27

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

28

STOPPER, SHROUD

8A5-77118-00-00

1
Out of stock

29

CLAMP,ROD

838-77159-00-00

—

$3.49

In stock

30

ORNAMENT 1

(8H8-77163-00-00)

1
Out of stock

31

ORNAMENT 2

(8H8-77164-00-00)

1
Out of stock

32

STRIPE 1

(8H8-77281-00-00)

1
Out of stock

33

STRIPE 2

(8H8-77282-00-00)

1
Out of stock

34

STRIPE 4

(8H8-77284-00-00)

1
Out of stock

35

STRIPE 5

(8H8-77285-00-00)

1
Out of stock

36

EMBLEM 1

8H8-77141-00-00

1
Out of stock

37

EMBLEM 2

(8H8-77142-00-00)

1
Out of stock

38

NUT SPRING 116283170100

90183-04005-00

—

$0.74

In stock

39

WASHER PLATE 174283160000

90202-04003-00

—

$6.69

In stock

40

LABEL, SAFETY

288-21659-00-00

1
Out of stock

41

LABEL, WARNING 5

(8A5-77765-00-00)

1
Out of stock

42

LOUVER 5

8H8-77109-00-00

1
Out of stock

43

LOUVER 6

8H8-77108-00-00

1
Out of stock

44

RIVET, BLIND

(90267-48055-00)

1
Out of stock

45

WASHER, PLATE

90201-04027-00

—
Out of stock

46

DAMPER, NOISE 11

8H8-77271-00-00

1
Out of stock

47

DAMPER, NOISE 12

8H8-77272-00-00

1
Out of stock

48

WINDSHIELD

8N7-77210-00-00

1
Out of stock

49

TRIM, LOWER

8H8-77214-00-00

1
Out of stock

50

TRIM 3

8H8-77215-00-00

1
Out of stock

51

WASHER, PLATE 8067717800

90201-05029-00

1

$5.12

In stock

52

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

53

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

54

BOLT

90109-05523-00

1
Out of stock

55

WASHER(6TA)

92907-06200-00

—

$6.18

In stock

56

DAMPER, NOISE 14

8H8-77274-00-00

1
Out of stock

57

DAMPER, NOISE 14

8H8-77274-00-00

1
Out of stock
