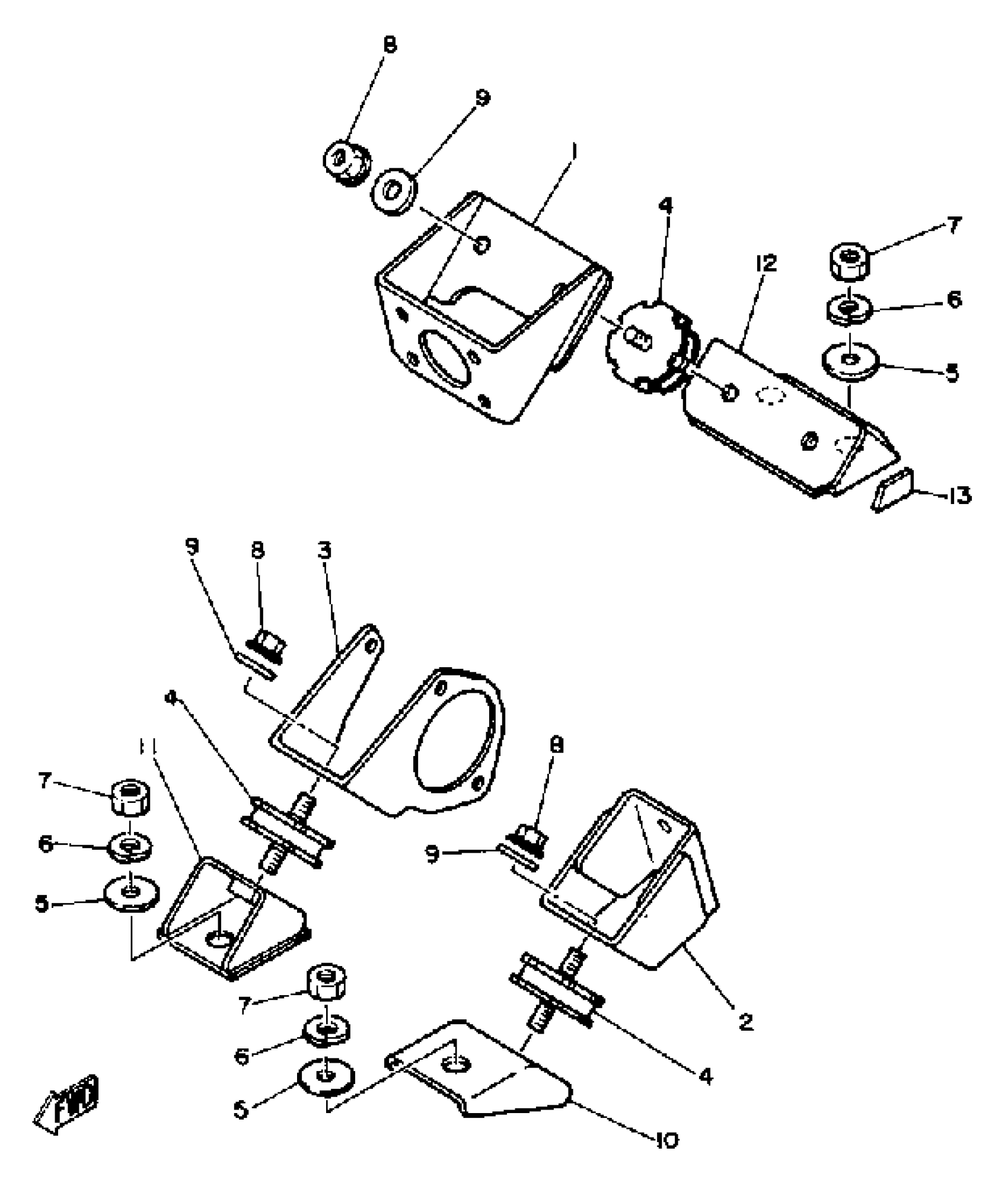

Yamaha EC540C 1979 ENGINE BRACKET EC540D Diagram

#

Description
Price

1

BRACKET, ENGINE 1

8H8-21411-01-00

Unavailable

2

BRACKET, ENGINE 2

8H8-21419-01-00

Unavailable

3

BRACKET, ENGINE 3

8H8-21429-01-00

Unavailable

4

DAMPER 2

8H8-21486-01-00

Unavailable

5

WASHER, PLATE (856)

90201-10321-00

$5.05

6

YBS67-10 WASHER, SPRING

92990-10100-00

$2.45

7

NUT, FLANGE(3BM)

95704-10500-00

$1.68

8

NUT(3BM)

95314-10600-00

$1.61

9

WASHER, PLATE

92990-10600-00

$2.57

10

BRACKET, FRONT LOWER 1

85L-21417-00-00

Unavailable

11

BRACKET, FRONT UNDER 2

8H8-21418-01-00

Unavailable

12

BRACKET, REAR UNDER 1

8H8-21427-00-00

Unavailable

13

SPACER

(8H8-21459-00-00)

Unavailable
