1979 Yamaha EC540C Crankcase EC540C - D Diagram

← All diagrams

Find the part on the Crankcase EC540C - D diagram for your 1979 Yamaha EC540C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

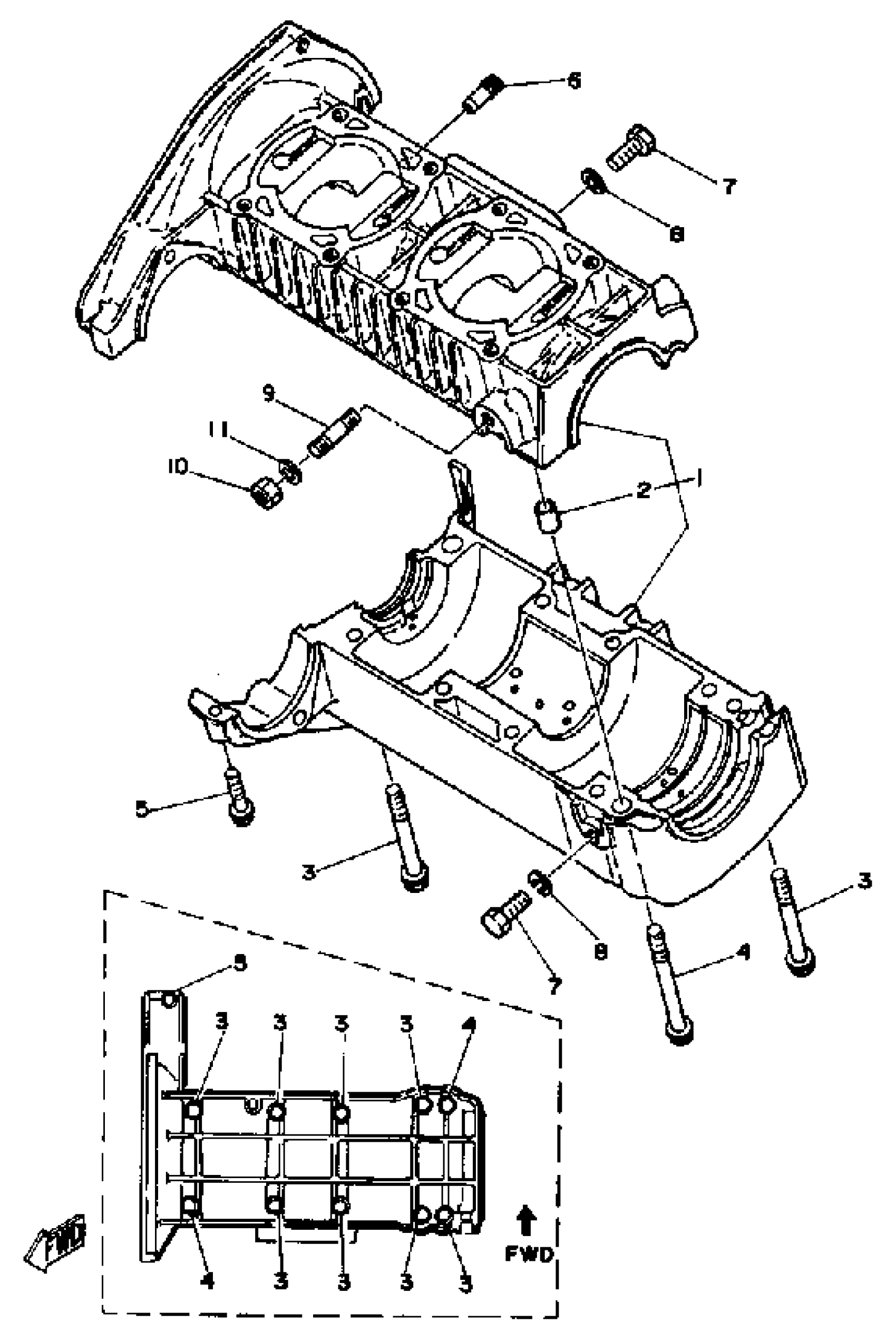

1979 Yamaha EC540C Crankcase EC540C - D Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

8H8-15109-08-00

—
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

BOLT, FLANGE

95817-08075-00

1

$3.37

In stock

4

BOLT, FLANGE(8BN)

95817-08085-00

1
Out of stock

5

BOLT, FLANGE

95817-06030-00

1

$3.91

In stock

6

JOINT, BREATHER

J38-11116-00-00

1

$2.77

In stock

7

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

8

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

9

BOLT, STUD 3

95617-08625-00

1

$2.75

In stock

10

NUT(6L2)

95333-08600-00

1

$3.20

In stock

11

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock
